PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

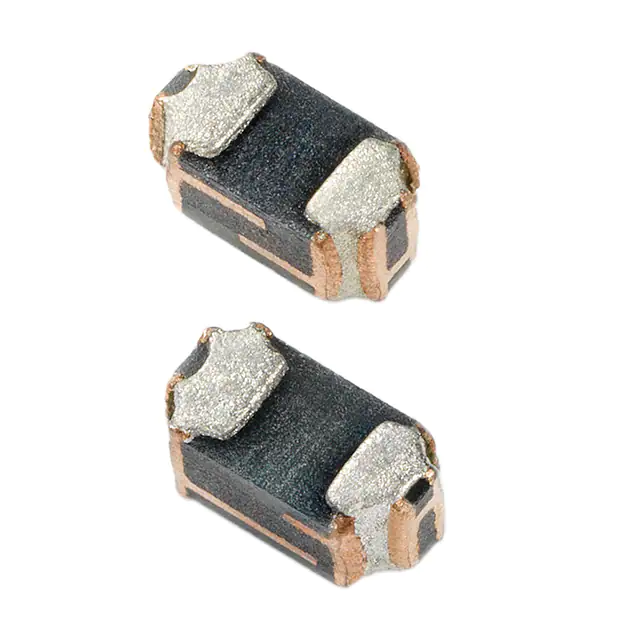

0402L035SLKRPTC RESET FUSE 6V 350MA 0402 |
12,070 |
|
Datasheet | 0402 (1005 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 700 mA | 50 A | 100 ms | 50 mOhms | 700 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|
1206L150/12SLYRPTC RESET FUSE 12V 1.5A 1206 |
6,600 |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 12V | 1.5 A | 3 A | 50 A | 300 ms | 10 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.033" (0.85mm) | - |
|
|
0402L010SLKRPTC RESET FUSE 6V 100MA 0402 |
13,494 |
|
Datasheet | 0402 (1005 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 100 mA | 300 mA | 40 A | 1 s | 150 mOhms | 2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|
2920L700/24SLERPTC RESET FUSE 7.0A 24V 2920 |
2,743 |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 24V | 7 A | 14 A | 50 A | 2 s | 1 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.079" (2.00mm) | - |
|
|
2920L500/24SLDRPTC RESET FUSE 5.0A 24V 2920 |
1,950 |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 24V | 5 A | 10 A | 50 A | 2 s | 1 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.079" (2.00mm) | - |
|
|
2920L600/24SLERPTC RESET FUSE 6.0A 24V 2920 |
5,159 |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 24V | 6 A | 12 A | 50 A | 2 s | 1 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.079" (2.00mm) | - |
|

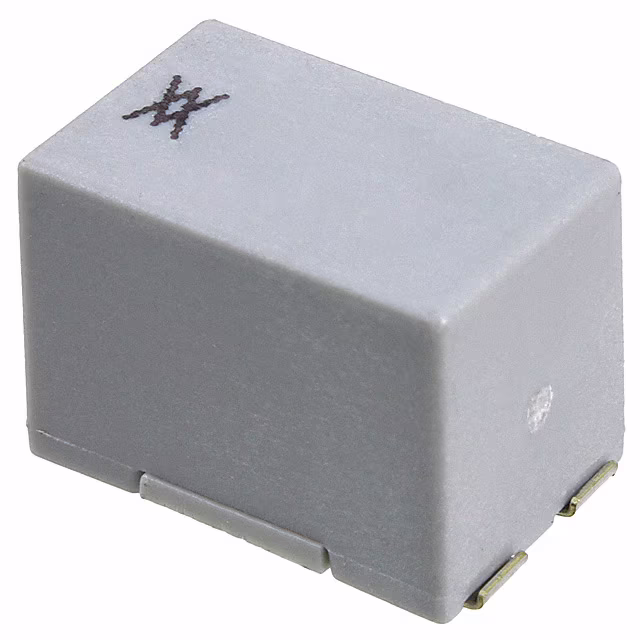

TSM600-250F-2PTC RESET FUSE 250V 250MA 4SMD |
1,111 |
|
Datasheet | 4-SMD | PolySwitch®, TSM | Tape & Reel (TR) | Active | Polymeric | 250V (600V Int) | 250 mA | 860 mA | 3 A | 6 s | 1 Ohms | 7 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.681" L x 0.425" W (17.30mm x 10.80mm) | - | 0.461" (11.70mm) | - |
|
BD280-1130-20/16PTC RESET FUSE 14V 16A BLADE |
1,451 |
|
Datasheet | Blade Type | PolySwitch®, BD280 | Bulk | Active | Polymeric | 14V | 16 A | 26 A | 100 A | 10 s | 2.8 Ohms | 6.4 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Holder | 1.193" L x 0.433" W (30.30mm x 11.00mm) | 0.262" (6.65mm) | - | - |
|
RXEF050SPTC RESET FUSE 72V 500MA RADIAL |
6,192 |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.118" T (7.90mm x 3.00mm) | 0.539" (13.70mm) | - | 0.199" (5.05mm) |
|
MINISMDC010F-2PTC RESET FUSE 60V 100MA 1812 |
88,893 |
|
Datasheet | 1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 60V | 100 mA | 300 mA | 40 A | 5 s | 700 mOhms | 12.7 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.89mm) | - |
|
RXEF017PTC RESET FUSE 60V 170MA RADIAL |
5,839 |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|
|
MINISMDC110F-2PTC RESET FUSE 8V 1.1A 1812 |
65,655 |
|
Datasheet | 1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.024" (0.62mm) | - |
|
MICROSMD175F-2PTC RESET FUSE 6V 1.75A 1210 |
57,769 |
|
Datasheet | 1210 (3225 Metric), Concave | PolySwitch®, microSMD | Tape & Reel (TR) | Active | Polymeric | 6V | 1.75 A | 3.5 A | 40 A | 800 ms | 25 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.030" (0.76mm) | - |
|
1210L035YRPTC RESET FUSE 6V 350MA 1210 |
12,362 |
|
Datasheet | 1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 700 mA | 100 A | 200 ms | 320 mOhms | 1.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
1206L010/30WRPTC RESET FUSE 30V 100MA 1206 |
65,616 |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 30V | 100 mA | 250 mA | 10 A | 1.5 s | 1.5 Ohms | 10 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | - | - |
|
|
RXEF017-2PTC RESET FUSE 60V 170MA RADIAL |
3,307 |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.200" (5.08mm) |
|
RUEF090PTC RESET FUSE 30V 900MA RADIAL |
12,704 |
|
Datasheet | Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 900 mA | 1.8 A | 100 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.199" (5.05mm) |
|
1812L110PRPTC RESET FUSE 8V 1.1A 1812 |
6,524 |
|
Datasheet | 1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.71mm) | - |
|
MINISMDC160F-2PTC RESET FUSE 9V 1.6A 1812 |
5,270 |
|
Datasheet | 1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 9V | 1.6 A | 3.2 A | 100 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.019" (0.48mm) | - |
|
RUSBF090-2PTC RESET FUSE 16V 900MA RADIAL |
4,328 |
|
Datasheet | Radial, Disc | PolySwitch®, RUSBF | Tape & Reel (TR) | Active | Polymeric | 16V | 900 mA | 1.8 A | 40 A | 1.2 s | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.480" (12.20mm) | - | 0.199" (5.05mm) |
