PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
600R150FPTC RESET FUSE 60V 150MA RADIAL |
762 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 600R | Bulk | Active | Polymeric | 60V (600V Int) | 150 mA | 300 mA | 3 A | 4 s | 6 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.201" (5.10mm) |
|
600R150ZRPTC RESET FUSE 60V 150MA RADIAL |
2,488 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 600R | Cut Tape (CT) | Active | Polymeric | 60V (600V Int) | 150 mA | 300 mA | 3 A | 4 s | 6 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.201" (5.10mm) |
|
RGEF1200PTC RESET FUSE 16V 12A RADIAL |
1,494 |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 12 A | 20.4 A | 100 A | 7.5 s | 3.3 mOhms | 8.6 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.670" L x 0.520" W (16.95mm x 2.90mm) | 1.102" (28.00mm) | - | 0.400" (10.15mm) |
|
RUEF800-2PTC RESET FUSE 30V 8A RADIAL |
12,184 |
|
Datasheet | Radial, Disc | PolySwitch®, RUEF | Tape & Reel (TR) | Active | Polymeric | 30V | 8 A | 16 A | 100 A | 18.8 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.850" L x 0.118" W (21.60mm x 3.00mm) | 1.118" (28.40mm) | - | 0.400" (10.15mm) |
|
30R600UFPTC RESET FUSE 30V 6A RADIAL |
5,637 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 30R | Bulk | Active | Polymeric | 30V | 6 A | 12 A | 40 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.055" (26.80mm) | - | 0.402" (10.20mm) |
|
2920L260/33DRPOLYSWITCH RESETTABLE PPTC |
754 |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 33V | 2.6 A | 5 A | 40 A | 15 s | 20 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.071" (1.80mm) | - |
|
FEMTOASMDC010F/15-2PTC RESET FUSE 15V 100MA 0603 |
783 |
|
Datasheet | 0603 (1608 Metric) | PolySwitch®, femtoASMD | Tape & Reel (TR) | Active | Polymeric | 15V | 100 mA | 300 mA | 10 A | 100 ms | 2 Ohms | 14 Ohms | - | - | Automotive | AEC-Q200 | AEC-Q200 | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.033" (0.85mm) | - |
|
60R135XFPTC RESET FUSE 60V 1.35A RADIAL |
547 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 60R | Bulk | Active | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.535" Dia x 0.122" T (13.58mm x 3.10mm) | 0.780" (19.80mm) | - | 0.201" (5.10mm) |
, Concave.jpg)
|
FEMTOSMDC020F-2PTC RESET FUSE 9V 200MA 0603 |
41,618 |
|
Datasheet | 0603 (1608 Metric), Concave | PolySwitch®, femtoSMDC | Tape & Reel (TR) | Active | Polymeric | 9V | 200 mA | 450 mA | 40 A | 100 ms | 700 mOhms | 3 Ohms | - | - | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.030" (0.75mm) | - |
|
72R160XFPTC RESET FUSE 72V 1.6A RADIAL |
11,096 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 72R | Bulk | Active | Polymeric | 72V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.600" Dia x 0.122" T (15.24mm x 3.10mm) | 0.850" (21.60mm) | - | 0.201" (5.10mm) |
|
TRF600-160PTC RESET FUSE 250V 160MA RADIAL |
765 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF600 | Bulk | Active | Polymeric | 250V (600V Int) | 160 mA | 320 mA | 60 A | 18 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.630" L x 0.236" W (16.00mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|

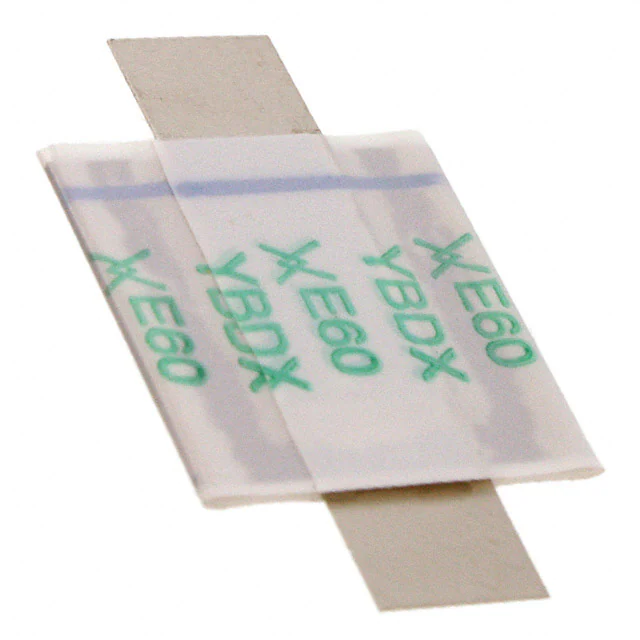

LR4-600FPTC RESET FUSE 20V 6A STRAP |
9,666 |
|
Datasheet | Strap | PolySwitch®, LR4 | Bag | Active | Polymeric | 20V | 6 A | 11.7 A | 100 A | 5 s | 7 mOhms | 19 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.559" W (25.00mm x 14.20mm) | - | 0.039" (1.00mm) | - |
|
RGEF1400PTC RESET FUSE 16V 14A RADIAL |
293 |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 14 A | 23.8 A | 100 A | 9 s | 2.6 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.925" L x 0.114" W (23.50mm x 2.90mm) | 1.102" (28.00mm) | - | 0.400" (10.15mm) |
|
LVR055KPTC RESET FUSE 240V 550MA RADIAL |
1,707 |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 550 mA | 1.25 A | 7 A | 26 s | 450 mOhms | 1.45 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.161" W (14.00mm x 4.10mm) | 0.822" (20.87mm) | - | 0.199" (5.05mm) |
|

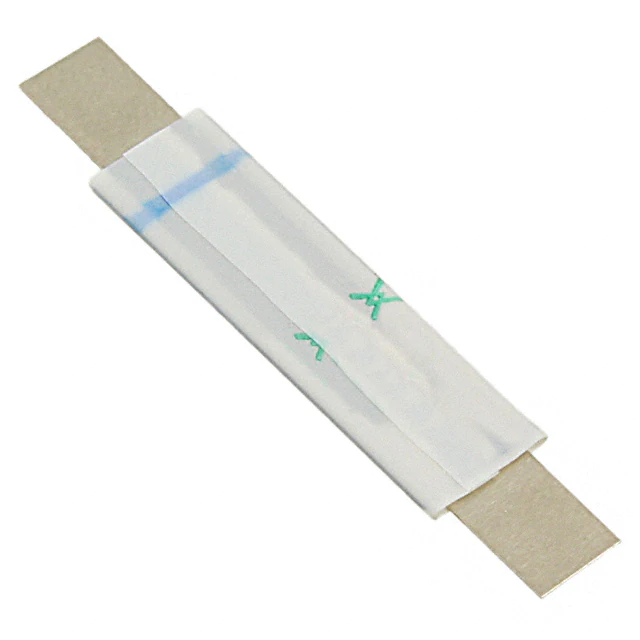

LR4-550FPTC RESET FUSE 20V 5.5A STRAP |
190 |
|
Datasheet | Strap | PolySwitch®, LR4 | Bag | Active | Polymeric | 20V | 5.5 A | 10.5 A | 100 A | 5 s | 9 mOhms | 22 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.417" L x 0.283" W (36.00mm x 7.20mm) | - | 0.039" (1.00mm) | - |
|
|
1210L010/90WR1210L |
1,329 |
|
Datasheet | 1210 (3225 Metric), Concave | PolySwitch® 1210L | Tape & Reel (TR) | Active | Polymeric | 90V | 100 mA | 250 mA | 10 A | 300 ms | 1.5 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.049" (1.25mm) | - |
|
|
1210L020/72WRPOLYSWITCH RESETTABLE PPTC |
722 |
|
Datasheet | 1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Active | Polymeric | 72V | 200 mA | 400 mA | 10 A | 500 ms | 800 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
|
1210L035/60PRPOLYSWITCH RESETTABLE PPTC |
518 |
|
Datasheet | 1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Active | Polymeric | 60V | 350 mA | 700 mA | 10 A | 1 s | 320 mOhms | 1.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.059" (1.50mm) | - |
|
60R185XMRPTC RESET FUSE 60V 1.85A RADIAL |
6,212 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.660" Dia x 0.122" T (16.76mm x 3.10mm) | 0.906" (23.00mm) | - | 0.201" (5.10mm) |
|
30R500UFPTC RESET FUSE 30V 5A RADIAL |
11,269 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 30R | Bulk | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 1.008" (25.60mm) | - | 0.402" (10.20mm) |
