PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RGEF300-2PTC RESET FUSE 16V 3A RADIAL |
2,387 |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Tape & Reel (TR) | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.260" L x 0.098" W (6.60mm x 2.50mm) | 0.433" (11.00mm) | - | 0.199" (5.05mm) |
|
1812L075/24DRPTC RESET FUSE 24V 750MA 1812 |
10,845 |
|
Datasheet | 1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 24V | 750 mA | 1.5 A | 100 A | 200 ms | 110 mOhms | 290 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
AHEF300PTC RESET FUSE 32V 3A RADIAL |
9,394 |
|
Datasheet | Radial, Disc | PolySwitch®, AHEF | Bag | Active | Polymeric | 32V | 3 A | 6 A | 100 A | 5 s | 35 mOhms | 110 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.402" L x 0.150" W (10.20mm x 3.80mm) | 0.610" (15.50mm) | - | 0.200" (5.08mm) |
|
SMD030F-2018-2PTC RESET FUSE 60V 300MA 2SMD |
8,914 |
|
Datasheet | 2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 60V | 300 mA | 800 mA | 20 A | 1.5 s | 500 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.180" W (5.08mm x 4.58mm) | - | 0.070" (1.78mm) | - |
|

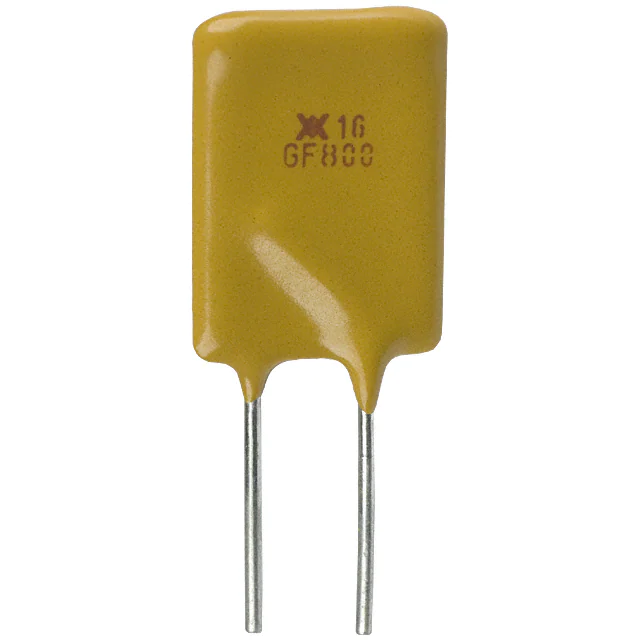

RGEF800PTC RESET FUSE 16V 8A RADIAL |
3,927 |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 8 A | 13.6 A | 100 A | 5 s | 5.6 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.480" L x 0.098" W (12.20mm x 2.50mm) | 0.823" (20.90mm) | - | 0.199" (5.05mm) |
|
RGEF500PTC RESET FUSE 16V 5A RADIAL |
1,901 |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.390" L x 0.098" W (9.90mm x 2.50mm) | 0.563" (14.30mm) | - | 0.199" (5.05mm) |
|
RKEF250PTC RESET FUSE 60V 2.5A RADIAL |
20,648 |
|
Datasheet | Radial, Disc | PolySwitch®, RKEF | Bag | Active | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 40 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.512" L x 0.150" W (13.00mm x 3.81mm) | 0.740" (18.80mm) | - | 0.200" (5.08mm) |
|
2920L075DRPTC RESET FUSE 30V 750MA 2920 |
6,995 |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 30V | 750 mA | 1.5 A | 40 A | 300 ms | 350 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
RHEF050-2PTC RESET FUSE 30V 500MA RADIAL |
5,631 |
|
Datasheet | Radial, Disc | PolySwitch®, RHEF | Tape & Reel (TR) | Active | Polymeric | 30V | 500 mA | 920 mA | 40 A | 2.5 s | 480 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|
SRP175FPTC RESET FUSE 15V 1.75A STRAP |
2,649 |
|
Datasheet | Strap | PolySwitch®, SRP | Bulk | Active | Polymeric | 15V | 1.75 A | 3.8 A | 100 A | 5 s | 50 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.199" W (22.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|
LVR008NSPTC RESET FUSE 240V 80MA RADIAL |
2,256 |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 80 mA | 190 mA | 1.2 A | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.283" Dia x 0.181" T (7.20mm x 4.60mm) | 0.402" (10.20mm) | - | 0.200" (5.08mm) |
|
|
LVR008NKPTC RESET FUSE 240V 80MA RADIAL |
2,210 |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 80 mA | 190 mA | 1.2 A | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.283" Dia x 0.181" T (7.20mm x 4.60mm) | 0.488" (12.40mm) | - | 0.200" (5.08mm) |
|
SMD125F-2PTC RESET FUSE 15V 1.25A 2SMD |
34,570 |
|
Datasheet | 2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 15V | 1.25 A | 2.5 A | 40 A | 2 s | 70 mOhms | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.118" (3.00mm) | - |
|
|
SMD300F/15-2PTC RESET FUSE 15V 3A 2SMD |
14,992 |
|
Datasheet | 2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 15V | 3 A | 6 A | 40 A | 35 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.118" (3.00mm) | - |
|
|
2920L125PRPTC RESET FUSE 15V 1.25A 2920 |
9,566 |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 15V | 1.25 A | 2.5 A | 40 A | 2 s | 70 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
RGEF600PTC RESET FUSE 16V 6A RADIAL |
4,232 |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" L x 0.098" W (10.20mm x 2.50mm) | 0.673" (17.10mm) | - | 0.199" (5.05mm) |
|
2016L100PRPTC RESET FUSE 15V 1.1A 2016 |
2,906 |
|
Datasheet | 2016 (5041 Metric), Concave | POLY-FUSE®, 2016L | Tape & Reel (TR) | Active | Polymeric | 15V | 1.1 A | 2.2 A | 40 A | 500 ms | 100 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.030" (0.75mm) | - |
|
MINISMDC260F/13.2-2PTC RESET FUSE 13.2V 2.6A 1812 |
2,486 |
|
Datasheet | 1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 13.2V | 2.6 A | 5 A | 100 A | 5 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.060" (1.52mm) | - |
|
TRF250-080UPTC RESET FUSE 60V 80MA RADIAL |
6,308 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 80 mA | 160 mA | 3 A | 4 s | 14 Ohms | 33 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.189" Dia x 0.150" T (4.80mm x 3.80mm) | 0.366" (9.30mm) | - | 0.197" (5.00mm) |
|
MICROSMD200F-2PTC RESET FUSE 6V 2A 1210 |
1,911 |
|
Datasheet | 1210 (3225 Metric), Concave | PolySwitch®, microSMD | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 100 A | 2.5 s | 20 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.046" (1.17mm) | - |
