Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP2213D-2.5TRG1IC REG LINEAR 2.5V 500MA TO252-2 |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 2.5V | - | 0.7V @ 500mA | 500mA | 180 µA | 28 mA | 75dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
|
AP2213D-3.0TRG1IC REG LINEAR 3V 500MA TO252-2 |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 3V | - | 0.7V @ 500mA | 500mA | 180 µA | 28 mA | 75dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
|
AP2213D-3.3TRG1IC REG LINEAR 3.3V 500MA TO252-2 |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 3.3V | - | 0.7V @ 500mA | 500mA | 180 µA | 28 mA | 75dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
AP2121AK-1.5TRE1IC REG LINEAR 1.5V 200MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.5V | - | 0.6V @ 200mA | 200mA | 50 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
AP2121AK-3.0TRE1IC REG LINEAR 3V 200MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.5V @ 200mA | 200mA | 50 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
AP2121AK-1.2TRE1IC REG LINEAR 1.2V 200MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.9V @ 200mA | 200mA | 50 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
__2.jpg)
|
LD1117DT30IC REG LINEAR 3V 800MA DPAK |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 15V | 3V | - | 1.2V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
AP1115AY50L-13IC REG LINEAR 5V 600MA SOT89-3 |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 5V | - | 1.3V @ 600mA | 600mA | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
AP1115AYL-13IC REG LIN POS ADJ 600MA SOT89-3 |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 18V | 1.25V | 5V | 1.3V @ 600mA | 600mA | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
AP1115BY33L-13IC REG LINEAR 3.3V 600MA SOT89-3 |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 3.3V | - | 1.3V @ 600mA | 600mA | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|

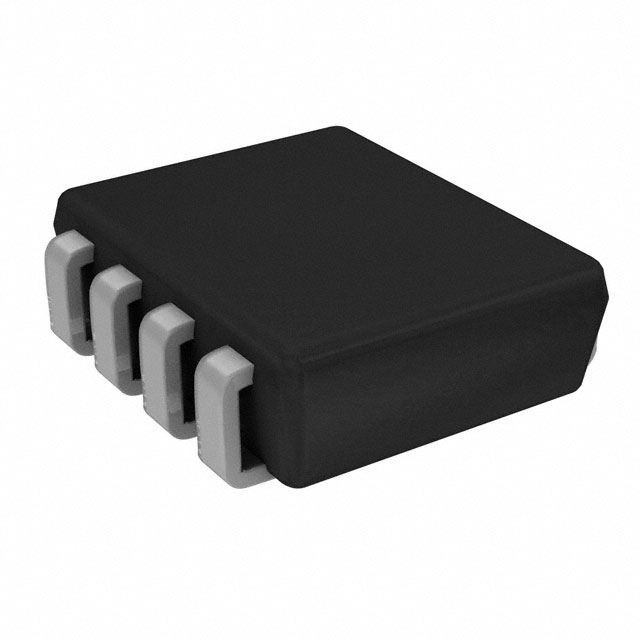

AAT3258ITS-3.3-R-T1IC REG LINEAR 3.3V 300MA 8TSOPJW |
0 |
|
Datasheet | - | 8-TSSOJ (0.094", 2.40mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.6V @ 300mA | 300mA | 125 µA | - | 67dB ~ 45dB (1kHz ~ 100kHz) | Enable, Manual Reset, Reset | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-TSOPJW |
|
IFX54211MBV33HTMA1IC REG LINEAR 3.3V 150MA SCT595 |
0 |
|
Datasheet | - | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 3.3V | - | 0.57V @ 150mA | 150mA | 75 µA | 200 µA | 63dB (10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | PG-SCT595-5-1 |
|
NCV2931AZ-5.0RAGIC REG LINEAR 5V 100MA TO92-3 |
0 |
|
Datasheet | - | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 100mA | 100mA | 1 mA | 30 mA | 90dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Through Hole | TO-92 (TO-226) |
|
NCP502SQ18T1GIC REG LINEAR 1.8V 80MA SC88A |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 1.8V | - | 1.7V @ 80mA | 80mA | 40 µA | 90 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NCP502SQ28T1GIC REG LINEAR 2.8V 80MA SC88A |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 2.8V | - | 1.3V @ 80mA | 80mA | 40 µA | 90 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NCP502SQ30T1GIC REG LINEAR 3V 80MA SC88A |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 3V | - | 1.2V @ 80mA | 80mA | 40 µA | 90 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NCP502SQ50T1GIC REG LINEAR 5V 80MA SC88A |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 5V | - | 0.9V @ 80mA | 80mA | 40 µA | 90 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NCP512SQ15T1GIC REG LINEAR 1.5V 80MA SC88A |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.5V | - | 0.55V @ 80mA | 80mA | 1 µA | 90 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NCP512SQ18T1GIC REG LINEAR 1.8V 80MA SC88A |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | 0.45V @ 80mA | 80mA | 1 µA | 90 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NCP512SQ27T1GIC REG LINEAR 2.7V 80MA SC88A |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.7V | - | 0.3V @ 80mA | 80mA | 1 µA | 90 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
