Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT1963ET-1.5#PBFIC REG LINEAR 1.5V 1.5A TO220-5 |
108 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 20V | 1.5V | - | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
LT1764AET-3.3#06PBFIC REG LINEAR 3.3V 3A TO220 |
10 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 0.66V @ 3A | 3A | 1.5 mA | 200 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 Flow 6 |
|
LT1118CS8-2.85#PBFIC REG LINEAR 2.85V 800MA 8SOIC |
10 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 15V | 2.85V | - | 1.3V @ 800mA | 800mA | 1 mA | - | 80dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Surface Mount | 8-SO |
|
|
LT1529CT#06PBFIC REG LIN POS ADJ 3A TO220-5 |
100 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Adjustable | 1 | 15V | 3.75V | 14V | 0.95V @ 3A | 3A | 100 µA | 160 mA | 62dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | 0°C ~ 125°C | - | - | Through Hole | TO-220-5 Flow 6 |
|
|
LT3015IT-3.3#PBFIC REG LINEAR -3.3V 1.5A TO220-5 |
100 |
|
Datasheet | - | TO-220-5 | Tube | Active | Negative | Fixed | 1 | -30V | -3.3V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 61dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LT1175CT#06PBFIC REG LIN NEG ADJ 500MA TO220-5 |
100 |
|
Datasheet | - | TO-220-5 | Tube | Active | Negative | Adjustable | 1 | -20V | -3.8V | -19.3V | 0.7V @ 500mA | 500mA | 80 µA | - | - | Current Limit, Enable | - | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-5 Flow 6 |
|

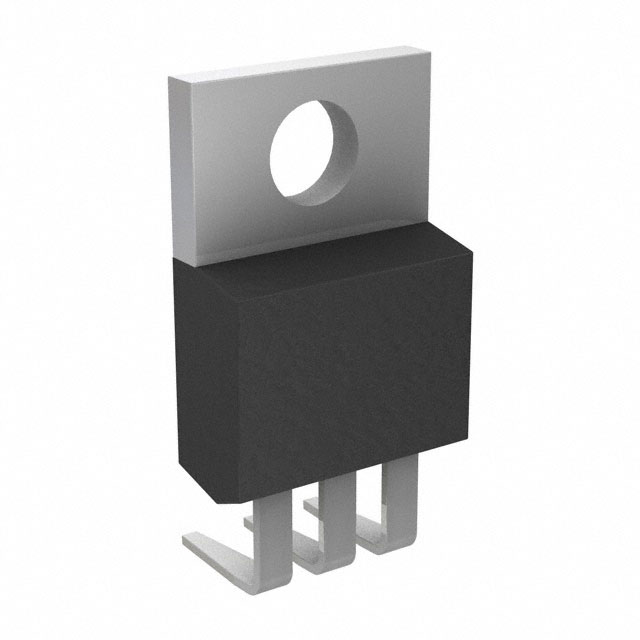

LT1086IT#36PBFIC REG LIN POS ADJ 1.5A TO220-3 |
10 |
|
Datasheet | - | TO-220-3 Formed Leads | Tube | Active | Positive | Adjustable | 1 | 25V | 1.25V | 23.5V | 1.5V @ 1.5A | 1.5A | - | - | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 Flow 36 |
|
LT3015IMSE-12#PBFIC REG LINEAR -12V 1.5A 12MSOP |
7 |
|
Datasheet | - | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Negative | Fixed | 1 | -30V | -12V | - | 0.5V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 53dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-MSOP-EP |
|
|
LT1175CT-5#06PBFIC REG LIN -5V 500MA TO220-5 |
100 |
|
Datasheet | - | TO-220-5 | Tube | Active | Negative | Fixed | 1 | -20V | -5V | - | 0.7V @ 500mA | 500mA | 80 µA | - | 60db ~ 15dB (1kHz ~ 100kHz) | Current Limit, Enable | - | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-5 Flow 6 |
|
|
LT1129IT#06PBFIC REG LIN POS ADJ 700MA TO220-5 |
100 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Adjustable | 1 | 30V | 3.8V | 30V | 0.7V @ 700mA | 700mA | 70 µA | 90 mA | 64dB (120Hz) | Enable | Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 Flow 6 |
|
|
LT3015IT-12#PBFIC REG LINEAR -12V 1.5A TO220-5 |
100 |
|
Datasheet | - | TO-220-5 | Tube | Active | Negative | Fixed | 1 | -30V | -12V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 53dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
LT3015IQ-3#PBFIC REG LINEAR -3V 1.5A 5DDPAK |
100 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Negative | Fixed | 1 | -30V | -3V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 62dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
LT1529CT-5#30PBFIC REG LIN 5V 3A TO220-5 FLOW 30 |
55 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Active | Positive | Fixed | 1 | 15V | 5V | - | 0.95V @ 3A | 3A | 100 µA | 160 mA | 62dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | 0°C ~ 125°C | - | - | Through Hole | TO-220-5 Flow 30 |
|
LT3091MPFE#PBFIC REG LIN NEG ADJ 1.5A 16TSSOP |
0 |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Negative | Adjustable | 1 | -36V | 0V | -32V | 0.45V @ 1.5A | 1.5A | 50.5 µA | - | 85dB ~ 20dB (120Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -55°C ~ 150°C | - | - | Surface Mount | 16-TSSOP-EP |
|
|
LT3015MPMSE-3.3#PBFIC REG LINEAR -3.3V 1.5A 12MSOP |
0 |
|
Datasheet | - | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Negative | Fixed | 1 | -30V | -3.3V | - | 0.5V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 61dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | 12-MSOP-EP |
|
|
LT1175IT-5#PBFIC REG LINEAR -5V 500MA TO220-5 |
199 |
|
Datasheet | - | TO-220-5 | Tube | Active | Negative | Fixed | 1 | -20V | -5V | - | 0.7V @ 500mA | 500mA | 80 µA | - | 60db ~ 15dB (1kHz ~ 100kHz) | Current Limit, Enable | - | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-5 |
|
LT1764AET#31PBFIC REG LIN POS ADJ 3A TO220-5 |
100 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Active | Positive | Adjustable | 1 | 20V | 1.21V | 20V | 0.66V @ 3A | 3A | 1.5 mA | 200 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 Flow 31 |
|
LT1020CN#PBFIC REG LIN POS ADJ 125MA 14DIP |
2 |
|
Datasheet | - | 14-DIP (0.300", 7.62mm) | Tube | Active | Positive | Adjustable | 1 | 36V | 2.5V | 35.15V | 0.85V @ 125mA | 125mA | 95 µA | 20 mA | - | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | 0°C ~ 100°C | - | - | Through Hole | 14-PDIP |
|
LT3091MPT7#PBFIC REG LIN NEG ADJ 1.5A TO220-7 |
0 |
|
Datasheet | - | TO-220-7 Formed Leads | Tube | Active | Negative | Adjustable | 1 | -36V | 0V | -32V | 0.525V @ 1.5A | 1.5A | 50.5 µA | - | 85dB ~ 20dB (120Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -55°C ~ 150°C | - | - | Through Hole | TO-220-7 |
|
LT3091MPR#PBFIC REG LIN NEG ADJ 1.5A 7DDPAK |
0 |
|
Datasheet | - | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tube | Active | Negative | Adjustable | 1 | -36V | 0V | -32V | 0.525V @ 1.5A | 1.5A | 50.5 µA | - | 85dB ~ 20dB (120Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -55°C ~ 150°C | - | - | Surface Mount | DDPAK-7 |
