Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CS8140YTVA7IC REG LINEAR 5V 500MA TO220-7 |
0 |
|
Datasheet | - | TO-220-7 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 1.5V @ 500mA | 500mA | - | - | 75dB (120Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-7 |
|

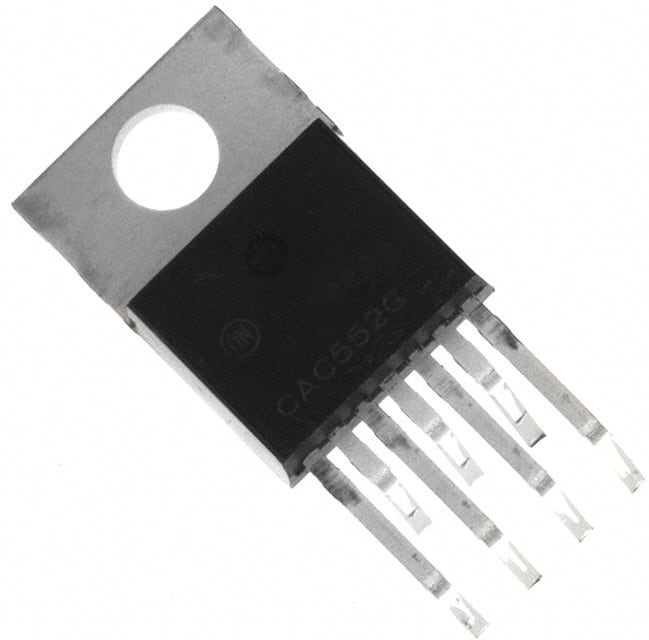

CS8141YTHA7IC REG LINEAR 5V 500MA TO220-7 |
0 |
|
Datasheet | - | TO-220-7 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 1.5V @ 500mA | 500mA | - | - | 75dB (120Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-7 |
|
TPS79628DRBTIC REG LINEAR 2.8V 1A 8SON |
242 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.9V @ 250mA | 1A | 385 µA | - | 59dB ~ 42dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SON (3x3) |
|
LX8117B-00CSTIC REG LIN POS ADJ 1.2A SOT223 |
1,701 |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Obsolete | Positive | Adjustable | 1 | 15V | 1.25V | 13.85V | 1.3V @ 1.2A | 1.2A | 10 mA | - | 75dB (120Hz) | - | Over Current, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | SOT-223, Power |
|
TPS70158PWPRIC REG LINEAR 3.3V/2.5V 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 6V | 3.3V, 2.5V | - | 0.28V @ 500mA, - | 500mA, 250mA | 190 µA | 230 µA | 60dB (1kHz) | Enable, Power Good, Reset, Sequencing | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
_4040208^C.jpg)
|
TPS75915KCIC REG LINEAR 1.5V 7.5A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 | Bulk | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | - | 7.5A | 200 µA | - | 58dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
TPS75918KCIC REG LINEAR 1.8V 7.5A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 | Bulk | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 7.5A | 200 µA | - | 58dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
TPS70448PWPRIC REG LINEAR 3.3V/1.5V 24HTSSOP |
0 |
|
Datasheet | - | 24-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 6V | 3.3V, 1.5V | - | 0.25V @ 1A, - | 1A, 2A | 250 µA | - | 65dB (1kHz), 60dB (1kHz) | Enable, Power Good, Reset, Sequencing | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 24-HTSSOP |
|
|
TPS70148PWPRIC REG LINEAR 3.3V/1.5V 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 6V | 3.3V, 1.5V | - | 0.28V @ 500mA, - | 500mA, 250mA | 190 µA | 230 µA | 60dB (1kHz) | Enable, Power Good, Reset, Sequencing | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
|
TPS70458PWPRIC REG LINEAR 3.3V/2.5V 24HTSSOP |
0 |
|
Datasheet | - | 24-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 6V | 3.3V, 2.5V | - | 0.25V @ 1A, - | 1A, 2A | 250 µA | - | 65dB (1kHz), 60dB (1kHz) | Enable, Power Good, Reset, Sequencing | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 24-HTSSOP |
|
TPS75925KTTRIC REG LINEAR 2.5V 7.5A DDPAK |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | - | 7.5A | 200 µA | - | 58dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
TPS73230MDBVREPIC REG LINEAR 3V 250MA SOT23-5 |
0 |
|
Datasheet | TPS732xx | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.15V @ 250mA | 250mA | 550 µA | 950 µA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
TPS77801DIC REG LIN POS ADJ 750MA 8SOIC |
22 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Adjustable | 1 | 10V | 1.2V | 5.5V | - | 750mA | 125 µA | - | 60dB (1kHz) | Enable, Power Good, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
TPS77815PWPIC REG LIN 1.5V 750MA 20HTSSOP |
47 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Bulk | Active | Positive | Fixed | 1 | 10V | 1.5V | - | - | 750mA | 125 µA | - | 60dB (1kHz) | Enable, Power Good, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
LM1085IS-3.3IC REG LIN 3.3V 3A DDPAK/TO263-3 |
825 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Positive | Fixed | 1 | 27V | 3.3V | - | 1.5V @ 3A | 3A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
REG113EA-5/250IC REG LINEAR 5V 400MA 8VSSOP |
163 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 5V | - | 0.41V @ 400mA | 400mA | 500 µA | 1 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-VSSOP |
|
|
REG113EA-2.5/250IC REG LINEAR 2.5V 400MA 8VSSOP |
250 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 2.5V | - | 0.41V @ 400mA | 400mA | 500 µA | 1 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-VSSOP |
|
TPS7101QPWRIC REG LIN POS ADJ 500MA 20TSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 10V | 1.2V | 9.75V | 0.4V @ 500mA | 500mA | 350 µA | 460 µA | 59dB ~ 54dB (120Hz) | Enable, Power Good | Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-TSSOP |
|
|
TPS72301DBVTIC REG LIN NEG ADJ 200MA SOT23-5 |
6,980 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Negative | Adjustable | 1 | -10V | -1.2V | -10V | 0.5V @ 200mA | 200mA | 200 µA | 500 µA | 65dB ~ 48dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
TPS7250QDIC REG LINEAR 5V 250MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Fixed | 1 | 10V | 5V | - | 1.1V @ 250mA | 250mA | 225 µA | 325 µA | 60dB ~ 50dB (120Hz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
