Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LD39115J18RIC REG LIN 1.8V 150MA 4FLIPCHIP |
2,776 |
|
Datasheet | - | 4-UFBGA, FCBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.11V @ 100mA | 150mA | 50 µA | 70 µA | 74dB ~ 67dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 4-FlipChip |
|
MIC5216-3.3BMMIC REG LINEAR 3.3V 500MA 8MSOP |
1,791 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Obsolete | Positive | Fixed | 1 | 12V | 3.3V | - | 0.6V @ 500mA | 500mA | 3 µA | 25 mA | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
AP1086DL-13IC REG LIN POS ADJ 1.5A TO252-3 |
1,706 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Cut Tape (CT) | Active | Positive | Adjustable | 1 | 12V | 1.25V | 5V | 1.4V @ 1.5A | 1.5A | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
AP1084T15L-UIC REG LINEAR 1.5V 5A TO220-3 |
1,080 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 12V | 1.5V | - | 1.4V @ 5A | 5A | 10 mA | - | - | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|

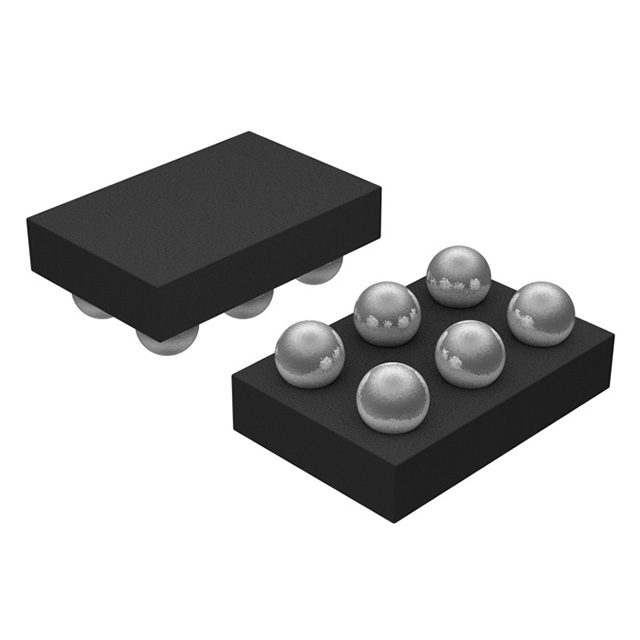

ADP221ACDZ-1818-R7IC REG LINEAR 1.8V/1.8V 6WLCSP |
0 |
|
Datasheet | - | 6-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 1.8V, 1.8V | - | - | 200mA, 200mA | 120 µA | 220 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.46x0.96) |
|
NCV1117ST15T3GIC REG LINEAR 1.5V 1A SOT223 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 1.5V | - | 1.2V @ 800mA | 1A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-223 |
|
NCV8702MX28TCGIC REG LINEAR 2.8V 200MA 6XDFN |
0 |
|
Datasheet | - | 6-XFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.2V @ 200mA | 200mA | 16 µA | - | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-XDFN (1.5x1.5) |
|
NCV4299APA50R2GIC REG LINEAR 5V 150MA 14TSSOP |
0 |
|
Datasheet | - | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 150mA | 90 µA | 2 mA | 66dB (100Hz) | Enable, Reset | Antisaturation, Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 14-TSSOP-EP |
|
UA78L15ACDIC REG LINEAR 15V 100MA 8SOIC |
1,251 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Fixed | 1 | 30V | 15V | - | 1.7V @ 40mA | 100mA | - | - | 39dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
MIC5330-OGYML-TRIC REG LINEAR 1.8V/2.9V 8MLF |
4,965 |
|
Datasheet | - | 8-VFDFN Exposed Pad, 8-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 1.8V, 2.9V | - | 0.2V @ 300mA, 0.2V @ 300mA | 300mA, 300mA | 120 µA | 200 µA | 70dB ~ 65dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MLF® (2x2) |
|
|
MIC5330-PJYML-TRIC REG LINEAR 2.5V/3V 8MLF |
4,688 |
|
Datasheet | - | 8-VFDFN Exposed Pad, 8-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 2.5V, 3V | - | 0.2V @ 300mA, 0.2V @ 300mA | 300mA, 300mA | 120 µA | 200 µA | 70dB ~ 65dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MLF® (2x2) |
|
LP3999ITLX-3.3/NOPBIC REG LINEAR 3.3V 150MA 5DSBGA |
3,000 |
|
Datasheet | - | 5-WFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.1V @ 150mA | 150mA | 150 µA | 200 µA | 60dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 5-DSBGA (1.41x1.08) |
|
|
LP3999ITLX-2.8/NOPBIC REG LINEAR 2.8V 150MA 5DSBGA |
2,880 |
|
Datasheet | - | 5-WFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.1V @ 150mA | 150mA | 150 µA | 200 µA | 60dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 5-DSBGA (1.41x1.08) |
|
|
MIC5330-SPYML-TRIC REG LINEAR 3V/3.3V 8MLF |
2,291 |
|
Datasheet | - | 8-VFDFN Exposed Pad, 8-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 3V, 3.3V | - | 0.2V @ 300mA, 0.2V @ 300mA | 300mA, 300mA | 120 µA | 200 µA | 70dB ~ 65dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MLF® (2x2) |
|
|
TPS76601DIC REG LIN POS ADJ 250MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Adjustable | 1 | 10V | 1.25V | 5.5V | - | 250mA | 50 µA | - | 63dB (1kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
NCP700CMT45TBGIC REG LINEAR 4.5V 200MA 6WDFN |
0 |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 4.5V | - | 0.15V @ 200mA | 200mA | 110 µA | 130 µA | 70dB ~ 26dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-WDFN (1.5x1.5) |
|
TPS73725DCQIC REG LINEAR 2.5V 1A SOT223-6 |
0 |
|
Datasheet | - | SOT-223-6 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.5V @ 1A | 1A | 400 µA | 1.3 mA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
NCP4688DSN33T1GIC REG LINEAR 3.3V 150MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 3.3V | - | 0.28V @ 150mA | 150mA | 100 µA | - | 80dB ~ 65dB (1kHz ~ 100kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
NCP705EMT33TCGIC REG LINEAR 3.3V 500MA 6WDFN |
0 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.35V @ 500mA | 500mA | 25 µA | 260 µA | 73dB ~ 56dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WDFN (2x2) |
|
AP130-28YRL-13IC REG LIN 2.8V 300MA SOT89R-3 |
4,450 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.5V @ 300mA | 300mA | 100 µA | - | 58dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89R-3 |
