Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IFX4949SJXUMA1IC REG LINEAR 5V 100MA DSO8 |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 28V | 5V | - | 0.5V @ 100mA | 100mA | 300 µA | 3.6 mA | - | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | PG-DSO-8 |
|
MIC5320-PGYMT-TRIC REG LINEAR 1.8V/3V 6TMLF |
3,325 |
|
Datasheet | - | 6-UFDFN Exposed Pad, 6-TMLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 1.8V, 3V | - | 0.1V @ 150mA, 0.1V @ 150mA | 150mA, 150mA | 120 µA | 190 µA | 65dB ~ 45dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-TMLF® (1.6x1.6) |
|
NCP571SN12T1GIC REG LINEAR 1.2V 150MA 5TSOP |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 1.2V | - | 0.45V @ 10mA | 150mA | 1 µA | 8 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-TSOP |
|
|
TLE42994GXUMA1IC REG LINEAR 5V 150MA DSO8 |
0 |
|
Datasheet | OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 150mA | 100 µA | 2 mA | 66dB (100Hz) | Reset | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
L7815ABV-DGIC REG LINEAR 15V 1.5A TO220 |
1,881 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 35V | 15V | - | 2V @ 1A (Typ) | 1.5A | 6 mA | - | 58dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
UA7905CKCSE3IC REG LINEAR -5V 1.5A TO220-3 |
326 |
|
Datasheet | - | TO-220-3 | Bulk | Active | Negative | Fixed | 1 | -25V | -5V | - | 1.1V @ 1A | 1.5A | - | - | 60dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
UA7812CKCSIC REG LINEAR 12V 1.5A TO220-3 |
1,534 |
|
Datasheet | - | TO-220-3 | Bulk | Active | Positive | Fixed | 1 | 30V | 12V | - | 2V @ 1A | 1.5A | - | - | 78dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
TPS71828-28YZCRIC REG LINEAR 2.8V 200MA 6DSBGA |
0 |
|
Datasheet | - | 6-UFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 2.8V | - | 0.4V @ 200mA | 200mA | 160 µA | 250 µA | 63dB ~ 44dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-DSBGA (1x1.5) |
|
NCP590MNDPTAGIC REG LINEAR 1.8V/2.8V 8DFN |
0 |
|
Datasheet | - | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 2.8V | - | -, 0.225V @ 300mA | 300mA, 300mA | 125 µA | 250 µA | 55dB (120Hz), 50dB ~ 40dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-DFN (2x2) |
|
|
NCP590MNOATAGIC REG LINEAR 1.5V/2.4V 8DFN |
48,000 |
|
Datasheet | - | 8-VFDFN Exposed Pad | Bulk | Obsolete | Positive | Fixed | 2 | 5.5V | 1.5V, 2.4V | - | -, 0.225V @ 300mA | 300mA, 300mA | 125 µA | 250 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-DFN (2x2) |
|
NCP703MX33TCGIC REG LINEAR 3.3V 300MA 6XDFN |
0 |
|
Datasheet | - | 6-XFDFN | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.3V @ 300mA | 300mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-XDFN (1.5x1.5) |
|
|
NCP590MNVVTAGIC REG LINEAR 3.3V/3.3V 8DFN |
0 |
|
Datasheet | - | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 3.3V, 3.3V | - | 0.225V @ 300mA, 0.225V @ 300mA | 300mA, 300mA | 125 µA | 250 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-DFN (2x2) |
|
ADP3301AR-2.7-REELIC REG LINEAR 2.7V 100MA 8SOIC |
22,566 |
|
Datasheet | anyCAP® | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Fixed | 1 | 12V | 2.7V | - | 0.2V @ 100mA | 100mA | 300 µA | 2 mA | - | Error Flag, Shutdown | Over Temperature | -20°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|

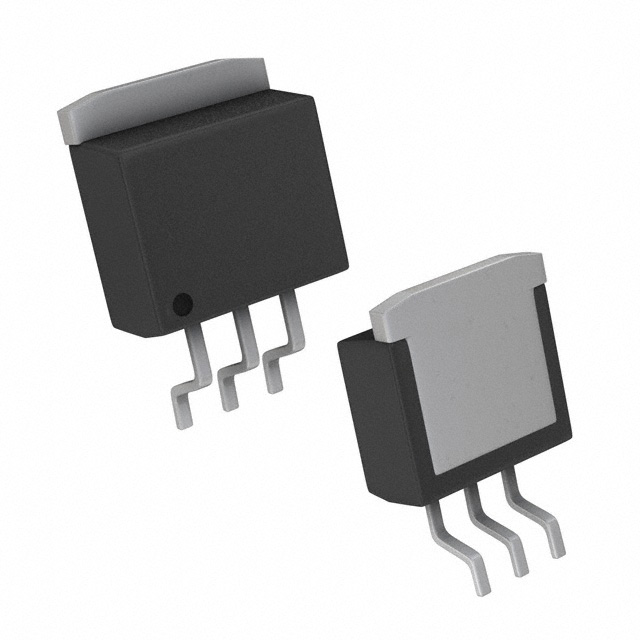

TLE72742GATMA1IC REG LINEAR 5V 300MA TO263-3 |
0 |
|
Datasheet | OPTIREG™ | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 200mA | 300mA | 30 µA | 40 µA | 60dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO263-5-1 |
|
NCP4586DSN18T1GIC REG LINEAR 1.8V 150MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 1.8V | - | 0.68V @ 150mA | 150mA | 58 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NCP590MN5ATAGIC REG LINEAR 1.2V/1.5V 8DFN |
14,925 |
|
Datasheet | - | 8-VFDFN Exposed Pad | Bulk | Obsolete | Positive | Fixed | 2 | 5.5V | 1.2V, 1.5V | - | - | 300mA, 300mA | 125 µA | 250 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-DFN (2x2) |
|
LM317LCPWIC REG LIN POS ADJ 100MA 8TSSOP |
9,962 |
|
Datasheet | - | 8-TSSOP (0.173", 4.40mm Width) | Tube | Active | Positive | Adjustable | 1 | 38V | 1.2V | 32V | - | 100mA | 2.5 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | 8-TSSOP |
|
|
UA7812CKCSE3IC REG LINEAR 12V 1.5A TO220-3 |
171 |
|
Datasheet | - | TO-220-3 | Bulk | Active | Positive | Fixed | 1 | 30V | 12V | - | 2V @ 1A | 1.5A | - | - | 78dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
LP2981A-30DBVTIC REG LINEAR 3V 100MA SOT23-5 |
1,033 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3V | - | 0.37V @ 100mA | 100mA | 95 µA | 1.7 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
AP7361-12E-13IC REG LINEAR 1.2V 1A SOT223 |
4,272 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.7V @ 1A | 1A | 90 µA | - | 65dB ~ 45dB (1kHz ~ 10kHz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-3 |
