Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC78M15CTIC REG LINEAR 15V 500MA TO220AB |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 15V | - | - | 500mA | - | - | 70dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
|
NCP78M12CTGIC REG LINEAR 12V 500MA TO220AB |
0 |
|
- |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | - | 500mA | - | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
NCP134AMX105TCGIC REG LINEAR 1.05V 500MA 4XDFN |
0 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.05V | - | 0.25V @ 500mA | 500mA | - | - | 80dB ~ 70dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-XDFN (1.2x1.2) |
|
TPS799L57YZYRIC REG LINEAR 5.7V 200MA 5DSBGA |
0 |
|
Datasheet | - | 5-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 5.7V | - | 0.16V @ 200mA | 200mA | 60 µA | - | 70dB ~ 38dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 5-DSBGA |
|
NCP563SQ25T1GIC REG LINEAR 2.5V 80MA SC82AB |
0 |
|
Datasheet | - | SC-82A, SOT-343 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 0.4V @ 80mA | 80mA | 1 µA | 6 µA | - | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-82AB |
|
UA78M06CKTPRIC REG LIN 6V 500MA 2POWERFLEX |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 25V | 6V | - | 2V @ 350mA | 500mA | - | - | 80dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
NCP1117DT15RKGIC REG LINEAR 1.5V 1A DPAK |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 1.5V | - | 1.2V @ 800mA | 1A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
UA7808CKCTIC REG LINEAR 8V 1.5A TO220-3 |
903 |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | Positive | Fixed | 1 | 25V | 8V | - | 2V @ 1A | 1.5A | - | - | 72dB ~ 62dB (120Hz) | - | Over Temperature, Reverse Polarity | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
NCV8560MN250R2GIC REG LINEAR 2.5V 150MA 6DFN |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | - | 150mA | 175 µA | - | 62dB ~ 38dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (3x3) |
|
|
NCV8560MN180R2GIC REG LINEAR 1.8V 150MA 6DFN |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | - | 150mA | 175 µA | - | 62dB ~ 38dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (3x3) |
|
LP8340ILDX-ADJIC REG LINEAR POS ADJ 1A 6WSON |
0 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 10V | 1.25V | 9.3V | - | 1A | 100 µA | 170 µA | 55dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2.92x3.29) |
|
|
NCV8560MN350R2GIC REG LINEAR 3.5V 150MA 6DFN |
48,216 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.5V | - | - | 150mA | 180 µA | - | 62dB ~ 38dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (3x3) |
|
|
NCV8560MN300R2GIC REG LINEAR 3V 150MA 6DFN |
40,824 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3V | - | - | 150mA | 175 µA | - | 62dB ~ 38dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (3x3) |
|
|
NCV8560MNADJR2GIC REG LINEAR POS ADJ 150MA 6DFN |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 6V | 1.25V | 5V | 0.125V @ 150mA | 150mA | 135 µA | - | 62dB ~ 38dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (3x3) |
|
|
NCP563SQ28T1GIC REG LINEAR 2.8V 80MA SC82AB |
0 |
|
Datasheet | - | SC-82A, SOT-343 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.8V | - | 0.4V @ 80mA | 80mA | 1 µA | 6 µA | - | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-82AB |
|
|
TPS799L54YZYRIC REG LINEAR 5.4V 200MA 5DSBGA |
0 |
|
Datasheet | - | 5-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 5.4V | - | 0.16V @ 200mA | 200mA | 60 µA | - | 70dB ~ 38dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 5-DSBGA |
|
TPS79921YZURIC REG LINEAR 2.1V 200MA 5DSBGA |
0 |
|
Datasheet | - | 5-UFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 2.1V | - | 0.18V @ 200mA | 200mA | 60 µA | - | 70dB ~ 38dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 5-DSBGA |
|

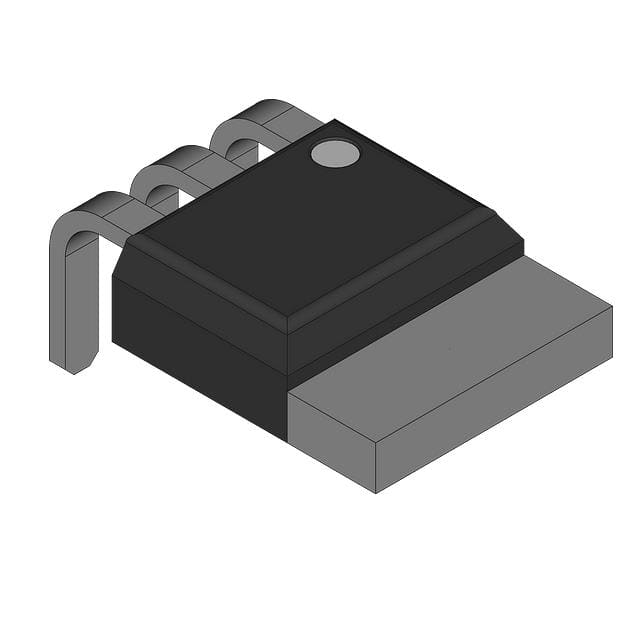

L88M05TL-TL-EIC REG LINEAR 5V 500MA IPAK/TP3H |
0 |
|
- |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 17V | 5V | - | 0.3V @ 150mA | 500mA | 5 mA | 50 mA | 65dB (120Hz) | - | Over Temperature, Short Circuit | -20°C ~ 85°C | - | - | Through Hole | IPAK/TP3H |
|
|
TPS79926YZURIC REG LINEAR 2.6V 200MA 5DSBGA |
0 |
|
Datasheet | - | 5-UFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 2.6V | - | 0.18V @ 200mA | 200mA | 60 µA | - | 70dB ~ 38dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 5-DSBGA |
|
LP5900TLX-2.1/NOPBIC REG LINEAR 2.1V 150MA 4DSBGA |
0 |
|
Datasheet | - | 4-WFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.1V | - | 0.15V @ 150mA | 150mA | 50 µA | 230 µA | 85dB ~ 40dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 4-DSBGA (1x1) |
