Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BU23UA3WNVX-TLIC REG LIN 2.3V 300MA 4SSON |
4,707 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 5.5V | 2.3V | - | 0.26V @ 300mA | 300mA | 90 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SSON004X1010 |
|
|
BU11UA3WNVX-TLIC REG LIN 1.1V 300MA 4SSON |
4,430 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 5.5V | 1.1V | - | 0.7V @ 300mA | 300mA | 90 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SSON004X1010 |
|
|
BU2KUA3WNVX-TLIC REG LIN 2.95V 300MA 4SSON |
3,600 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 5.5V | 2.95V | - | 0.22V @ 300mA | 300mA | 90 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SSON004X1010 |
|
CS52015-1GSTR3IC REG LIN POS ADJ 1.5A SOT223 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.25V | 5.5V | 1.4V @ 1.5A | 1.5A | 2 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Surface Mount | SOT-223 (TO-261) |
|
TPS76330QDBVRQ1IC REG LINEAR 3V 150MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 3V | - | - | 150mA | 100 µA | 140 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
TLV1117-25CDRJRIC REG LINEAR 2.5V 800MA 8SON |
0 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 15V | 2.5V | - | 1.3V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 8-SON (4x4) |
|
NCV1117DT50RKIC REG LDO POS 1A 5.0V DPAK |
2,500 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | Positive | Fixed | 1 | 20V | 5V | - | 1.2V @ 800mA | 1A | 10 mA | - | 61dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | DPAK |
|
MIC5210-2.7BMMIC REG LIN 2.7V/2.7V 150MA 8MSOP |
2,500 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Obsolete | Positive | Fixed | 2 | 16V | 2.7V, 2.7V | - | 0.35V @ 150mA, 0.35V @ 150mA | 150mA, 150mA | 150 µA | 2.5 mA | 75dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
CS52015-3GST3IC REG LINEAR FIXED LDO REG |
2,080 |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Active | Positive | Fixed | 1 | 7V | 3.3V | - | 1.4V @ 1.5A | 1.5A | 10 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Surface Mount | SOT-223 (TO-261) |
|
|
MIC5210-5.0BMMIC REG LINEAR 5V/5V 150MA 8MSOP |
2,050 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Obsolete | Positive | Fixed | 2 | 16V | 5V, 5V | - | 0.35V @ 150mA, 0.35V @ 150mA | 150mA, 150mA | 150 µA | 2.5 mA | 75dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
|
BU30UA3WNVX-TLIC REG LIN 3V 300MA SSON004X1010 |
2,012 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 5.5V | 3V | - | 0.22V @ 300mA | 300mA | 90 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SSON004X1010 |
|
TL750M08CKTERLOW DROPOUT VOLTAGE REGULATORS |
1,991 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Obsolete | Positive | Fixed | 1 | 26V | 8V | - | 0.6V @ 750mA | 750mA | - | - | 55dB (120Hz) | - | Over Current, Over Temperature, Over Voltage, Reverse Polarity | 0°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
|
MIC5210-2.9BMMIC REG LIN 2.9V/2.9V 150MA 8MSOP |
1,840 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Obsolete | Positive | Fixed | 2 | 16V | 2.9V, 2.9V | - | 0.35V @ 150mA, 0.35V @ 150mA | 150mA, 150mA | 150 µA | 2.5 mA | 75dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
|
BU1CUA3WNVX-TLIC REG LIN 1.25V 300MA 4SSON |
1,629 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 5.5V | 1.25V | - | 0.5V @ 300mA | 300mA | 90 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SSON004X1010 |
|
LDK120C10RIC REG LINEAR 1V 200MA SOT323-5 |
1,427 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | 0.3V @ 200mA | 200mA | 60 µA | 100 µA | 55dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-323-5 |
|
MCP1811AT-025/LBIC REG LINEAR 2.5V 150MA SC70-3 |
1,193 |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.6V @ 150mA | 150mA | 0.5 µA | 110 µA | 50dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SC-70-3 |
|

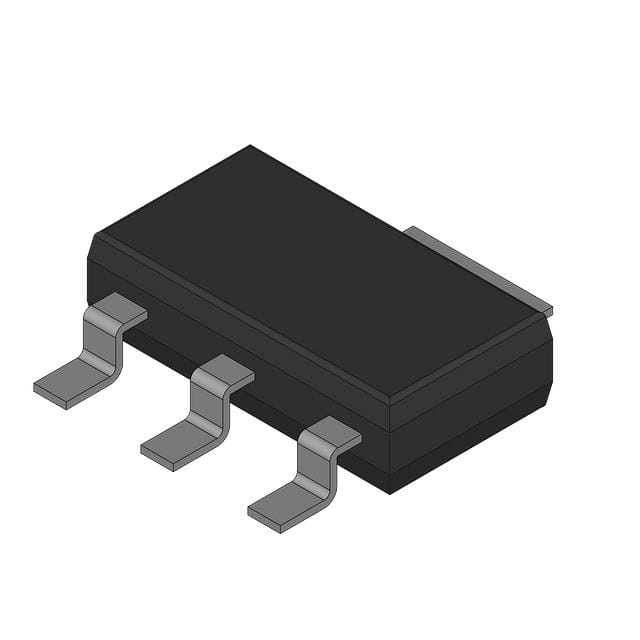

CS52015-1GST3IC REG LINEAR ADJ LDO REGULATOR |
1,075 |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Obsolete | Positive | Adjustable | 1 | 7V | 1.25V | 5.5V | 1.4V @ 1.5A | 1.5A | 2 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Surface Mount | SOT-223 (TO-261) |
|
MC7806ACTGIC REG LINEAR 6V 1A TO220AB |
0 |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | Positive | Fixed | 1 | 35V | 6V | - | 2V @ 1A (Typ) | 1A | 6 mA | - | 65dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
ADP121-ACBZ188R7IC REG LIN 1.875V 150MA 4WLCSP |
0 |
|
Datasheet | - | 4-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.875V | - | - | 150mA | 21 µA | 40 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.82x0.82) |
|
|
CHL6201BVP2-GT3IC REG LINEAR LDO ADJ 300MA |
150,000 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
