Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCP78LC28NTRGIC REG LINEAR 2.8V 100MA 5TSOP |
0 |
|
- |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 2.8V | - | 0.6V @ 1mA | 100mA | 1.1 µA | 3.6 µA | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-TSOP |
|
|
NCP78LC25NTRGIC REG LINEAR 2.5V 100MA 5TSOP |
0 |
|
- |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 2.5V | - | 0.6V @ 1mA | 100mA | 1.1 µA | 3.6 µA | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-TSOP |
|

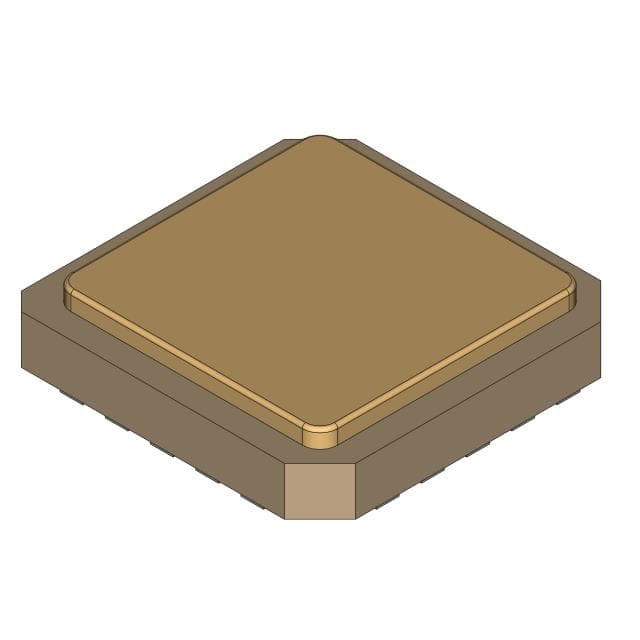

MIC5211-2.5BM6 TRDUAL MICROCAP 80 MA LDO REG |
3,000 |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Bulk | Active | Positive | Fixed | 2 | 16V | 2.5V, 2.5V | - | 0.5V @ 50mA, 0.5V @ 50mA | 80mA, 80mA | - | 1.2 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
MIC5211-3.6BM6 TRIC REG LIN 3.6V/3.6V 80MA SOT23 |
3,000 |
|
Datasheet | - | SOT-23-6 | Bulk | Active | Positive | Fixed | 2 | 16V | 3.6V, 3.6V | - | 0.5V @ 50mA, 0.5V @ 50mA | 80mA, 80mA | - | 1.2 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-6 |
|
|
NCP78LC33NTRGIC REG LINEAR 3.3V 100MA 5TSOP |
0 |
|
- |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 3.3V | - | 0.53V @ 1mA | 100mA | 1.1 µA | 3.6 µA | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-TSOP |
|
UPD120N33TA-E1-ATIC REG LINEAR FIXED LDO REG |
2,309 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MIC5206BMMIC REG LIN POS ADJ 150MA 8MSOP |
1,914 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Obsolete | Positive | Adjustable | 1 | 16V | 1.242V | 15.65V | 0.35V @ 150mA | 150mA | 150 µA | 2.5 mA | - | Enable, Error Flag | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
MIC5211-3.3/5.0BM6TRDUAL MICROCAP 80 MA LDO REG |
1,544 |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Bulk | Active | Positive | Fixed | 2 | 16V | 3.3V, 5V | - | 0.5V @ 50mA, 0.5V @ 50mA | 80mA, 80mA | - | 1.2 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
IFX1117GSV33IC REG LINEAR FIXED STNDRD REG |
1,529 |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Active | Positive | Fixed | 1 | 15V | 3.3V | - | 1.4V @ 1A | 1A | 10 mA | - | 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C (TJ) | - | - | Surface Mount | PG-SOT223-4 |
|
MIC5225-1.5YM5-TRIC REG LINEAR 1.5V 150MA SOT23-5 |
1,064 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 1.5V | - | 0.45V @ 150mA | 150mA | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
ST1L02PU18RIC REG LINEAR 1.8V 1A 6DFN |
2,856 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 1.8V | - | 1.6V @ 1A | 1A | 650 µA | - | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 6-DFN (3x3) |
|
NCV662SQ18T1GIC REG LINEAR 1.8V 100MA SC82AB |
0 |
|
Datasheet | - | SC-82A, SOT-343 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | 0.7V @ 100mA | 100mA | 1 µA | 6 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-82AB |
|
NCP717CMX285TCGIC REG LINEAR 2.85V 300MA 4XDFN |
0 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.265V @ 300mA | 300mA | 35 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-XDFN (1x1) |
|
NCP703SN30T1GIC REG LINEAR 3V 300MA 6TSOP |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.3V @ 300mA | 300mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 5-TSOP |
|
|
NCV662SQ28T1GIC REG LINEAR 2.8V 100MA SC82AB |
0 |
|
Datasheet | - | SC-82A, SOT-343 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.8V | - | 0.5V @ 100mA | 100mA | 1 µA | 6 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-82AB |
|
NCV612SQ50T2GIC REG LINEAR 5V 100MA SC88A |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 5V | - | 0.3V @ 100mA | 100mA | 90 µA | 90 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NCV612SQ31T2GIC REG LINEAR 3.1V 100MA SC88A |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.1V | - | 0.38V @ 100mA | 100mA | 90 µA | 90 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NCV662SQ25T1GIC REG LINEAR 2.5V 100MA SC82AB |
0 |
|
Datasheet | - | SC-82A, SOT-343 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 0.5V @ 100mA | 100mA | 1 µA | 6 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-82AB |
|
|
NCV612SQ28T2GIC REG LINEAR 2.8V 100MA SC88A |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.8V | - | 0.38V @ 100mA | 100mA | 90 µA | 90 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
NCP690MN25T2GIC REG LINEAR 2.5V 1A 6DFN |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 0.3V @ 1A | 1A | 200 µA | 240 µA | - | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (3x3) |
