Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC33263NW-30R2IC REG LINEAR FIXED LDO REG |
24,000 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NCP752BSN30T1GIC REG LINEAR 3V 200MA 5TSOP |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | - | 200mA | 25 µA | - | - | Enable, Power Good | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 5-TSOP |
|
NCP502SQ34T2GIC REG LINEAR 3.4V 80MA SC88A |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 3.4V | - | 1.2V @ 80mA | 80mA | 40 µA | 90 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
NCP7906CTGIC REG LINEAR TO220-3 |
0 |
|
- |
- | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MC33565DR2IC REG LINEAR 3.3V 200MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | - | 200mA | 10 mA | - | - | - | Over Temperature, Short Circuit | -5°C ~ 150°C | - | - | Surface Mount | 8-SOIC |
|
NCP582LXV25T2GIC REG LINEAR 2.5V 150MA SOT563 |
20,000 |
|
Datasheet | - | SOT-563, SOT-666 | Bulk | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 0.5V @ 150mA | 150mA | 95 µA | - | 70dB ~ 60dB (1kHz ~ 10kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-563 |
|
|
NCP582LXV29T2GIC REG LINEAR 2.9V 150MA SOT563 |
20,000 |
|
Datasheet | - | SOT-563, SOT-666 | Bulk | Obsolete | Positive | Fixed | 1 | 6V | 2.9V | - | 0.35V @ 150mA | 150mA | 95 µA | - | 70dB ~ 60dB (1kHz ~ 10kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-563 |
|
NCV78M15BDTGIC REG LINEAR 15V 500MA DPAK |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Obsolete | Positive | Fixed | 1 | 35V | 15V | - | - | 500mA | - | - | 70dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | DPAK |
|
|
NCP582LXV18T2GIC REG LINEAR 1.8V 150MA SOT563 |
15,000 |
|
Datasheet | - | SOT-563, SOT-666 | Bulk | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | 0.55V @ 150mA | 150mA | 95 µA | - | 70dB ~ 60dB (1kHz ~ 10kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-563 |
|
|
NCP582LXV30T2GIC REG LINEAR 3V 150MA SOT563 |
14,900 |
|
Datasheet | - | SOT-563, SOT-666 | Bulk | Obsolete | Positive | Fixed | 1 | 6V | 3V | - | 0.35V @ 150mA | 150mA | 95 µA | - | 70dB ~ 60dB (1kHz ~ 10kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-563 |
|
L78M06T-TR-EIC REG LINEAR |
14,700 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NCP582DXV25T2GIC REG LINEAR 2.5V 150MA SOT563 |
0 |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 0.5V @ 150mA | 150mA | 95 µA | - | 70dB ~ 60dB (1kHz ~ 10kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-563 |
|
NCP629FC15T2GIC REG LIN 1.5V 150MA 5FLIPCHIP |
0 |
|
Datasheet | - | 5-UFBGA, FCBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.5V | - | 0.225V @ 150mA | 150mA | 170 µA | - | 62dB ~ 38dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-FlipChip (1.028x1.19) |
|
NCP4586DSQ18T1GIC REG LINEAR 1.8V 150MA SC82AB |
9,000 |
|
- |
- | SC-82A, SOT-343 | Bulk | Obsolete | Positive | Fixed | 1 | 6.5V | 1.8V | - | 0.68V @ 150mA | 150mA | 58 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SC-82AB |
|
|
NCP582DXV15T2GIC REG LINEAR 1.5V 150MA SOT563 |
8,000 |
|
Datasheet | - | SOT-563, SOT-666 | Bulk | Obsolete | Positive | Fixed | 1 | 6V | 1.5V | - | 0.70V @ 150mA | 150mA | 95 µA | - | 70dB ~ 60dB (1kHz ~ 10kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-563 |
|
|
NCP502SQ27T2GIC REG LINEAR 2.7V 80MA SC88A |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 2.7V | - | 1.3V @ 80mA | 80mA | 40 µA | 90 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
MC7905ACTGIC REG LINEAR -5V 1A TO220AB |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Negative | Fixed | 1 | -35V | -5V | - | 1.3V @ 1A (Typ) | 1A | - | - | 70dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|

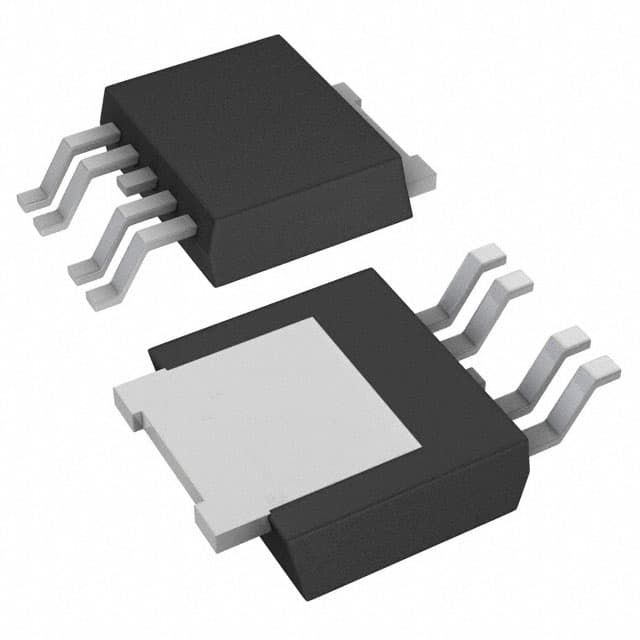

L78LR05DJ-TLIC REG LINEAR VOLTAGE 5V/250M |
4,900 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NCP582LXV33T2GIC REG LINEAR 3.3V 150MA SOT563 |
0 |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.35V @ 150mA | 150mA | 95 µA | - | 70dB ~ 60dB (1kHz ~ 10kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-563 |
|
|
MC33263NW-47R2IC REG LINEAR FIXED LDO REG |
4,000 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
