Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP5952TLX-0.7/NOPBIC REG LINEAR 0.7V 350MA 5DSBGA |
312,000 |
|
Datasheet | - | 5-WFBGA, DSBGA | Bulk | Obsolete | Positive | Fixed | 1 | 4.5V | 0.7V | - | 0.2V @ 350mA | 350mA | 28 µA | 100 µA | 80dB ~ 64dB (10Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 5-DSBGA (1.41x1.08) |
|
LP5990TMX-3.0/NOPBIC REG LINEAR 3V 200MA 4DSBGA |
0 |
|
Datasheet | - | 4-WFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.25V @ 200mA | 200mA | 75 µA | - | 55dB (10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 4-DSBGA |
|
NCP600SN150T1GIC REG LINEAR 1.5V 150MA 5TSOP |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.5V | - | - | 150mA | 170 µA | - | 62dB ~ 38dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-TSOP |
|
|
NCP600SN180T1GIC REG LINEAR 1.8V 150MA 5TSOP |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | - | 150mA | 175 µA | - | 62dB ~ 38dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-TSOP |
|
MC33375ST-5.0T3IC REG LINEAR 5V 300MA SOT223 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 13V | 5V | - | 0.5V @ 300mA | 300mA | 200 µA | - | 75dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223 (TO-261) |
.JPG)
|
LM317KCTIC REG LIN POS ADJ 1.5A TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | Positive | Adjustable | 1 | 40V | 1.25V | 37V | - | 1.5A | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
NCP4589DMX18TCGIC REG LINEAR 1.8V 300MA 6XDFN |
0 |
|
Datasheet | - | 6-XFDFN | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 1.8V | - | 0.5V @ 300mA | 300mA | 4 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 6-XDFN (1.2x1.2) |
|
|
MC33375ST-2.5T3IC REG LINEAR 2.5V 300MA SOT223 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 13V | 2.5V | - | 0.5V @ 300mA | 300mA | 200 µA | - | 75dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223 (TO-261) |
|
|
NCP600SN280T1GIC REG LINEAR 2.8V 150MA 5TSOP |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.8V | - | - | 150mA | 175 µA | - | 62dB ~ 38dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-TSOP |
|
|
NCP511SN15T1GIC REG LINEAR 1.5V 150MA 5TSOP |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.5V | - | 0.35V @ 100mA | 150mA | 40 µA | 100 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-TSOP |
|
LP5900TLX-1.9/NOPBIC REG LINEAR 1.9V 150MA 4DSBGA |
0 |
|
Datasheet | - | 4-WFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.9V | - | 0.15V @ 150mA | 150mA | 50 µA | 230 µA | 85dB ~ 40dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 4-DSBGA (1x1) |
|
|
LP3995ITLX-2.85/NOPBIC REG LINEAR 2.85V 150MA 5DSBGA |
0 |
|
Datasheet | - | 5-WFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.85V | - | 0.1V @ 150mA | 150mA | 150 µA | 200 µA | 60dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 5-DSBGA (1.41x1.08) |
|
|
NCP600SN350T1GIC REG LINEAR 3.5V 150MA 5TSOP |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.5V | - | - | 150mA | 180 µA | - | 62dB ~ 38dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-TSOP |
|
LP5900SDX-1.5/NOPBIC REG LINEAR 1.5V 150MA 6WSON |
0 |
|
- |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.15V @ 150mA | 150mA | 50 µA | 230 µA | 85dB ~ 40dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 6-WSON (2.2x2.5) |
|
NCP663SQ18T1GIC REG LINEAR 1.8V 100MA SC82AB |
0 |
|
Datasheet | - | SC-82A, SOT-343 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | 0.7V @ 100mA | 100mA | 1 µA | 6 µA | - | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-82AB |
|
|
LP5900TLX-2.0/NOPBIC REG LINEAR 2V 150MA 4DSBGA |
0 |
|
Datasheet | - | 4-WFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2V | - | 0.15V @ 150mA | 150mA | 50 µA | 230 µA | 85dB ~ 40dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 4-DSBGA (1x1) |
|
|
NCP600SN130T1GIC REG LINEAR 1.3V 150MA 5TSOP |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.3V | - | - | 150mA | 150 µA | - | 62dB ~ 38dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-TSOP |
|

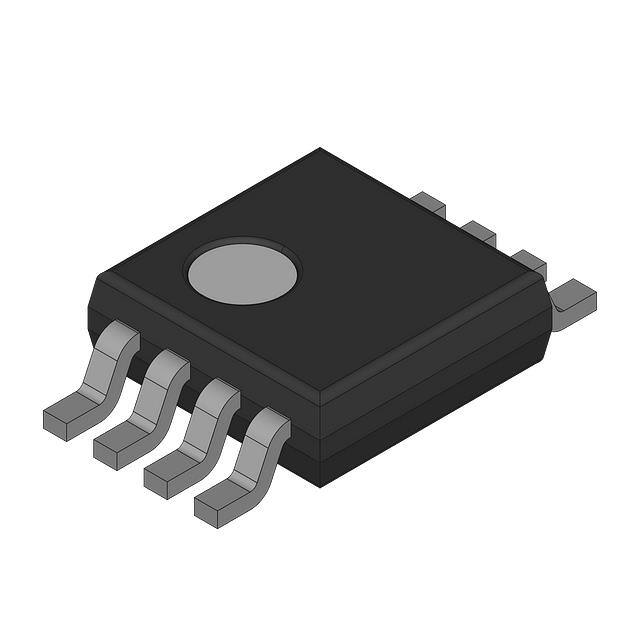

NCP4569DM28R2IC REG LINEAR FIXED LDO REG |
30,000 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NCP4569DM33R2IC REG LINEAR FIXED LDO REG |
30,000 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NCP4569DM30R2IC REG LINEAR FIXED LDO REG |
30,000 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
