Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV8170BMX310TCGIC REG LINEAR 3.1V 150MA 4XDFN |
5,000 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.1V | - | - | 150mA | 0.9 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 4-XDFN (1x1) |
|
|
NCV8170AMX120TCGIC REG LINEAR 1.2V 150MA 4XDFN |
4,935 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 150mA | 0.9 µA | - | 63dB ~ 57dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 4-XDFN (1x1) |
|
NCV8170BXV310T2GIC REG LINEAR 3.1V 150MA SOT563 |
3,938 |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.1V | - | - | 150mA | 0.9 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-563 |
|
NCP716MT25TBGIC REG LINEAR 2.5V 80MA 6WDFN |
3,085 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 2.5V | - | 0.64V @ 80mA | 80mA | 4.2 µA | 5.8 µA | 60dB (100kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WDFN (2x2) |
|
NCP716MT12TBGIC REG LINEAR 1.2V 80MA 6WDFN |
3,000 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 1.2V | - | - | 80mA | 4.2 µA | 5.8 µA | 63dB (100kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WDFN (2x2) |
|
|
NCP716MT15TBGIC REG LINEAR 1.5V 80MA 6WDFN |
3,000 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 1.5V | - | - | 80mA | 4.2 µA | 5.8 µA | 60dB (100kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WDFN (2x2) |
|
NCP163ASN270T1GIC REG LINEAR 2.7V 250MA SOT23-5 |
3,000 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.7V | - | - | 250mA | 20 µA | - | 91dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Short Circuit, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|

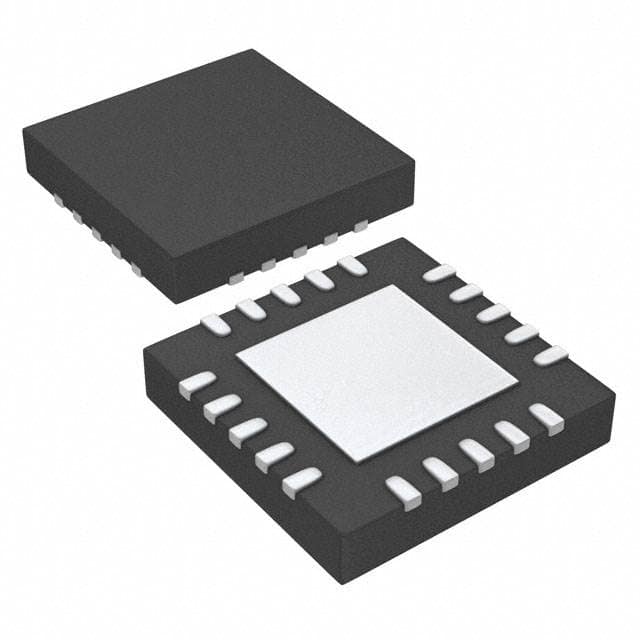

TPS74801QRGWRM3Q1AUTOMOTIVE, 1.5-A LOW-VIN (0.8 V |
3,000 |
|
- |
- | 20-VQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 3.6V | 0.165V @ 1.5A | 1.5A | 2 mA | - | 69dB ~ 49dB (1kHz ~ 300kHz) | Current Limit, Enable, Power Good, Soft Start | Over Current | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 20-VQFN (5x5) |
|
AP2121AK-1.8TRE1IC REG LINEAR 1.8V 200MA SOT23-5 |
2,990 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.5V @ 200mA | 200mA | 50 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
AP2121AK-2.8TRE1IC REG LINEAR 2.8V 200MA SOT23-5 |
2,990 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.5V @ 200mA | 200mA | 50 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
ZXTR2008K-13IC REG LINEAR 8.2V 55MA TO252 |
2,484 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 100V | 8.2V | - | - | 55mA | 500 µA | 900 µA | 38dB (100Hz) | - | - | -40°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | TO-252-3 |
|
|
NCP716MT18TBGIC REG LINEAR 1.8V 80MA 6WDFN |
2,075 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 1.8V | - | - | 80mA | 4.2 µA | 5.8 µA | 60dB (100kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WDFN (2x2) |
|
TPS7A2133BPYWDJ500-MA, LOW-NOISE ULTRA-LOW-IQ H |
11,990 |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 0.8V | 5.5V | 0.175V @ 500mA | 500mA | 15 µA | - | 90dB ~ 50dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DSBGA (0.6x0.6) |
|
AP7361C-18FGE-7IC REG LINEAR 1.8V 1A 8UDFN |
5,962 |
|
Datasheet | - | 8-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.57V @ 1A (Typ) | 1A | 80 µA | - | 75dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | U-DFN3030-8 (Type E) |
|
TPS7A14105PDRVR1-A, LOW INPUT AND OUTPUT VOLTAG |
2,984 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 1.05V | - | 0.099V @ 1A | 1A | 43 µA | - | 90dB ~ 24dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS7A1412PDRVR1-A, LOW INPUT AND OUTPUT VOLTAG |
2,859 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 1.2V | - | 0.099V @ 1A | 1A | 43 µA | - | 90dB ~ 24dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS7A1410PDRVR1-A, LOW INPUT AND OUTPUT VOLTAG |
2,847 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 1V | - | 0.099V @ 1A | 1A | 43 µA | - | 90dB ~ 24dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS7A1409PDRVR1-A, LOW INPUT AND OUTPUT VOLTAG |
2,794 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 0.9V | - | 0.099V @ 1A | 1A | 43 µA | - | 90dB ~ 24dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS7A1418PDRVR1-A, LOW INPUT AND OUTPUT VOLTAG |
2,772 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 1.8V | - | 0.099V @ 1A | 1A | 43 µA | - | 90dB ~ 24dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
LP2985IM5-3.3/NOM3150-MA, 16-V, LOW-DROPOUT VOLTAG |
2,515 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.575V @ 150mA | 150mA | 95 µA | 2 mA | 70dB ~ 40dB (1kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
