Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT3024IFE#PBFIC REG LINEAR POS ADJ 16TSSOP |
0 |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Positive | Adjustable | 2 | 20V | 1.22V | 20V | 0.45V @ 100mA, 0.45V @ 500mA | 100mA, 500mA | - | - | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-TSSOP-EP |
|
TPS73630MDBVREPIC REG LINEAR 3V 400MA SOT23-5 |
2,780 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.2V @ 400mA | 400mA | 550 µA | 1 mA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
ADP3330ARTZ-3.6-R7IC REG LINEAR 3.6V 200MA SOT23-6 |
1,978 |
|
Datasheet | anyCAP® | SOT-23-6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 3.6V | - | 0.23V @ 200mA | 200mA | 50 µA | 4 mA | - | Error Flag, Shutdown | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
ADP1740ACPZ-1.3-R7IC REG LINEAR 1.3V 2A 16LFCSP |
1,350 |
|
Datasheet | - | 16-WQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 1.3V | - | 0.28V @ 2A | 2A | 800 µA | 1.8 mA | - | Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit, Reverse Polarity, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-LFCSP (4x4) |
|
LP3855ESX-ADJ/NOPBIC REG LINEAR POS ADJ 1.5A DDPAK |
267 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 7V | 1.23V | 6.6V | 0.435V @ 1.5A | 1.5A | 3 mA | 10 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
MIC39152WUIC REG LIN POS ADJ 1.5A TO263-5 |
150 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Positive | Adjustable | 1 | 16V | 1.24V | 15.5V | 0.5V @ 1.5A | 1.5A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|

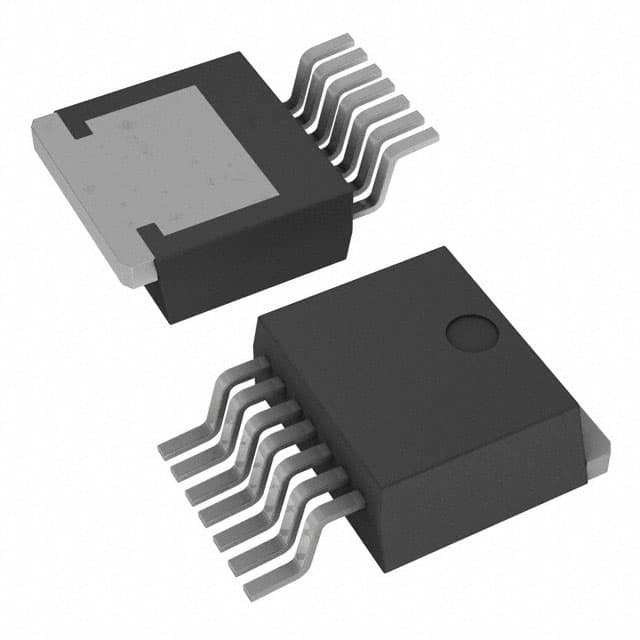

BD4271FP2-CE2IC REG LINEAR 5V 550MA TO263-7 |
334 |
|
Datasheet | - | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 300mA | 550mA | 150 µA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-263-7 |
|
|
LP3852ESX-1.8/NOPBIC REG LINEAR 1.8V 1.5A DDPAK |
493 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 7V | 1.8V | - | 0.38V @ 1.5A | 1.5A | 3 mA | 10 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3852ESX-2.5/NOPBIC REG LINEAR 2.5V 1.5A DDPAK |
441 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 7V | 2.5V | - | 0.38V @ 1.5A | 1.5A | 3 mA | 10 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3876ESX-1.8/NOPBIC REG LIN 1.8V 3A DDPAK/TO263-5 |
490 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 7V | 1.8V | - | 1.2V @ 3A | 3A | 5 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3856ESX-1.8/NOPBIC REG LIN 1.8V 3A DDPAK/TO263-5 |
1,323 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 7V | 1.8V | - | 0.6V @ 3A | 3A | 4 mA | 10 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP38513SX-1.8/NOPBIC REG LIN 1.8V 3A DDPAK/TO263-5 |
910 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.43V @ 3A | 3A | 10 mA | 20 mA | 73dB ~ 70dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP38859SX-1.2/NOPBIC REG LIN 1.2V 3A DDPAK/TO263-5 |
364 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.45V @ 3A | 3A | 8.5 mA | 15 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3876ESX-2.5/NOPBIC REG LIN 2.5V 3A DDPAK/TO263-5 |
304 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 7V | 2.5V | - | 1.2V @ 3A | 3A | 5 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3966ESX-2.5/NOPBIC REG LIN 2.5V 3A DDPAK/TO263-5 |
212 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 7V | 2.5V | - | 1.2V @ 3A | 3A | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3963ESX-2.5/NOPBIC REG LIN 2.5V 3A DDPAK/TO263-5 |
181 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 7V | 2.5V | - | 1.2V @ 3A | 3A | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
LT1761IS5-2.8#TRMPBFIC REG LIN 2.8V 100MA TSOT23-5 |
1,996 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 2.8V | - | 0.45V @ 100mA | 100mA | - | - | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
LT3007ETS8#TRMPBFIC REG LIN POS ADJ 20MA TSOT23-8 |
379 |
|
Datasheet | - | SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 45V | 0.6V | 44.5V | 0.5V @ 20mA | 20mA | 6 µA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-8 |
|
TPS75415QPWPIC REG LINEAR 1.5V 2A 20HTSSOP |
95 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Bulk | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | - | 2A | 125 µA | - | 60dB (100Hz) | Enable, Power Good, Reset Output | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
|
LP3873ESX-1.8/NOPBIC REG LIN 1.8V 3A DDPAK/TO263-5 |
339 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 7V | 1.8V | - | 1.2V @ 3A | 3A | 9 mA | 15 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
