Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLE42794GXUMA2IC REG LINEAR 5V 100MA DSO8 |
2,369 |
|
Datasheet | OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 100mA | 280 µA | 8 mA | 70dB (100Hz) | Reset | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
L4979DTR-EIC REG LINEAR 5V 150MA 8SO |
201 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | - | 5V | - | - | 150mA | 1.5 mA | 3 mA | - | Enable, Reset, Watchdog | - | -40°C ~ 150°C | - | - | Surface Mount | 8-SOIC |
|
TPS72201DBVRIC REG LIN POS ADJ 50MA SOT23-5 |
648 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 1.22V | 2.5V | 0.1V @ 50mA | 50mA | 120 µA | 550 µA | 48dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
TPS72216DBVTIC REG LINEAR 1.6V 50MA SOT23-5 |
754 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.6V | - | 0.1V @ 50mA | 50mA | 120 µA | 550 µA | 48dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
TPS77027DBVTIC REG LINEAR 2.7V 50MA SOT23-5 |
570 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 2.7V | - | - | 50mA | 28 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
TLS810B1EJV33XUMA1IC REG LIN 3.3V 100MA 8DSO E-PAD |
2,496 |
|
Datasheet | OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3.3V | - | 0.65V @ 100mA | 100mA | 10 µA | 15 µA | 60dB (100Hz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
LM1117LDX-1.8/NOPBIC REG LINEAR 1.8V 800MA 8WSON |
5,119 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 1.8V | - | 1.2V @ 800mA | 800mA | 5 mA | 10 mA | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 8-WSON (4x4) |
|
MCP1722T-3312H/Q8BIC DUAL LDO 3.3V/12VOUT VDFN |
6,000 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 55V | 3.3V, 1.2V | - | 0.75V @ 50mA, 0.75V @ 100mA | 50mA, 100mA | 80 µA | - | 80dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-VDFN (3x3) |
|
|
MCP1722T-3310H/Q8BIC DUAL LDO 3.3V/10VOUT VDFN |
5,995 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 55V | 3.3V, 10V | - | 0.75V @ 50mA, 0.75V @ 100mA | 50mA, 100mA | 80 µA | - | 80dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-VDFN (3x3) |
|
|
MCP1722T-5012H/Q8BIC DUAL LDO 5.0V/12VOUT VDFN |
5,923 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 55V | 12V, 5V | - | 0.75V @ 50mA, 0.75V @ 100mA | 50mA, 100mA | 80 µA | - | 80dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-VDFN (3x3) |
|
|
MCP1722T-5010H/Q8BIC DUAL LDO 5.0V/10VOUT VDFN |
5,739 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 55V | 10V, 5V | - | 0.75V @ 50mA, 0.75V @ 100mA | 50mA, 100mA | 80 µA | - | 80dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-VDFN (3x3) |
|
L5050SDTRIC REG LIN 5V/5V 50MA/50MA 8SO |
2,437 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 40V | 5V, 5V | - | 0.5V @ 50mA | 50mA, 50mA | 50 µA | 4.2 mA | 60dB (100Hz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SO |
|

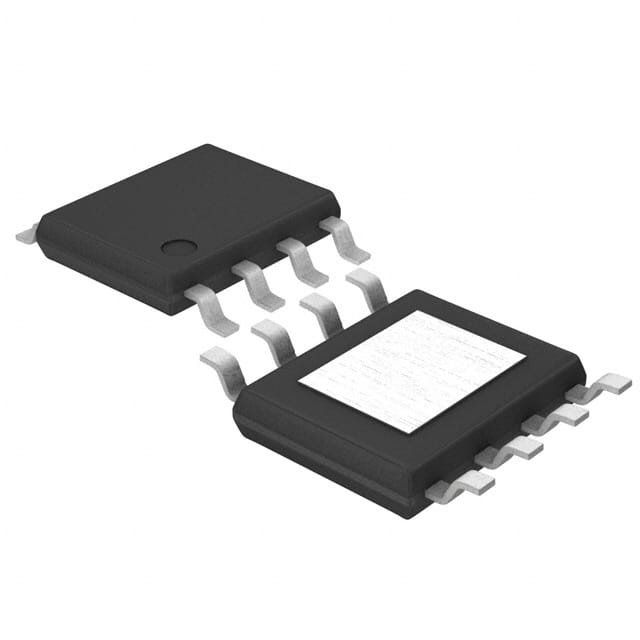

BD50HA3MEFJ-ME2IC REG LINEAR 5V 1.5A 8HTSOP |
828 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 5V | - | 1.2V @ 300mA | 300mA | - | 1.2 mA | - | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
MCP1722-3310H/Q8BIC DUAL LDO 3.3V/10VOUT VDFN |
465 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tube | Active | Positive | Fixed | 2 | 55V | 3.3V, 10V | - | 0.75V @ 50mA, 0.75V @ 100mA | 50mA, 100mA | 80 µA | - | 80dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-VDFN (3x3) |
|
|
MCP1722-5012H/Q8BIC DUAL LDO 5.0V/12VOUT VDFN |
429 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tube | Active | Positive | Fixed | 2 | 55V | 12V, 5V | - | 0.75V @ 50mA, 0.75V @ 100mA | 50mA, 100mA | 80 µA | - | 80dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-VDFN (3x3) |
|
NCV8560SN180T1GIC REG LINEAR 1.8V 150MA 5TSOP |
373 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | - | 150mA | 175 µA | - | 62dB ~ 38dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
BD30GC0WEFJ-E2IC REG LINEAR 3V 1A 8HTSOP |
2,607 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 3V | - | 0.92V @ 1A | 1A | 0.6 mA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD80GC0WEFJ-E2IC REG LINEAR 8V 1A 8HTSOP |
2,490 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 8V | - | 0.92V @ 1A | 1A | 0.6 mA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD18GC0WEFJ-E2IC REG LINEAR 1.8V 1A 8HTSOP |
2,250 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 1.8V | - | 0.92V @ 1A | 1A | 0.6 mA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
TPS728120150DRVTIC REG LIN 1.2V/1.5V 200MA 6WSON |
668 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 1.2V, 1.5V | - | 0.4V @ 200mA | 200mA | 80 µA | 120 µA | 65dB ~ 40dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
