Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC5239-5.0YMIC REG LINEAR 5V 500MA 8SOIC |
2,240 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 30V | 5V | - | 0.35V @ 500mA (Typ) | 500mA | 45 µA | 15 mA | - | Enable | Over Current, Over Temperature, Over Voltage, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
TPS7333QPIC REG LINEAR 3.3V 500MA 8DIP |
519 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Bulk | Active | Positive | Fixed | 1 | 10V | 3.3V | - | 0.4V @ 500mA | 500mA | - | 550 µA | 51dB ~ 49dB (120Hz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | 8-PDIP |
|
LP3874EMP-5.0/NOPBIC REG LINEAR 5V 800MA SOT223-5 |
552 |
|
Datasheet | - | TO-261-5, TO-261AB | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 7V | 5V | - | 0.35V @ 800mA | 800mA | 9 mA | 15 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
LP2957ISX/NOPBIC REG LIN 5V 250MA DDPAK/TO263 |
391 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 5V | - | 0.8V @ 250mA | 250mA | 200 µA | 33 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
TPS76801QDRIC REG LINEAR POS ADJ 1A 8SOIC |
6,508 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 10V | 1.2V | 5.5V | - | 1A | 125 µA | - | 60dB (1kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
,TO-226_straightlead.jpg)
|
TL750L05CLPE3IC REG LINEAR 5V 150MA TO92-3 |
1,265 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 150mA | 150mA | 2 mA | 12 mA | 65dB (120Hz) | - | Over Current, Over Temperature, Over Voltage, Reverse Polarity | 0°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
LP3962ET-3.3/NOPBIC REG LINEAR 3.3V 1.5A TO220-5 |
134 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Active | Positive | Fixed | 1 | 7V | 3.3V | - | 0.55V @ 1.5A | 1.5A | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
ADP1720ARMZ-R7IC REG LINEAR POS ADJ 50MA 8MSOP |
114 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 28V | 1.225V | 5V | 0.48V @ 50mA | 50mA | 80 µA | 2.115 mA | 90dB ~ 50dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
TL1963A-18DCQRIC REG LINEAR 1.8V 1.5A SOT223-6 |
4,088 |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 1.8V | - | 0.55V @ 1.5A | 1.5A | 1 mA | 80 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
BD00C0AWCP-V5E2IC REG LIN POS ADJ 1A TO220CP-V5 |
389 |
|
Datasheet | - | TO-220-5 Full Pack, Formed Leads | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 26.5V | 3V | 15V | 0.5V @ 500mA | 1A | 1 mA | 1 mA | 55dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 150°C (TA) | - | - | Through Hole | TO220CP-V5 |
|
TPS79501QDRBRQ1IC REG LINEAR POS ADJ 500MA 8SON |
783 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 1.2V | 5.5V | - | 500mA | 385 µA | - | 59dB ~ 39dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-SON (3x3) |
|
MIC29310-3.3WU-TRIC REG LINEAR 3.3V 3A TO263-3 |
688 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 1V @ 3A | 3A | 20 mA | 150 mA | - | - | Over Current, Over Temperature, Reverse Polarity | 0°C ~ 125°C | - | - | Surface Mount | TO-263-3 |
|
|
TPS77501DIC REG LIN POS ADJ 500MA 8SOIC |
311 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Adjustable | 1 | 10V | 1.5V | 5.5V | - | 500mA | 125 µA | - | 60dB (100Hz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
TPS77515DIC REG LINEAR 1.5V 500MA 8SOIC |
412 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 10V | 1.5V | - | - | 500mA | 125 µA | - | 60dB (100Hz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
TPS7A7100RGWTIC REG LIN POS ADJ 1A 20VQFN |
2,975 |
|
Datasheet | - | 20-VQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 6.5V | 0.9V | 5V | 0.35V @ 1A | 1A | 4 mA | - | - | Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 20-VQFN (5x5) |
|
ADP220ACBZ-2818R7IC REG LINEAR 1.8V/2.8V 6WLCSP |
1,851 |
|
Datasheet | - | 6-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 1.8V, 2.8V | - | -, 0.23V @ 200mA | 200mA | 120 µA | 220 µA | 68dB ~ 40dB (100Hz ~ 1MHz), - | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.45x0.95) |
|
TPS77533PWPIC REG LIN 3.3V 500MA 20HTSSOP |
415 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tube | Active | Positive | Fixed | 1 | 10V | 3.3V | - | 0.29V @ 500mA | 500mA | 125 µA | - | 60dB (100Hz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
|
TPS77733DRIC REG LINEAR 3.3V 750MA 8SOIC |
7,324 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 3.3V | - | 0.43V @ 750mA | 750mA | 125 µA | - | 60dB (1kHz) | Enable, Power Good, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|

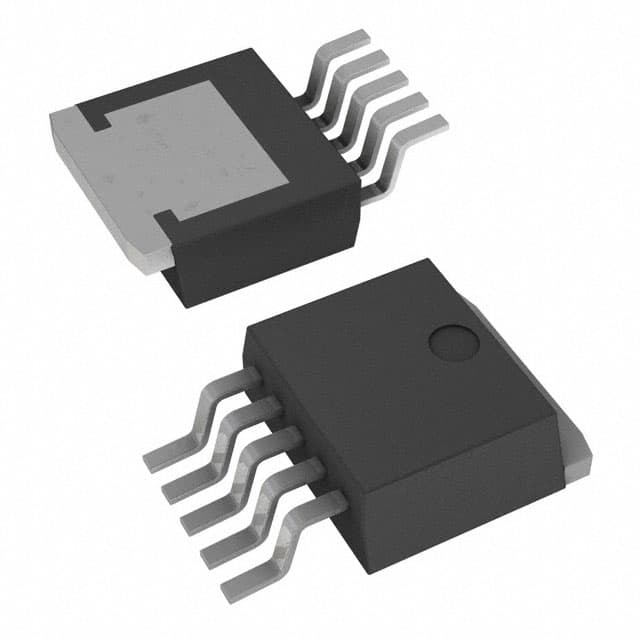

BD42754FP2-CE2IC REG LINEAR 5V 500MA TO263-5 |
2,307 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 300mA | 500mA | 150 µA | - | 60dB (120Hz) | - | Over Current, Thermal Shutdown, UVLO | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | TO-263-5 |
|
BDJ5FD0WHFP-TR2A 15V, FIXED OUTPUT, HIGH-ACCUR |
1,965 |
|
Datasheet | - | HRP-5 (5 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 32V | 15V | - | 0.55V @ 1A | 2A | 1 mA | - | 50dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | - | - | Surface Mount | HRP-5 |
