Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADP172ACBZ-1.0-R7IC REG LINEAR 1V 300MA 4WLCSP |
2,168 |
|
Datasheet | - | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 1V | - | - | 300mA | 60 µA | 260 nA | 73dB ~ 47dB (1kHz ~ 100kHz) | Enable | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.95x1.03) |
|
|
ADP172ACBZ-3.0-R7IC REG LINEAR 3V 300MA 4WLCSP |
894 |
|
Datasheet | - | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 3V | - | 0.1V @ 300mA | 300mA | 60 µA | 260 nA | 73dB ~ 47dB (1kHz ~ 100kHz) | Enable | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.95x1.03) |
|
|
ADP172ACBZ-2.9-R7IC REG LINEAR 2.9V 300MA 4WLCSP |
0 |
|
Datasheet | - | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 2.9V | - | 0.1V @ 300mA | 300mA | 60 µA | 260 nA | 73dB ~ 47dB (1kHz ~ 100kHz) | Enable | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.95x1.03) |
|
TPS76430DBVTIC REG LINEAR 3V 150MA SOT23-5 |
625 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 3V | - | - | 150mA | 100 µA | 140 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
NCP3335AMN330R2GIC REG LINEAR 3.3V 500MA 10DFN |
4,337 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.34V @ 500mA | 500mA | 190 µA | 14 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
TPS79433DGNRIC REG LIN 3.3V 250MA 8MSOP PWR |
1,846 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.2V @ 250mA | 250mA | 220 µA | - | 65dB ~ 40dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-HVSSOP |
|
NCV8703MX18TCGIC REG LINEAR 1.8V 300MA 6XDFN |
2,119 |
|
Datasheet | - | 6-XFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 300mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-XDFN (1.5x1.5) |
|
LP2986AIM-3.0/NOPBIC REG LINEAR 3V 200MA 8SOIC |
451 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 16V | 3V | - | 0.35V @ 200mA | 200mA | 120 µA | 3.7 mA | 65dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|

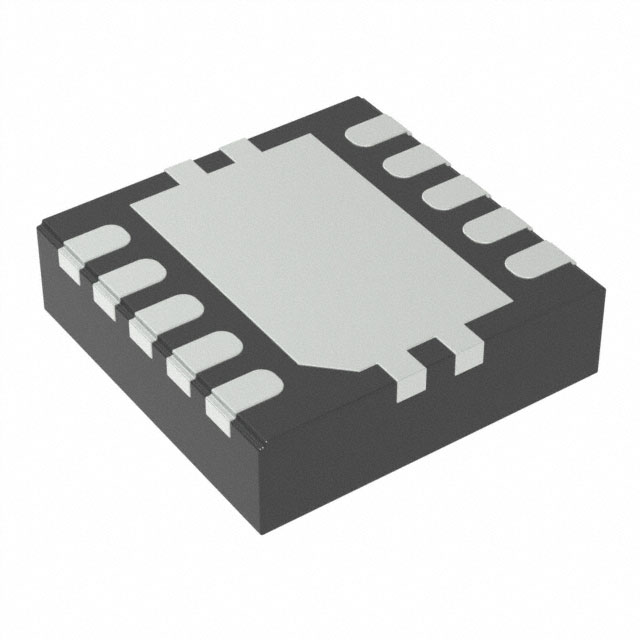

LD59150PURYIC REG LINEAR POS ADJ 1.5A 10DFN |
3,475 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 3.6V | 0.125V @ 1.5A | 1.5A | - | - | 70db ~ 30dB (1kHz ~ 300kHz) | Enable, Power Good | Current Limit, Thermal Shutdown, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount, Wettable Flank | 10-DFN (3x3) |
|
ADP160AUJZ-2.8-R7IC REG LINEAR 2.8V 150MA TSOT5 |
12,515 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | - | 150mA | 1.25 µA | 65 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
|
ADP170AUJZ-1.8-R7IC REG LINEAR 1.8V 300MA TSOT5 |
10,127 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 1.8V | - | 0.135V @ 300mA | 300mA | 60 µA | 260 µA | 73dB ~ 47dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
|
ADP171AUJZ-REELIC REG LIN POS ADJ 300MA TSOT23 |
9,360 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 3.6V | 0.8V | 3V | 0.135V @ 300mA | 300mA | 60 µA | 260 µA | 73dB ~ 47dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-5 |
|
|
ADP162AUJZ-2.8-R7IC REG LINEAR 2.8V 150MA TSOT5 |
9,212 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | - | 150mA | 1.25 µA | 65 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
|
ADP151AUJZ-2.8-R7IC REG LINEAR 2.8V 200MA TSOT5 |
7,272 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.23V @ 200mA | 200mA | 20 µA | 350 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
|
ADP130AUJZ-1.5-R7IC REG LINEAR 1.5V 350MA TSOT5 |
2,733 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 1.5V | - | - | 350mA | 44 µA | 220 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
|
ADP130AUJZ-1.2-R7IC REG LINEAR 1.2V 350MA TSOT5 |
2,374 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 1.2V | - | - | 350mA | 44 µA | 220 µA | 70dB ~ 54dB (10kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
NCV5500DT50RKGIC REG LINEAR 5V 500MA DPAK-5 |
1,628 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.7V @ 500mA | 500mA | 500 µA | 20 mA | 75dB ~ 70dB (120hZ ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
|
ADP130AUJZ-2.5-R7IC REG LINEAR 2.5V 350MA TSOT5 |
1,405 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 2.5V | - | - | 350mA | 44 µA | 220 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
|
ADP130AUJZ-1.8-R7IC REG LINEAR 1.8V 350MA TSOT5 |
1,139 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 1.8V | - | - | 350mA | 44 µA | 220 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
|
ADP162AUJZ-2.5-R7IC REG LINEAR 2.5V 150MA TSOT5 |
805 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | - | 150mA | 1.25 µA | 65 µA | 65dB ~ 50dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
