Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM1086IT-3.3/NOPBIC REG LINEAR 3.3V 1.5A TO220-3 |
2,879 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 27V | 3.3V | - | 1.5V @ 1.5A | 1.5A | 5 mA | 10 mA | 72dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
MIC5270-4.1YM5-TRIC REG LIN -4.1V 100MA SOT23-5 |
1,391 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -16V | -4.1V | - | 0.9V @ 100mA | 100mA | 100 µA | 3 mA | 50dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
LM1086CT-5.0/NOPBIC REG LINEAR 5V 1.5A TO220-3 |
982 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 25V | 5V | - | 1.5V @ 1.5A | 1.5A | 5 mA | 10 mA | 68dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
LM1086IT-5.0/NOPBIC REG LINEAR 5V 1.5A TO220-3 |
715 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 25V | 5V | - | 1.5V @ 1.5A | 1.5A | 5 mA | 10 mA | 68dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
TLE4274V50AKSA2IC REG LINEAR 5V 400MA TO220-3-1 |
285 |
|
Datasheet | OPTIREG™ | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Through Hole | PG-TO220-3-1 |
|
BD33C0AFP-CE2IC REG LINEAR 3.3V 1A TO252-3 |
10,226 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26.5V | 3.3V | - | 0.5V @ 500mA | 1A | 2.5 mA | 2.5 mA | 55dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-3 |
|
|
BD50C0AFP-CE2IC REG LINEAR 5V 1A TO252-3 |
5,819 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26.5V | 5V | - | 0.5V @ 500mA | 1A | 2.5 mA | 2.5 mA | 55dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252 |
|
TPS7A3701DRVTIC REG LINEAR POS ADJ 1A 6WSON |
4,046 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 1.2V | 5.37V | 0.2V @ 1A | 1A | 400 µA | 1.3 mA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
|
BD90C0AFP-CE2IC REG LINEAR 9V 1A TO252-3 |
2,125 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26.5V | 9V | - | 0.5V @ 500mA | 1A | 2.5 mA | 2.5 mA | 50dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-3 |
|
LP38512MR-ADJ/NOPBIC REG LIN POS ADJ 1.5A 8SO |
9,682 |
|
Datasheet | - | 8-PowerSOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Adjustable | 1 | 5.5V | 0.5V | 4.5V | 0.3V @ 1.5A | 1.5A | 7.5 mA | 14 mA | 70dB ~ 73dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SO PowerPad |
|
ADP151ACBZ-1.8-R7IC REG LINEAR 1.8V 200MA 4WLCSP |
24,636 |
|
Datasheet | - | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 200mA | 20 µA | 350 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.76x0.76) |
|
NCV4266-2CST50T3GIC REG LINEAR 5V 150MA SOT223 |
22,119 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 150mA | 60 µA | 4 mA | 68dB (100Hz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | SOT-223 (TO-261) |
|
MIC69103YML-TRIC REG LINEAR POS ADJ 1A 10MLF |
12,149 |
|
Datasheet | - | 10-VFDFN Exposed Pad, 10-MLF® | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.5V | 5.5V | 0.5V @ 1A | 1A | - | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 10-MLF® (3x3) |
|

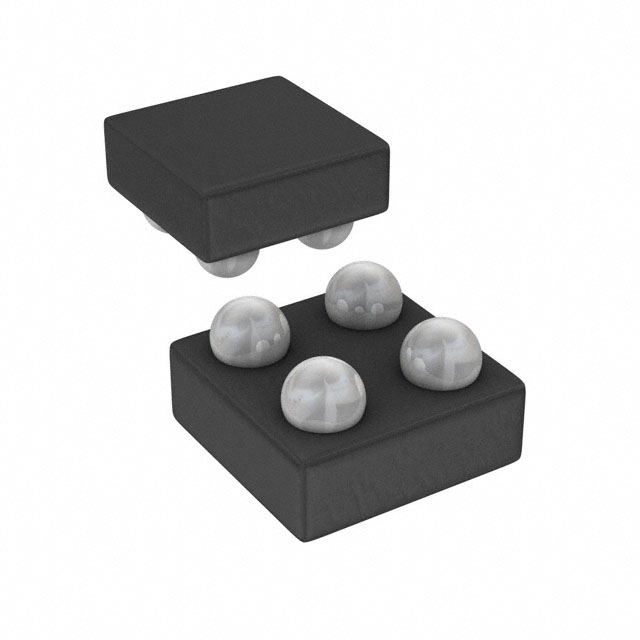

ADP160ACBZ-2.5-R7IC REG LINEAR 2.5V 150MA 4WLCSP |
10,429 |
|
Datasheet | - | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | - | 150mA | 1.25 µA | 65 µA | 65dB ~ 50dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
|
MIC69101-1.8YML-TRIC REG LINEAR 1.8V 1A 10MLF |
10,000 |
|
Datasheet | - | 10-VFDFN Exposed Pad, 10-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.5V @ 1A | 1A | - | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 10-MLF® (3x3) |
|
|
ADP160ACBZ-1.8-R7IC REG LINEAR 1.8V 150MA 4WLCSP |
2,768 |
|
Datasheet | - | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 150mA | 1.25 µA | 65 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
ADP151ACPZ-2.5-R7IC REG LINEAR 2.5V 200MA 6LFCSP |
1,012 |
|
Datasheet | - | 6-UDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.23V @ 200mA | 200mA | 20 µA | 350 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-LFCSP-UD (2x2) |
|
|
ADP151ACPZ-1.8-R7IC REG LINEAR 1.8V 200MA 6LFCSP |
917 |
|
Datasheet | - | 6-UDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 200mA | 20 µA | 350 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-LFCSP-UD (2x2) |
|
MIC39101-3.3YM-TRIC REG LINEAR 3.3V 1A 8SOIC |
10,567 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.63V @ 1A | 1A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
LM1086ISX-5.0/NOPBIC REG LIN 5V 1.5A DDPAK/TO263-3 |
8,035 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 25V | 5V | - | 1.5V @ 1.5A | 1.5A | 5 mA | 10 mA | 68dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
