Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

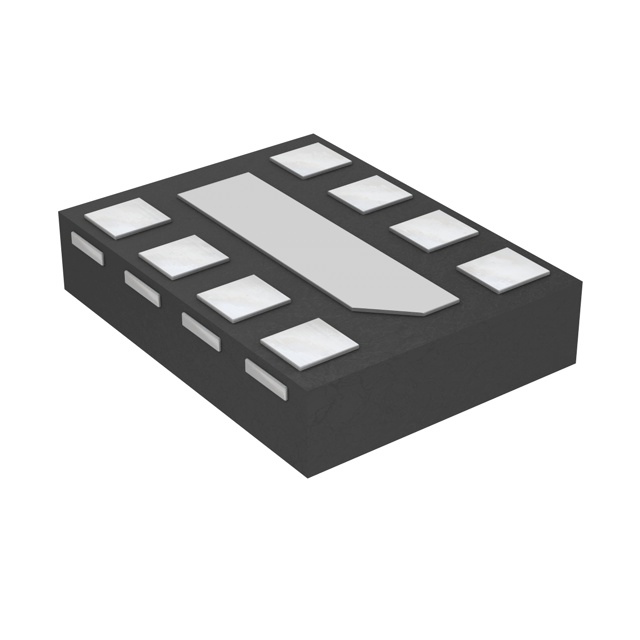

AP7345D-2818RH4-7IC REG LIN 2.8V/1.8V 300MA 8DFN |
0 |
|
Datasheet | - | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.25V | 2.8V, 1.8V | - | 0.3V @ 300mA, 0.39V @ 300mA | 300mA, 300mA | 140 µA | 70 µA | 75dB (1kHz) | Current Limit, Enable | Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | X2-DFN1612-8 |
|
MIC47050-1.2YML-TRVAOIC REG LINEAR 1.2V 500MA 6MLF |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 1.2V | - | 0.12V @ 500mA | 500mA | 15 µA | - | 50dB ~ 37dB (10kHz ~ 100kHz) | Enable, Power Good | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
|
MIC47050-1.8YML-TRVAOIC REG LINEAR 1.8V 500MA 6MLF |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 1.8V | - | 0.12V @ 500mA | 500mA | 15 µA | - | 50dB ~ 37dB (10kHz ~ 100kHz) | Enable, Power Good | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
MIC5233YM5-TRVAOIC REG LIN POS ADJ 100MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 36V | 1.24V | 20V | 0.45V @ 100mA | 100mA | 35 µA | 2 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
IFX25001MEV33HTSA2IC REG LIN 3.3V 400MA SOT223-4 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 40V | 3.3V | - | 1.2V @ 300mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | PG-SOT223-4 |
|
NCP115CMX110TBGIC REG LINEAR 1.1V 300MA 4XDFN |
0 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.1V | - | - | 300mA | 95 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-XDFN (1x1) |
|
LDLN050PU33RYIC REG LINEAR 3.3V 500MA 8DFN |
0 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.5V @ 500mA | 500mA | 65 µA | 120 µA | 65dB ~ 38dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | - | - | Surface Mount, Wettable Flank | 8-DFN (3x3) |
|
|
NCP105AMX180TBGIC REG LINEAR 1.8V 150MA 4XDFN |
0 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.33V @ 150mA | 150mA | 95 µA | - | 70dB (1kHz) | Enable | Current Limit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-XDFN (1x1) |
|
TC1102IC REG LINEAR BUCK SMD |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MCP1799T-3302H/DBVAOIC REG LINEAR 3.3V 80MA SOT223-3 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 3.3V | - | 0.3V @ 80mA | 80mA | 45 µA | 110 µA | 70dB ~ 35dB (100Hz ~ 100kHz) | Shutdown | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-223-3 |
|
BA050LBSG-TRIC REG LINEAR 5V 150MA SMP5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 5V | - | 0.15V @ 50mA | 150mA | 150 µA | - | 66dB ~ 56dB (400Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SMP5 |
|
|
BA040LBSG-TRIC REG LINEAR 4V 150MA SMP5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 4V | - | 0.15V @ 50mA | 150mA | 150 µA | - | 66dB ~ 56dB (400Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SMP5 |
|
BA033LBSG-TRIC REG LINEAR 3.3V 150MA SMP5 |
0 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 0.15V @ 50mA | 150mA | 15 µA | - | 66dB ~ 58dB (400Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SMP5 |
|
|
SG7912AIGIC REG LINEAR -12V 1.5A TO257 |
0 |
|
Datasheet | - | TO-257-3 | Tray | Active | Negative | Fixed | 1 | -40V | -12V | - | 1.1V @ 500mA | 1.5A | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-257 |
|
|
SG7815AG-DESCIC REG LINEAR TO257 |
0 |
|
Datasheet | - | TO-257-3 | Tray | Active | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | TO-257 |
|
|
SG117AG-DESCIC REG LINEAR POS ADJ 1.5A TO257 |
0 |
|
Datasheet | - | TO-257-3 | Tray | Active | Positive | Adjustable | 1 | 37V | 1.25V | 37V | - | 1.5A | - | - | 65dB ~ 80dB (120Hz) | - | Over Current | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-257 |
|
|
SG7915AIGIC REG LINEAR -15V 1.5A TO257 |
0 |
|
Datasheet | - | TO-257-3 | Tray | Active | Negative | Fixed | 1 | -40V | -15V | - | 1.1V @ 500mA | 1.5A | - | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-257 |
|
|
SG7812AL-883BIC REG LINEAR 12V 1.5A 20CLCC |
0 |
|
Datasheet | - | 20-CLCC | Tray | Active | Positive | Fixed | 1 | 50V | 12V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | - | Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Surface Mount | 20-CLCC (8.89x8.89) |
|
|
SG117HVG-DESCIC REG LINEAR POS ADJ 1.5A TO257 |
0 |
|
Datasheet | - | TO-257-3 | Tray | Active | Positive | Adjustable | 1 | 37V | 1.25V | 37V | - | 1.5A | - | - | 65dB ~ 80dB (120Hz) | - | Over Current | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-257 |
|
|
SG7812AL-DESCIC REG LINEAR 12V 1.5A 20CLCC |
0 |
|
Datasheet | - | 20-CLCC | Tray | Active | Positive | Fixed | 1 | 50V | 12V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | - | Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Surface Mount | 20-CLCC (8.89x8.89) |
