Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCD7815BTGIC REG LINEAR 15V 1A TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 15V | - | 2V @ 1A (Typ) | 1A | - | - | 58dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
|
SCD7824BTGIC REG LINEAR 24V 1A TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 40V | 24V | - | 2V @ 1A (Typ) | 1A | - | - | 54dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
NCP134AMX100TCGIC REG LINEAR 1V 500MA 4XDFN |
0 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1V | - | 0.25V @ 500mA | 500mA | - | - | 80dB ~ 70dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-XDFN (1.2x1.2) |
|
NCP720BMT100TBGIC REG LINEAR 1V 350MA 6WDFN |
0 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1V | - | 1.4V @ 350mA | 350mA | - | - | 65dB ~ 25dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WDFN (2x2) |
|
IFX1763LDV33XUMA1IC REG LINEAR 3.3V 500MA TSON-10 |
0 |
|
Datasheet | - | 10-TFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 3.3V | - | 0.45V @ 500mA | 500mA | 60 µA | 31 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | PG-TSON-10 |
|
|
IFX1763LDV50XUMA1IC REG LINEAR 5V 500MA TSON-10 |
0 |
|
Datasheet | - | 10-TFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 0.48V @ 500mA | 500mA | 60 µA | 31 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | PG-TSON-10 |
|
IFX54441LDV33XUMA1IC REG LINEAR 3.3V 300MA TSON-10 |
0 |
|
Datasheet | - | 10-TFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 3.3V | - | 0.4V @ 300mA | 300mA | 60 µA | 12 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | PG-TSON-10 |
|
IFX54441LDV50XUMA1IC REG LINEAR 5V 300MA TSON-10 |
0 |
|
Datasheet | - | 10-TFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 0.41V @ 300mA | 300mA | 60 µA | 12 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | PG-TSON-10 |
|
|
IFX54441LDVXUMA1IC REG LIN POS ADJ 300MA TSON-10 |
0 |
|
Datasheet | - | 10-TFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 20V | 1.22V | 20V | 0.4V @ 300mA | 300mA | 60 µA | 12 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | PG-TSON-10 |
|

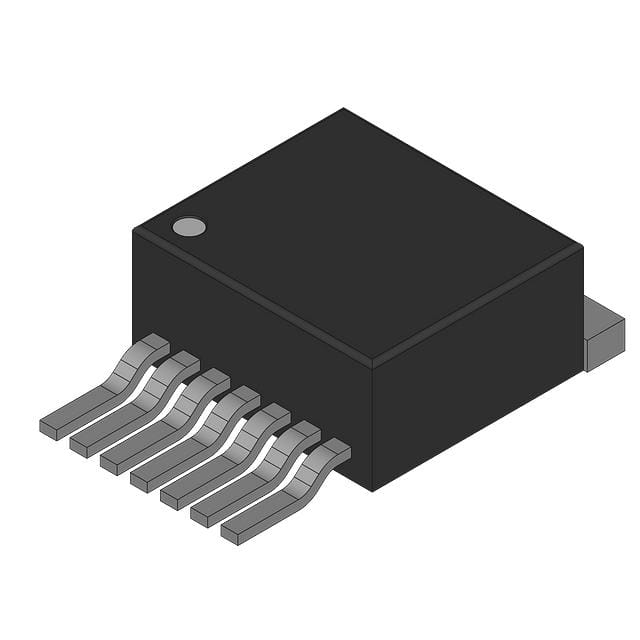

TLE42672GATMA2IC REG LINEAR 5V 400MA TO263-7-1 |
0 |
|
Datasheet | OPTIREG™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 400mA | 400mA | 4 mA | 80 mA | 54dB (100Hz) | Inhibit, Reset | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO263-7-1 |
|
TLE4286GNTSA1IC REG LINEAR 5V 15MA SCT595-5 |
0 |
|
Datasheet | OPTIREG™ | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 42V | 5V | - | 1.1V @ 10mA | 15mA | 100 µA | - | 60dB (100Hz) | Inhibit | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SCT595-5 |
|
|
TLS208D1LDV33XUMA1IC REG LINEAR 3.3V 800MA TSON-10 |
0 |
|
Datasheet | OPTIREG™ | 10-TFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 3.3V | - | 1V @ 800mA | 800mA | 170 µA | 250 µA | 62dB (10kHz) | Enable, Reset | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSON-10 |
|
IFX2931GV50XUMA2IC REG LINEAR 5V 100MA DSO8 |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 28V | 5V | - | 0.6V @ 100mA | 100mA | 1 mA | 15 mA | 80dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | PG-DSO-8 |
|
TLE4284DV33NTMA1IC REG LINEAR 3.3V 1A TO252-3-11 |
0 |
|
Datasheet | OPTIREG™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 40V | 3.3V | - | 1.4V @ 1A | 1A | 1.6 mA | - | 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO252-3-11 |
|
TLE4473GV53NTIC REG LINEAR 3.3V/5V DSO12-11 |
0 |
|
Datasheet | OPTIREG™ | 12-BSOP (0.295", 7.50mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 42V | 3.3V, 5V | - | - | 300mA, 180mA | 265 µA | 20 mA | 65dB (100Hz), 65dB (100Hz) | Inhibit, Reset, Watchdog | Over Current, Over Temperature, Short Circuit, Transient Voltage | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-12-11 |
|
|
TLE4253GSXUMA2IC REG LINEAR POS ADJ 250MA DSO8 |
0 |
|
Datasheet | OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable | 1 | 40V | Tracking | - | 0.6V @ 200mA | 250mA | 150 µA | 15 mA | 60dB (100Hz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
|
TLE4254GSXUMA2IC REG LINEAR POS ADJ 70MA 8DSO |
0 |
|
Datasheet | OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable | 1 | 45V | Tracking | - | 0.4V @ 70mA | 70mA | 80 µA | 15 mA | 60dB (100Hz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
|
TLE4296GV30NTSA1IC REG LINEAR 3V 30MA SCT595-5 |
0 |
|
Datasheet | OPTIREG™ | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 45V | 3V | - | 0.3V @ 20mA | 30mA | 170 µA | 4.5 mA | 60dB (100Hz) | Inhibit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SCT595-5 |
|
|
TLE4296GV50NTSA1IC REG LINEAR 5V 30MA SCT595-5 |
0 |
|
Datasheet | OPTIREG™ | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 45V | 5V | - | 0.3V @ 20mA | 30mA | 170 µA | 5.2 mA | 60dB (100Hz) | Inhibit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SCT595-5 |
|
|
TLE4295GV33NTSA1IC REG LINEAR 3.3V 30MA SCT595-5 |
0 |
|
Datasheet | OPTIREG™ | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 3.3V | - | 0.4V @ 20mA | 30mA | 200 µA | 4 mA | 60dB (100Hz) | Power Fail | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SCT595-5 |
