Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV4299CD233R2GIC REG LINEAR 3.3V 150MA 14SOIC |
0 |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 3.3V | - | - | 150mA | 90 µA | 2 mA | 66dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
|
NCP103AMX130TCGIC REG LINEAR 1.3V 150MA 4UDFN |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.3V | - | - | 150mA | 95 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1.0x1.0) |
|
|
NCP103AMX210TCGIC REG LINEAR 2.1V 150MA 4UDFN |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.1V | - | - | 150mA | 95 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1.0x1.0) |
|

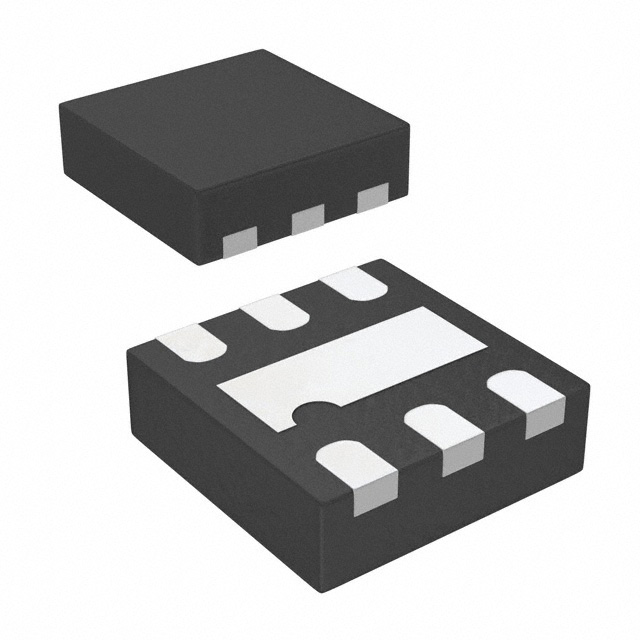

NCP152MX330180TCGIC REG LINEAR 1.8V/3.3V 6XDFN |
0 |
|
Datasheet | - | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.25V | 1.8V, 3.3V | - | 0.4V @ 150mA, 0.22V @ 150mA | 150mA, 150mA | 100 µA | 200 µA | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-XDFN (1.2x1.2) |
|
NCP4632DDTADJT5GIC REG LINEAR POS ADJ 3A DPAK-5 |
0 |
|
Datasheet | - | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.25V | 0.8V | 4.5V | 0.56V @ 3A | 3A | 430 µA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | TO-252 (DPAK) |
|
NCP707CMX180TCGIC REG LINEAR 1.8V 200MA 4XDFN |
0 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.38V @ 200mA | 200mA | 35 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 4-XDFN (1x1) |
|
NCP717BMX190TCGIC REG LINEAR 1.9V 300MA 4XDFN |
0 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.9V | - | - | 300mA | 35 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-XDFN (1x1) |
|
NCV8705MT30TCGIC REG LINEAR 3V 500MA 6WDFN |
0 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | - | 500mA | 25 µA | - | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-WDFN (2x2) |
|
L88R05DL-EIC REG LINEAR 5V 1A TO220-5H |
0 |
|
- |
- | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 17V | 5V | - | 0.5V @ 300mA | 1A | - | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220-5H |
|
MIC5283-3.3YML-T5IC REG LINEAR 3.3V 150MA 8MLF |
0 |
|
Datasheet | - | 8-VFDFN Exposed Pad, 8-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 120V | 3.3V | - | 2.8V @ 150mA | 150mA | 14 µA | - | 70dB ~ 65dB (100Hz ~ 100kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MLF® (2x2) |
|
|
MIC5283-5.0YML-T5IC REG LINEAR 5V 150MA 8MLF |
0 |
|
Datasheet | - | 8-VFDFN Exposed Pad, 8-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 120V | 5V | - | 2.8V @ 150mA | 150mA | 14 µA | - | 70dB ~ 65dB (100Hz ~ 100kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MLF® (2x2) |
|
MIC5283YML-T5IC REG LINEAR POS ADJ 150MA 8MLF |
0 |
|
Datasheet | - | 8-VFDFN Exposed Pad, 8-MLF® | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 120V | 1.22V | 5.5V | 2.8V @ 150mA | 150mA | 14 µA | - | 70dB ~ 65dB (100Hz ~ 100kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MLF® (2x2) |
|
MIC5365-3.0YD5-T5IC REG LINEAR 3V 150MA TSOT23-5 |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.31V @ 150mA | 150mA | 39 µA | - | 80dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
MIC5366-2.1YMT-T5IC REG LINEAR 2.1V 150MA 4TMLF |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad, 4-TMLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.1V | - | 0.38V @ 150mA | 150mA | 39 µA | - | 80dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 4-TMLF® (1x1) |
|
MIC5504-1.2YM5-T5IC REG LINEAR 1.2V 300MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.38V @ 300mA | 300mA | 55 µA | 65 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
MIC5504-1.8YM5-T5IC REG LINEAR 1.8V 300MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.38V @ 300mA | 300mA | 55 µA | 65 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|

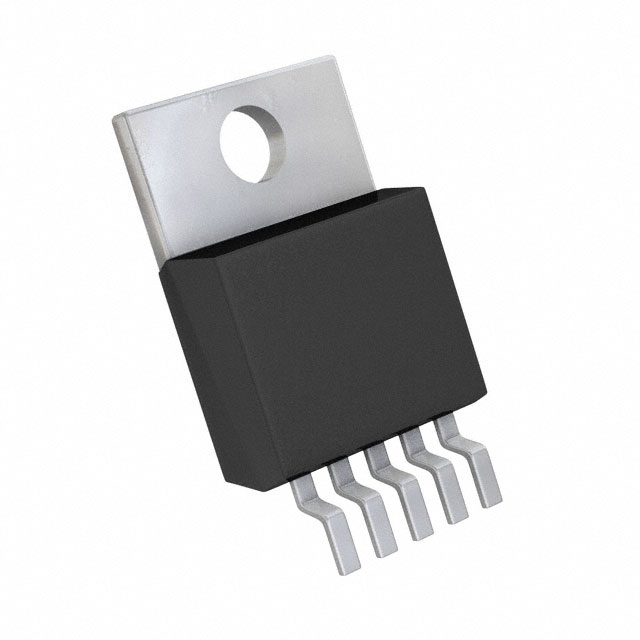

LT3015IT#40PBFIC REG LIN NEG ADJ 1.5A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Discontinued at Digi-Key | Negative | Adjustable | 1 | -30V | -1.22V | -29.5V | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 Flow 40 |
|
AP2121AK-3.3TRG1-1IC REG LINEAR 3.3V 200MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.5V @ 200mA | 200mA | 50 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
AP2125AN-2.5TRG1IC REG LINEAR 2.5V 360MA SOT23-3 |
0 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 2.5V | - | 0.36V @ 300mA | 360mA | 90 µA | - | 70db (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
AP2125AN-3.0TRG1IC REG LINEAR 3V 300MA SOT23 |
0 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 3V | - | 0.3V @ 300mA | 300mA | 90 µA | 300 mA | 65dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
