Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SG723J-JANIC REG LIN POS ADJ 150MA 14CDIP |
0 |
|
Datasheet | - | - | Tube | Active | Positive | Adjustable | 1 | 38V | 2V | 37V | - | 150mA | - | - | 86dB ~ 74dB (50Hz ~ 10kHz) | - | - | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | 14-CDIP |
|
MIC94345-GYMT-T5IC REG LINEAR 1.8V 500MA 6TDFN |
0 |
|
Datasheet | Ripple Blocker™ | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 3.6V | 1.8V | - | 0.2V @ 500mA | 500mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 5MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-TDFN (1.6x1.6) |
|
LTC3025IDC-1#PBFIC REG LINEAR POS ADJ 500MA 6DFN |
0 |
|
Datasheet | - | 6-WFDFN Exposed Pad | Bulk | Discontinued at Digi-Key | Positive | Adjustable | 1 | 5.5V | 0.4V | 3.6V | 0.17V @ 500mA | 500mA | 80 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
SM72238TDX-3.0/NOPBIC REG LINEAR 3V 100MA TO252-3 |
0 |
|
Datasheet | SolarMagic™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 3V | - | 0.6V @ 100mA | 100mA | 140 µA | 14 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
SM72238TDE-3.0/NOPBIC REG LINEAR 3V 100MA TO252-3 |
0 |
|
Datasheet | SolarMagic™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 3V | - | 0.6V @ 100mA | 100mA | 140 µA | 14 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
LD39030SJ12RIC REG LIN 1.2V 300MA 4FLIPCHIP |
0 |
|
Datasheet | - | 4-UFBGA, FCBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.3V @ 300mA | 300mA | 50 µA | 85 µA | 62dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C | - | - | Surface Mount | 4-Flipchip (0.79x0.79) |
|
TLE72762EXUMA1IC REG LIN 5V 300MA SSOP-14-EP |
0 |
|
Datasheet | OPTIREG™ | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 200mA | 300mA | 30 µA | 40 µA | 60dB (100Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SSOP-14-EP |
.jpg)
|

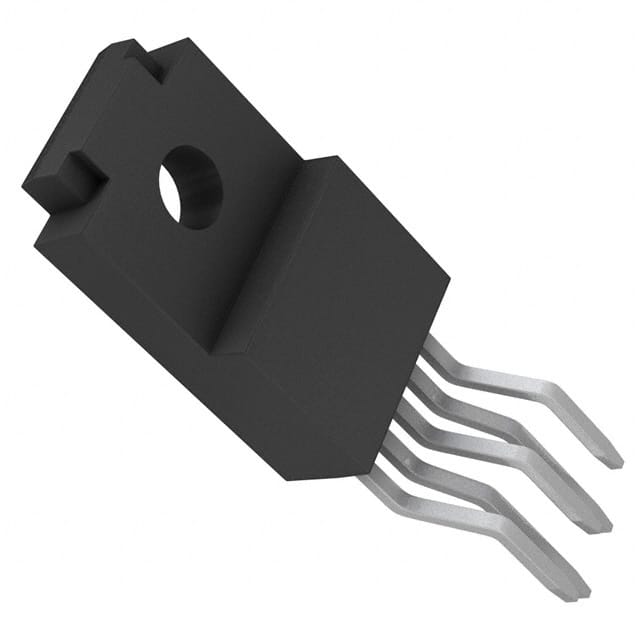

BA09CC0WT-V5IC REG LINEAR 9V 1A TO220FP-5 |
0 |
|
- |
- | TO-220-5 Full Pack | Bulk | Obsolete | Positive | Fixed | 1 | 25V | 9V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP-5 |
|
BD3988FV-E2IC REG LINEAR POS/NEG ADJ 8SSOPB |
0 |
|
Datasheet | - | 8-LSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Positive and Negative | Adjustable | 2 | 18V, -7V | 14V, -6.5V | 16V, -8.5V | 0.35V @ 25mA, 0.45V @ 50mA | 25mA, 50mA | 0.5 mA | 850 µA | 50dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SSOP-B |
|
BD3989FV-E2IC REG LINEAR POS/NEG ADJ 8SSOPB |
0 |
|
Datasheet | - | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Positive and Negative | Adjustable | 2 | 18V, -7.5V | 14V, -6.5V | 16V, -8.5V | 0.35V @ 25mA, 0.45V @ 50mA | 25mA, 50mA | 0.5 mA | 850 µA | 50dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SSOP-B |
|
BD35230HFN-TRIC REG LINEAR 1V 2A 8HSON |
0 |
|
- |
- | 8-PowerUDFN | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 4.5V | 1V | - | - | 2A | 0.7 mA | 1.2 mA | - | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -10°C ~ 100°C | - | - | Surface Mount | 8-HSON |
|
BD3523HFN-TRIC REG LINEAR POS ADJ 2A 8HSON |
0 |
|
- |
- | 8-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 4.5V | 0.65V | 2.7V | - | 2A | 0.7 mA | 1.2 mA | - | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -10°C ~ 100°C | - | - | Surface Mount | 8-HSON |
|
BD35618HFV-TRIC REG LINEAR 8V 300MA 6HVSOF |
0 |
|
Datasheet | - | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14V | 8V | - | - | 300mA | 0.2 mA | 300 µA | - | Enable | Over Current, Over Temperature, Soft Start | -10°C ~ 100°C | - | - | Surface Mount | 6-HVSOF |
|

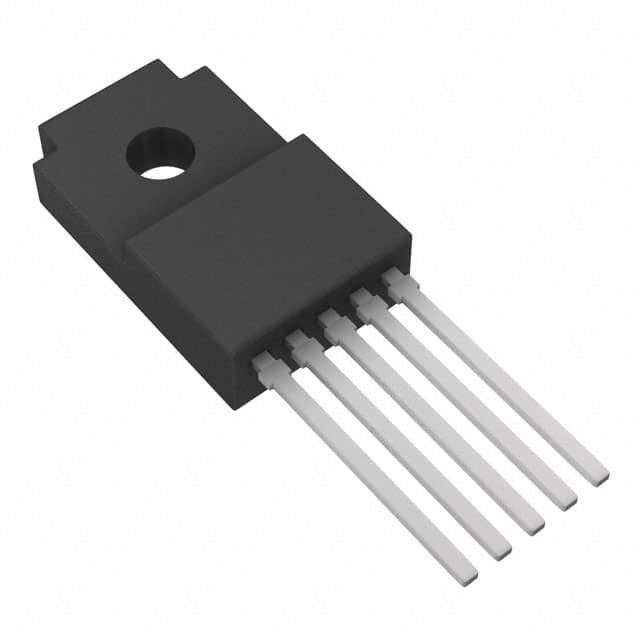

BA33BC0WT-V5IC REG LINEAR 3.3V 1A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | - | 1A | 0.5 mA | 900 µA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C | - | - | Through Hole | TO-220FP-5 |
|
AAT3221IGV-3.3-T1IC REG LINEAR 3.3V 150MA SOT23-5 |
0 |
|
Datasheet | NanoPower™ | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.22V @ 100mA | 150mA | 2.5 µA | - | 50dB (100Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
PAM3110ABA330RIC REG LINEAR 3.3V 1.5A SOT223 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.4V @ 1.5A (Typ) | 1.5A | 150 µA | - | 55dB ~ 35dB (100Hz ~ 10kHz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-3 |
|
PAM3110AMB330RIC REG LINEAR 3.3V 1.5A TO263-2 |
0 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.4V @ 1.5A (Typ) | 1.5A | 150 µA | - | 55dB ~ 35dB (100Hz ~ 10kHz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | TO-263 |
|
PAM3101DAB330IC REG LINEAR 3.3V 300MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.23V @ 300mA | 300mA | 90 µA | - | 70dB ~ 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
PAM3101FKF180IC REG LINEAR 1.8V 300MA 6DFN |
0 |
|
Datasheet | - | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 1.1V @ 300mA | 300mA | 90 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (1.6x1.6) |
|
|
PAM3103AABADJIC REG LIN POS ADJ 300MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.5V | 1.2V | 5V | 0.23V @ 300mA | 300mA | 90 µA | - | 67dB ~ 42dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
