Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS758A01KTTTIC REG LIN POS ADJ 3A DDPAK |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.5V | 1.24V | 5V | - | 3A | 200 µA | - | 62dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
TPS79201DBVTG4IC REG LIN POS ADJ 100MA SOT23-6 |
0 |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.5V | 1.2V | 5.5V | - | 100mA | 250 µA | - | 70dB ~ 47dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
|
TPS79601KTTTG3IC REG LIN POS ADJ 1A DDPAK |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.5V | 1.2V | 5.5V | - | 1A | 385 µA | - | 59dB ~ 42dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
TPS79618KTTTG3IC REG LIN 1.8V 1A DDPAK/TO263-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 1A | 385 µA | - | 59dB ~ 42dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
TPS79625KTTTG3IC REG LIN 2.5V 1A DDPAK/TO263-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | - | 1A | 385 µA | - | 59dB ~ 42dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
TPS79630DCQG4IC REG LINEAR 3V 1A SOT223-6 |
0 |
|
Datasheet | - | SOT-223-6 | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.35V @ 1A | 1A | 385 µA | - | 59dB ~ 42dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
|
TPS79630KTTTG3IC REG LIN 3V 1A DDPAK/TO263-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.35V @ 1A | 1A | 385 µA | - | 59dB ~ 42dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
TPS79633DCQG4IC REG LINEAR 3.3V 1A SOT223-6 |
0 |
|
Datasheet | - | SOT-223-6 | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.33V @ 1A | 1A | 385 µA | - | 59dB ~ 42dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
|
TPS79633KTTTG3IC REG LIN 3.3V 1A DDPAK/TO263-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.33V @ 1A | 1A | 385 µA | - | 59dB ~ 42dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
UC282TDKTTT-ADJG3IC REG LIN POS ADJ 3A DDPAK |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable (Fixed) | 1 | 7.5V | 1.2V (1.2V) | 6V | 2.2V @ 3A | 3A | - | - | - | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 100°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
UC285T-ADJG3IC REG LIN POS ADJ 5A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Adjustable (Fixed) | 1 | 7.5V | 1.2V | 6V | 2.2V @ 5A | 5A | - | - | - | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 100°C | - | - | Through Hole | TO-220-5 |
|
|
UC385TDKTTT-1G3IC REG LIN 1.5V 5A DDPAK/TO263-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7.5V | 1.5V | - | 2.1V @ 5A | 5A | - | - | - | - | Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 100°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
UCC283TDKTTT-3G3IC REG LIN 3.3V 3A DDPAK/TO263-3 |
0 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Positive | Fixed | 1 | 9V | 3.3V | - | 1V @ 3A | 3A | 650 µA | - | - | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
|
UCC283TDKTTT-ADJG3IC REG LIN POS ADJ 3A DDPAK |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 9V | 1.22V | 8.5V | 0.6V @ 3A | 3A | 650 µA | - | - | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | TO-263 (DDPAK-5) |
.JPG)
|

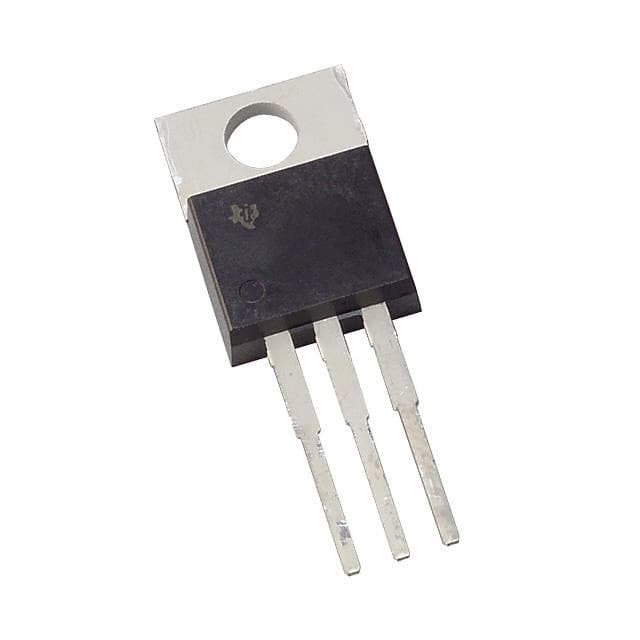

UCC383T-3G3IC REG LINEAR 3.3V 3A TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 9V | 3.3V | - | 1V @ 3A | 3A | 650 µA | - | - | - | Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-220-3 |
|
|
UCC383T-5G3IC REG LINEAR 5V 3A TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 9V | 5V | - | 0.6V @ 3A | 3A | 650 µA | - | - | - | Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-220-3 |
|
|
UCC383TDKTTT-3G3IC REG LIN 3.3V 3A DDPAK/TO263-3 |
0 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Positive | Fixed | 1 | 9V | 3.3V | - | 1V @ 3A | 3A | 650 µA | - | - | - | Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | 0°C ~ 70°C (TA) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
|
UCC383TDKTTT-ADJG3IC REG LIN POS ADJ 3A DDPAK |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 9V | 1.22V | 8.5V | 0.6V @ 3A | 3A | 650 µA | - | - | - | Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | 0°C ~ 70°C (TA) | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
UCC383TDTR-ADJG3IC REG LIN POS ADJ 3A DDPAK |
0 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 9V | 1.22V | 8.5V | 0.6V @ 3A | 3A | 650 µA | - | - | - | Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | 0°C ~ 70°C (TA) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
LM7808CTIC REG LINEAR 8V 1A TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 8V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 73dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
