Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL9000AIRGCZ-TIC REG LINEAR 1.8V/2.7V 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.8V, 2.7V | - | -, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | 90db ~ 50dB (1kHz ~ 100kHz), - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRGPZ-TIC REG LINEAR 1.85V/2.7V 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.85V, 2.7V | - | 0.5V @ 300mA, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
ISL9000AIRJCZIC REG LINEAR 1.8V/2.8V 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 1.8V, 2.8V | - | -, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | 90db ~ 50dB (1kHz ~ 100kHz), - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRJCZ-TIC REG LINEAR 1.8V/2.8V 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.8V, 2.8V | - | -, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | 90db ~ 50dB (1kHz ~ 100kHz), - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRJMZ-TIC REG LINEAR 2.8V/3V 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 2.8V, 3V | - | 0.4V @ 300mA, 0.325V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRJRZ-TIC REG LINEAR 2.6V/2.8V 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 2.6V, 2.8V | - | 0.4V @ 300mA, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRKNZ-TIC REG LINEAR 2.85V/3.3V 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 2.85V, 3.3V | - | 0.325V @ 300mA, 0.325V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRKPZIC REG LINEAR 1.85V/2.85V 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 1.85V, 2.85V | - | 0.5V @ 300mA, 0.325V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRKPZ-TIC REG LINEAR 1.85V/2.85V 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.85V, 2.85V | - | 0.5V @ 300mA, 0.325V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRLLZ-TIC REG LINEAR 2.9V/2.9V 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 2.9V, 2.9V | - | 0.325V @ 300mA, 0.325V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRMMZIC REG LINEAR 3V/3V 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 3V, 3V | - | 0.325V @ 300mA, 0.325V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRMMZ-TIC REG LINEAR 3V/3V 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 3V, 3V | - | 0.325V @ 300mA, 0.325V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRNCZIC REG LINEAR 1.8V/3.3V 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 1.8V, 3.3V | - | -, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | 90db ~ 50dB (1kHz ~ 100kHz), - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRNCZ-TIC REG LINEAR 1.8V/3.3V 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.8V, 3.3V | - | -, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | 90db ~ 50dB (1kHz ~ 100kHz), - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRPLZ-TIC REG LINEAR 1.85V/2.9V 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.85V, 2.9V | - | 0.5V @ 300mA, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
L4938EPDIC REG LINEAR POS ADJ POWERSO20 |
0 |
|
Datasheet | - | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | Tube | Active | Positive | Adjustable (Fixed) | 2 | 28V | 4.9V (5V) | 5.1V | 0.4V @ 100mA, 0.6V @ 400mA | 100mA, 400mA | - | - | - | Enable, Reset | Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | PowerSO-20 |
|
L4979MDIC REG LINEAR 5V 150MA 20SO |
0 |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.4V @ 150mA | 150mA | 20 µA | 3 mA | 55dB (100Hz) | Enable, Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | - | - | Surface Mount | 20-SO |
|

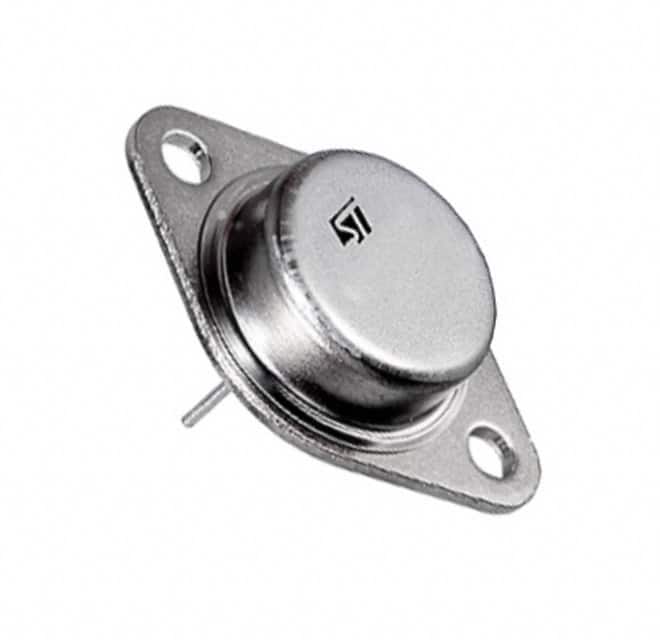

L7818CTIC REG LINEAR 18V 1.5A TO3 |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Bag | Obsolete | Positive | Fixed | 1 | 35V | 18V | - | 2V @ 1A (Typ) | 1.5A | 8 mA | - | 53dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-3 |
|
LD1117S28TRIC REG LINEAR 2.85V 800MA SOT223 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 15V | 2.85V | - | 1.2V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SOT-223 |
|
TPS72501DTG4IC REG LINEAR POS ADJ 1A 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 6V | 1.22V | 5.5V | 0.28V @ 1A | 1A | 225 µA | 325 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
