Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP3893ES-1.8/NOPBIC REG LIN 1.8V 3A DDPAK/TO263-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 1V @ 1A | 3A | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
LP3893ET-1.2/NOPBIC REG LINEAR 1.2V 3A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 1V @ 1A | 3A | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LP3893ET-1.5/NOPBIC REG LINEAR 1.5V 3A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | 1V @ 1A | 3A | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LP3893ET-1.8/NOPBIC REG LINEAR 1.8V 3A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 1V @ 1A | 3A | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
BA028LBSG2-TRIC REG LINEAR 2.8V 150MA SMP5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 2.8V | - | 0.15V @ 50mA | 150mA | 15 µA | - | 66dB ~ 58dB (400Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SMP5 |
|
BA033STIC REG LINEAR 3.3V 1A TO220FP-5 |
0 |
|
- |
- | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 3.3V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 85°C | - | - | Through Hole | TO-220FP-5 |
|

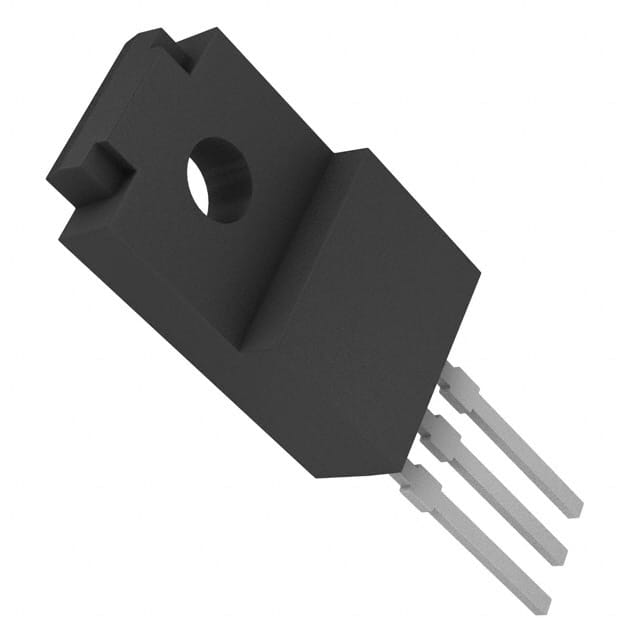

BA03TIC REG LINEAR 3V 1A TO220FP |
0 |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 3V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | - | Over Current, Over Temperature, Over Voltage | -40°C ~ 85°C | - | - | Through Hole | TO-220FP |
|
|
BA040LBSG2-TRIC REG LINEAR 4V 150MA SMP5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 4V | - | 0.15V @ 50mA | 150mA | 15 µA | - | 66dB ~ 56dB (400Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SMP5 |
.jpg)
|
BA05ST-V5IC REG LINEAR 5V 1A TO220FP-5 |
0 |
|
- |
- | TO-220-5 Full Pack (Formed Leads) | Tube | Active | Positive | Fixed | 1 | 25V | 5V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 85°C | - | - | Through Hole | TO-220FP-5 |
|
BA07FP-E2IC REG LINEAR 7V 1A TO252-3 |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 25V | 7V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | - | Over Current, Over Temperature, Over Voltage | -40°C ~ 85°C | - | - | Surface Mount | TO-252 |
|
BA07SFP-E2IC REG LINEAR 7V 1A TO252-5 |
0 |
|
- |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 25V | 7V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 85°C | - | - | Surface Mount | TO-252-5 |
|
|
BA07TIC REG LINEAR 7V 1A TO220FP |
0 |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Active | Positive | Fixed | 1 | 25V | 7V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | - | Over Current, Over Temperature, Over Voltage | -40°C ~ 85°C | - | - | Through Hole | TO-220FP |
|
|
BA09STIC REG LINEAR 9V 1A TO220FP-5 |
0 |
|
- |
- | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 9V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 85°C | - | - | Through Hole | TO-220FP-5 |
|
|
BA12STIC REG LINEAR 12V 1A TO220FP-5 |
0 |
|
- |
- | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 12V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 85°C | - | - | Through Hole | TO-220FP-5 |
|
|
BA178M10TIC REG LINEAR 10V 500MA TO220FP |
0 |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Active | Positive | Fixed | 1 | 25V | 10V | - | 2V @ 500mA (Typ) | 500mA | 4.5 mA | 6 mA | 66dB (120Hz) | - | - | -40°C ~ 85°C | - | - | Through Hole | TO-220FP |
|
|
BA178M12TIC REG LINEAR 12V 500MA TO220FP |
0 |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Active | Positive | Fixed | 1 | 27V | 12V | - | 2V @ 500mA (Typ) | 500mA | 4.5 mA | 6 mA | 63dB (120Hz) | - | - | -40°C ~ 85°C | - | - | Through Hole | TO-220FP |
|
MC7808BDTRKGIC REG LINEAR 8V 1A DPAK |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 35V | 8V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 62dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
NCV1117DTARKIC REG LINEAR POS ADJ 1A DPAK |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 20V | 1.25V | 18.8V | 1.2V @ 800mA | 1A | 10 mA | - | 73dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | DPAK |
|
|
MC33269DTGIC REG LINEAR POS ADJ 800MA DPAK |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Adjustable | 1 | 20V | 1.25V | 18.65V | 1.35V @ 800mA | 800mA | - | - | 55dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
NCV8141D2TGIC REG LINEAR 5V 500MA D2PAK-7 |
0 |
|
Datasheet | - | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 1.5V @ 500mA | 500mA | - | - | 75dB (120Hz) | Enable, Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | D2PAK-7 |
