Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM109K STEELIC REG LINEAR 5.05V 1A TO3-2 |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Positive | Fixed | 1 | 25V | 5.05V | - | - | 1A | 5.2 mA | 10 mA | - | - | Over Current, Over Temperature | -55°C ~ 150°C | - | - | Through Hole | TO-3-2 |
|
|
LM323K STEELIC REG LINEAR 5V 3A TO3-2 |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Positive | Fixed | 1 | 20V | 5V | - | - | 3A | - | - | - | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-3-2 |
|
|
LM309K STEELIC REG LINEAR 5.05V 1.5A TO3-2 |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Positive | Fixed | 1 | 25V | 5.05V | - | - | 1.5A | 5.2 mA | 10 mA | - | - | Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-3-2 |
|
|
LM340K-5.0IC REG LINEAR 5V 1.5A TO3-2 |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A | 1.5A | 6 mA | - | 70dB (120Hz) | - | Over Current, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-3-2 |
|
|
LM350K STEELIC REG LINEAR POS ADJ 3A TO3-2 |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Positive | Adjustable | 1 | 35V | 1.25V | 33V | - | 3A | - | - | 86dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-3-2 |
|
SG117AKIC REG LIN POS ADJ 1.5A TO204AD |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Positive | Adjustable | 1 | 37V | 1.25V | 37V | - | 1.5A | - | - | 80dB (120Hz) | - | Over Current | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|
TPS76901HDBVTIC REG LIN POS ADJ 100MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 10V | 1.2V | 4.5V | - | 100mA | 28 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 175°C | - | - | Surface Mount | SOT-23-5 |
|
LM140K-5.0IC REG LINEAR 5V 1A TO3-2 |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A | 1A | 6 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -55°C ~ 125°C | - | - | Through Hole | TO-3-2 |
|
TPS76901SHKJIC REG LINEAR POS ADJ 100MA 8CFP |
0 |
|
Datasheet | - | 8-CFlatPack | Tube | Active | Positive | Adjustable | 1 | 10V | 1.2V | 4.5V | - | 100mA | 28 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 210°C | - | - | Surface Mount | 8-CFP |
|
|
LM138K STEELIC REG LINEAR POS ADJ 5A TO3-2 |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Positive | Adjustable | 1 | 40V | 1.2V | 32V | - | 5A | - | - | 75dB (120Hz) | - | Over Temperature | -55°C ~ 150°C | - | - | Through Hole | TO-3-2 |
|
TPS76901SHKQIC REG LINEAR POS ADJ 100MA 8CFP |
0 |
|
Datasheet | - | 8-CSOIC (0.220", 5.65mm Width) | Tube | Active | Positive | Adjustable | 1 | 10V | 1.2V | 4.5V | - | 100mA | 28 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 210°C | - | - | Surface Mount | 8-CFP |
|
TPS7A4501U/EMIC REG LIN POS ADJ 750MA 10CFP |
0 |
|
Datasheet | - | 10-CDFF | Tube | Discontinued at Digi-Key | Positive | Adjustable | 1 | 20V | 1.21V | 20V | 0.33V @ 750mA | 750mA | 1.5 mA | 90 mA | 68dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | 25°C | - | - | Surface Mount | 10-CFP |
|

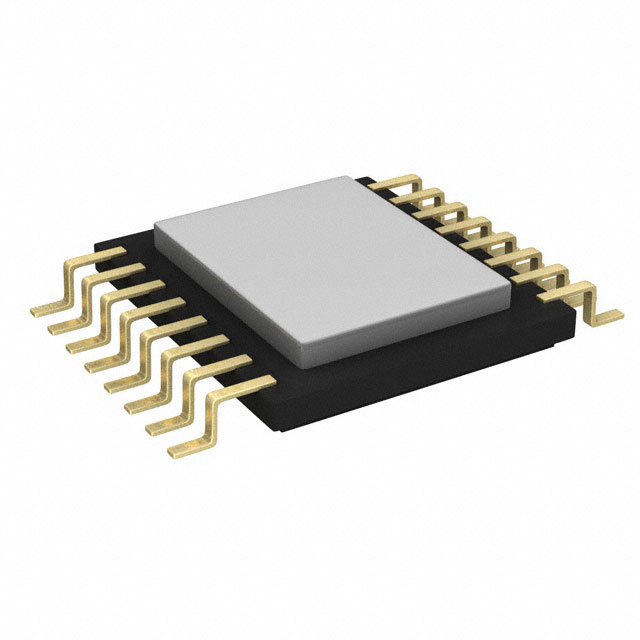

TPS7H1201SHKSIC REG LIN POS ADJ 500MA 16CFP |
0 |
|
Datasheet | - | 16-CFlatPack | Tray | Obsolete | Positive | Adjustable | 1 | 7V | 0.8V | 6.8V | 0.1V @ 500mA | 500mA | - | - | 45dB ~ 20dB (1kHz ~ 100kHz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature | -55°C ~ 210°C | - | - | Surface Mount | 16-CFP |
|
SN0014HBLRADIATION-HARDENED QMLV AND QML |
0 |
|
Datasheet | - | 14-CFlatpack | Bulk | Active | Positive | Adjustable | 1 | 7V | 0.4V | 5.5V | 1.168V @ 1.5A | 1.5A | 27 mA | 27 mA | 109dB ~ 30dB (100Hz ~ 10MHz) | Current Limit, Enable, Power Good, Soft Start | Over Current | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 14-CFP |
|
LT7537TEMPERATURE COMPENSATED |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5962R2320301VXCRADIATION-HARDENED, QMLV AND QML |
0 |
|
- |
- | 22-CFlatPack | Tray | Active | Positive | Adjustable | 1 | 14V | 0.6V | 13.1V | 0.9V @ 2A | 2A | 15 mA | 20 mA | 72dB (1kHz), 68dB ~ 34dB (100Hz ~ 1MHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -55°C ~ 125°C | Military | MIL-PRF-38535 | Surface Mount | 22-CFP |
|
TPS7H1201SKGD1IC REG LINEAR POS ADJ 500MA DIE |
0 |
|
Datasheet | - | Die | Tube | Obsolete | Positive | Adjustable | 1 | 7V | 0.8V | 6.8V | 0.1V @ 500mA | 500mA | 17 mA | 20 mA | 45dB ~ 20dB (1kHz ~ 100kHz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature | -55°C ~ 210°C | - | - | Surface Mount | Die |
|
|
LM337K STEEL/NOPBIC REG LIN NEG ADJ 1.5A TO3-2 |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Obsolete | Negative | Adjustable | 1 | -40V | -1.2V | -37V | - | 1.5A | - | - | 77dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-3-2 |
|
LM723CN/NOPBIC REG LIN POS ADJ 150MA 14DIP |
0 |
|
Datasheet | - | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Positive | Adjustable | 1 | 40V | 2V | 37V | - | 150mA | - | - | 86dB ~ 74dB (50Hz ~ 10kHz) | Current Limit, Frequency Control | Short Circuit | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
,TO-226_straightlead.jpg)
|
AN78L12IC REG LINEAR 12V 100MA 3SSIP |
0 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | - | 100mA | 3.5 mA | - | 50dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | 3-SSIP |
