Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP3855ET-1.8IC REG LINEAR 1.8V 1.5A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 7V | 1.8V | - | 0.38V @ 1.5A | 1.5A | 3 mA | 10 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LP3855ET-5.0IC REG LINEAR 5V 1.5A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 7V | 5V | - | 0.38V @ 1.5A | 1.5A | 3 mA | 10 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
LP3881ES-1.2IC REG LINEAR 1.2V 800MA DDPAK |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.16V @ 800mA | 800mA | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
LP3881ES-1.5IC REG LINEAR 1.5V 800MA DDPAK |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.16V @ 800mA | 800mA | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3881ES-1.8IC REG LINEAR 1.8V 800MA DDPAK |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.16V @ 800mA | 800mA | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3882ES-1.2IC REG LINEAR 1.2V 1.5A DDPAK |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.32V @ 1.5A | 1.5A | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3882ES-1.5IC REG LINEAR 1.5V 1.5A DDPAK |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.27V @ 1.5A | 1.5A | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
MIC47050YML-TRVAOIC REG LINEAR POS ADJ 500MA 6MLF |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 3.6V | 0.4V | 2V | 0.12V @ 500mA | 500mA | 15 µA | - | 50dB ~ 37dB (10kHz ~ 100kHz) | Enable, Power Good | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
LT3089EDF#TRPBFIC REG LIN POS ADJ 800MA 12DFN |
0 |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 36V | 0V | 34.5V | 1.65V @ 800mA | 800mA | 50.5 µA | 3 mA | 90dB ~ 20dB (120Hz ~ 1MHz) | Current Limit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 12-DFN (4x4) |
|
LP2992ILDX-5.0/NOPBIC REG LINEAR 5V 250MA 6WSON |
0 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.85V @ 250mA | 250mA | 95 µA | 4 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2.92x3.29) |
|
LT1963AES8-1.5#TRPBFIC REG LINEAR 1.5V 1.5A 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 1.5V | - | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SO |
|
LT3063HDCB#TRPBFIC REG LINEAR POS ADJ 200MA 8DFN |
0 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 45V | 0.6V | 19V | 0.53V @ 200mA | 200mA | - | - | 85dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C | - | - | Surface Mount | 8-DFN (2x3) |
|
LP3878SD-ADJ/NOPBIC REG LIN POS ADJ 800MA 8WSON |
0 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 16V | 1V | 5.5V | 1.1V @ 800mA | 800mA | 1.5 mA | 15 mA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-WSON (4x4) |
|

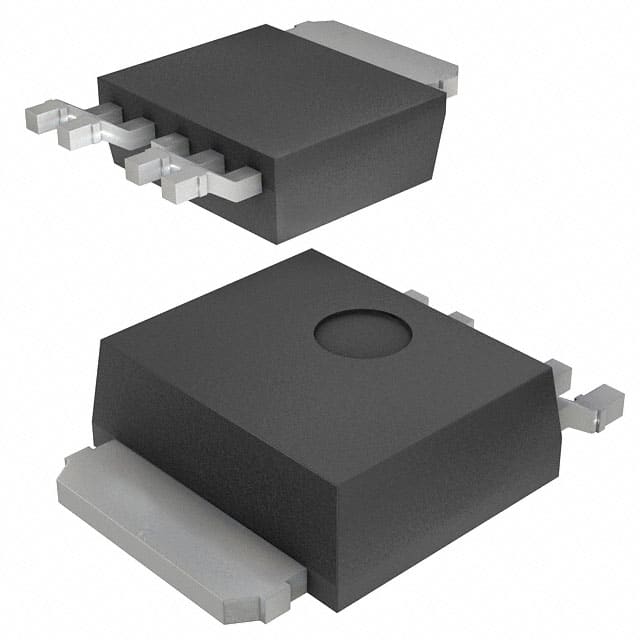

BA33C25FP-E2IC REG LIN 2.5V/3.3V 1A/1A TO252 |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 2 | 16V | 2.5V, 3.3V | - | - | 1A, 1A | 0.8 mA | 1.5 mA | 58dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 105°C | - | - | Surface Mount | TO-252 |
|

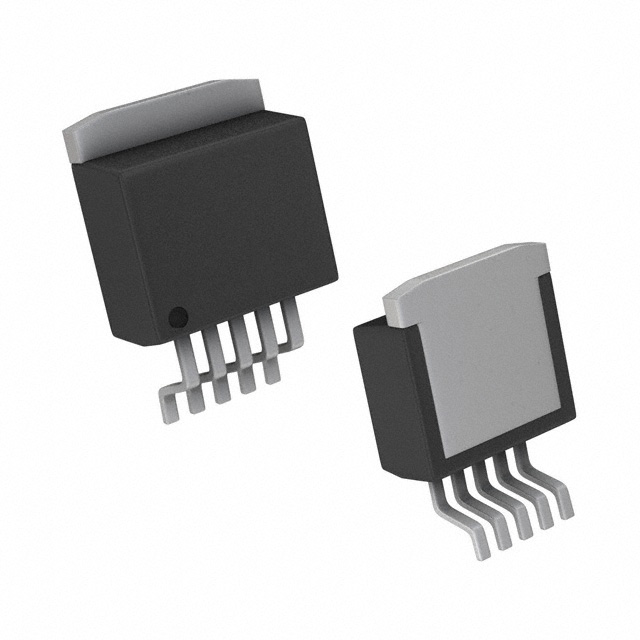

BD4275FP2-CE2IC REG LINEAR 5V 500MA TO263-5F |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 300mA | 500mA | 150 µA | - | 60dB (120Hz) | - | Over Current, Thermal Shutdown, UVLO | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | TO-263-5 |
|
|
REG102UA-5IC REG LINEAR 5V 250MA 8SOIC |
1 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 10V | 5V | - | 0.27V @ 250mA | 250mA | 500 µA | 800 µA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
CS8161YTHA5IC REG LIN 12V/5V TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 2 | 26V | 12V, 5V | - | 0.6V @ 400mA, 0.6V @ 200mA | 400mA, 200mA | 10 mA | 75 mA | 42dB (120Hz) | Enable | Over Temperature, Over Voltage, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 Horizontal |
|
CS8161YTVA5IC REG LIN 12V/5V TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 2 | 26V | 12V, 5V | - | 0.6V @ 400mA, 0.6V @ 200mA | 400mA, 200mA | 10 mA | 75 mA | 42dB (120Hz) | Enable | Over Temperature, Over Voltage, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 Vertical |
|
LT1965IDD-1.5#TRPBFIC REG LINEAR 1.5V 1.1A 8DFN |
0 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 1.5V | - | 0.49V @ 1.1A | 1.1A | 1.1 mA | 40 mA | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (3x3) |
|
|
LT1965IDD-2.5#TRPBFIC REG LINEAR 2.5V 1.1A 8DFN |
0 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 2.5V | - | 0.49V @ 1.1A | 1.1A | 1.1 mA | 40 mA | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (3x3) |
