Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADP3301ARZ-3.3-RLIC REG LINEAR 3.3V 100MA 8SOIC |
0 |
|
Datasheet | anyCAP® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 3.3V | - | 0.2V @ 100mA | 100mA | 300 µA | 2 mA | - | Error Flag, Shutdown | Over Temperature | -20°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
CS8126-1YDPS7IC REG LINEAR 5V 750MA D2PAK-7 |
0 |
|
Datasheet | - | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tube | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 500mA | 750mA | 70 mA | 100 mA | 75dB (120Hz) | Reset | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | D2PAK-7 |
|
TPS77033DBVTIC REG LINEAR 3.3V 50MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 3.3V | - | 0.1V @ 50mA | 50mA | 28 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
LM9076S-5.0IC REG LIN 5V 150MA DDPAK/TO263 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.25V @ 150mA | 150mA | 45 µA | 4.5 mA | 60dB (120kHz) | Reset | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
ZSR330N8TAIC REG LDO 3.3V 0.2A 8-SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Cut Tape (CT) | Obsolete | - | - | 1 | - | - | - | - | 200mA | - | - | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | 8-SO |
|
|
ZSR600N8TAIC REG LINEAR 6V 200MA 8SO |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 6V | - | - | 200mA | 600 µA | - | 62dB (120Hz) | - | Over Temperature, Short Circuit | -55°C ~ 125°C | - | - | Surface Mount | 8-SO |
|
|
ZSR850N8TAIC REG LDO 8.5V 0.2A 8-SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Digi-Reel® | Obsolete | - | - | 1 | - | - | - | - | 200mA | - | - | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | 8-SO |
|
LD1084D2M50RIC REG LINEAR 5V 5A D2PAK-3 |
0 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 1.5V @ 5A | 5A | 10 mA | - | 72dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
LT3050EDDB#TRPBFIC REG LIN POS ADJ 100MA 12DFN |
0 |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 45V | 0.6V | 44.5V | 0.55V @ 100mA | 100mA | 90 µA | 5.2 mA | 85dB (120Hz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-DFN (3x2) |
|
|
LT3050EDDB-3.3#TRPBFIC REG LINEAR 3.3V 100MA 12DFN |
0 |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 3.3V | - | 0.55V @ 100mA | 100mA | 90 µA | 5.2 mA | 70dB (120Hz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-DFN (3x2) |
|
LM2940CT-5.0IC REG LINEAR 5V 1A TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 1V @ 1A | 1A | 15 mA | 60 mA | 72dB (120Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
BD60HC5MEFJ-ME2IC REG LINEAR 6V 1.5A 8HTSOP |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 6V | - | 1.2V @ 1.5A | 1.5A | 6 µA | 1.2 mA | - | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD80GC0MEFJ-ME2IC REG LINEAR 8V 1A 8HTSOP |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 8V | - | 1.2V @ 1A | 1A | 0.6 mA | 1.2 mA | - | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
LT3061EDCB#TRPBFIC REG LINEAR POS ADJ 100MA 8DFN |
0 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 45V | 0.6V | 19V | 0.43V @ 100mA | 100mA | 90 µA | 4 mA | 85dB (120Hz) | Enable, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (2x3) |
|
LM1117MPX-3.3IC REG LIN 3.3V 800MA SOT223-4 |
0 |
|
Datasheet | LM1117-3.3 | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 15V | 3.3V | - | 1.2V @ 800mA | 800mA | 5 mA | 10 mA | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
MIC37303YML-T5IC REG LINEAR POS ADJ 3A 8DFN |
0 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 1.24V | 5.5V | 0.55V @ 3A | 3A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (3x3) |
|
|
LT3061EDCB-3.3#TRPBFIC REG LINEAR 3.3V 100MA 8DFN |
0 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 3.3V | - | 0.43V @ 100mA | 100mA | 90 µA | 4 mA | 73dB (120Hz) | Enable, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (2x3) |
|
|
LT3061EDCB-5#TRPBFIC REG LINEAR 5V 100MA 8DFN |
0 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 5V | - | 0.43V @ 100mA | 100mA | 90 µA | 4 mA | 70dB (120Hz) | Enable, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (2x3) |
|

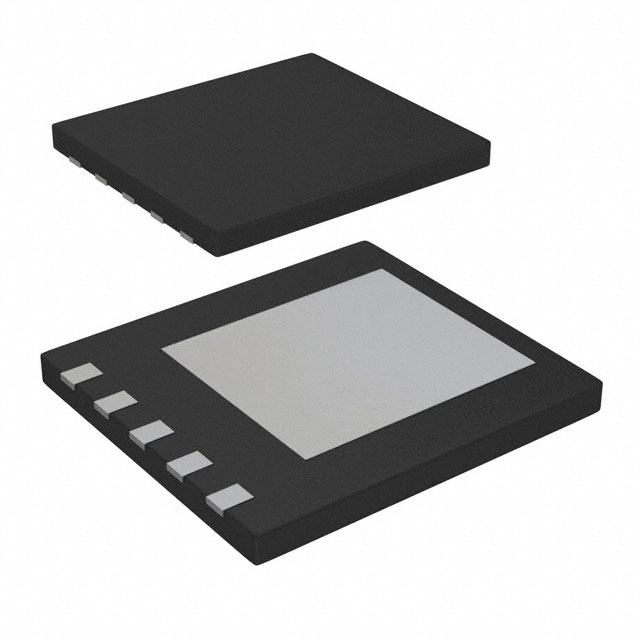

TPS74001DPTTIC REG LINEAR POS ADJ 1.5A 5VSON |
0 |
|
Datasheet | - | 5-VSFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 6V | 0.9V | 3.6V | 0.3V @ 1.5A | 1.5A | 3 mA | - | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 5-VSON (10x11) |
,TO-226_straightlead.jpg)
|
LM2936Z-5.0/LFT1IC REG LINEAR 5V 50MA TO92-3 |
0 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.4V @ 50mA | 50mA | 9 µA | 2.5 mA | 60dB (120Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-92-3 |
