Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP3962ES-3.3/1IC REG LINEAR 3.3V 1.5A DDPAK |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 0.55V @ 1.5A | 1.5A | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3962ESX-5.0IC REG LIN 5V 1.5A DDPAK/TO263-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 5V | - | 0.55V @ 1.5A | 1.5A | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
FAN1112SXIC REG LINEAR 1.2V 1A SOT223-4 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 1.2V | - | 1.2V @ 1A | 1A | - | - | 72dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
MIC5271-3.0YM5-TRIC REG LINEAR -3V 100MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -16V | -3V | - | 0.9V @ 100mA | 100mA | - | - | 50dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
LP38693SD-1.8IC REG LINEAR 1.8V 500MA 6WSON |
0 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 1.8V | - | - | 500mA | 55 µA | 100 µA | 55dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-WSON (3x3) |
|
CS5206-3GT3IC REG LINEAR 3.3V 6A TO220AB |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 17V | 3.3V | - | 1.4V @ 6A | 6A | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Through Hole | TO-220-3 |
|
TPS72515DCQRG4IC REG LINEAR 1.5V 1A SOT223-6 |
0 |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 1.5V | - | 0.32V @ 1A | 1A | 225 µA | 325 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
|
TPS72518DCQRG4IC REG LINEAR 1.8V 1A SOT223-6 |
0 |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 1.8V | - | 0.32V @ 1A | 1A | 225 µA | 325 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
|
TPS72525DCQRG4IC REG LINEAR 2.5V 1A SOT223-6 |
0 |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 0.28V @ 1A | 1A | 225 µA | 325 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
|
TPS726126DCQRG4IC REG LINEAR 1.26V 1A SOT223-6 |
0 |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 1.26V | - | 0.32V @ 1A | 1A | 120 µA | 300 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
MIC5306-2.5YD5IC REG LIN 2.5V 150MA TSOT23-5 |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.2V @ 150mA | 150mA | 25 µA | - | 62dB ~ 35dB (10Hz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|

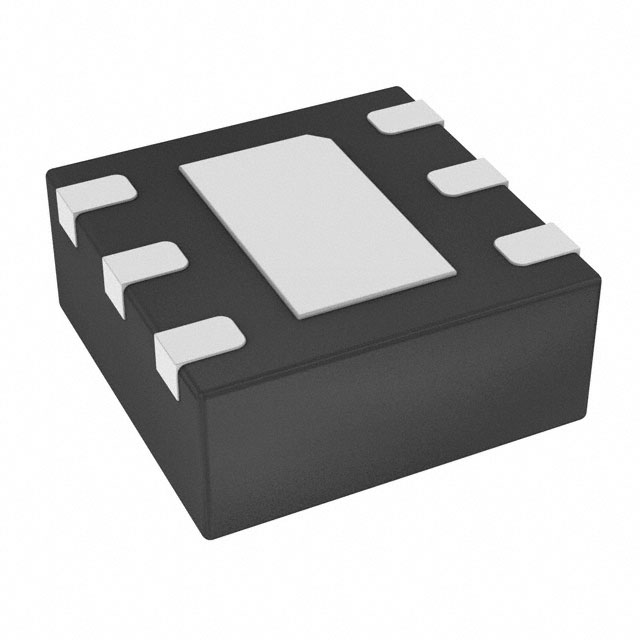

MAQ5300-3.0YML-TRVAOIC REG LINEAR 3V 300MA 6DFN |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.2V @ 300mA | 300mA | 120 µA | - | 65dB ~ 42dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
MAQ5300-1.8YML-TRVAOIC REG LINEAR 1.8V 300MA 6DFN |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Cut Tape (CT) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.2V @ 300mA | 300mA | 120 µA | - | 65dB ~ 42dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
|
MAQ5300-2.85YML-TRVAOIC REG LINEAR 2.85V 300MA 6DFN |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Cut Tape (CT) | Active | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.2V @ 300mA | 300mA | 120 µA | - | 65dB ~ 42dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
|
MAQ5300-3.3YML-TRVAOIC REG LINEAR 3.3V 300MA 6DFN |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.2V @ 300mA | 300mA | 120 µA | - | 65dB ~ 42dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
|
REG1118-2.85IC REG LIN 2.85V 800MA SOT223-4 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Active | Positive | Fixed | 1 | 6V | 2.85V | - | 1.3V @ 800mA | 800mA | 7 mA | - | 56dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Surface Mount | SOT-223-4 |
|
LP3871ES-5.0/NOPBIC REG LIN 5V 800MA DDPAK/TO263 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 7V | 5V | - | 0.35V @ 800mA | 800mA | 5 mA | 15 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
MIC5208-3.3YMMIC REG LINEAR 3.3V/3.3V 8MSOP |
0 |
|
- |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Positive | Fixed | 2 | 16V | 3.3V, 3.3V | - | 0.5V @ 50mA, 0.5V @ 50mA | 50mA, 50mA | 750 µA | 1.2 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
|
MIC5208-3.3YMM-TRIC REG LINEAR 3.3V/3.3V 8MSOP |
0 |
|
- |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 16V | 3.3V, 3.3V | - | 0.5V @ 50mA, 0.5V @ 50mA | 50mA, 50mA | 750 µA | 1.2 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
|
MIC5208-3.8YMMIC REG LINEAR 3.8V/3.8V 8MSOP |
0 |
|
- |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Positive | Fixed | 2 | 16V | 3.8V, 3.8V | - | 0.5V @ 50mA, 0.5V @ 50mA | 50mA, 50mA | 750 µA | 1.2 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
