Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP3962EMPX-1.8IC REG LINEAR 1.8V 1.5A SOT223-5 |
0 |
|
Datasheet | - | TO-261-5, TO-261AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 1.8V | - | 0.55V @ 1.5A | 1.5A | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
|
LP3962EMPX-2.5IC REG LINEAR 2.5V 1.5A SOT223-5 |
0 |
|
Datasheet | - | TO-261-5, TO-261AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 0.55V @ 1.5A | 1.5A | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
LP3961ES-5.0/NOPBIC REG LIN 5V 800MA DDPAK/TO263 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 7V | 5V | - | 0.35V @ 800mA | 800mA | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3964ES-5.0/NOPBIC REG LIN 5V 800MA DDPAK/TO263 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 7V | 5V | - | 0.35V @ 800mA | 800mA | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
LP3964ET-3.3/NOPBIC REG LINEAR 3.3V 800MA TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 0.35V @ 800mA | 800mA | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
MC78LC33NTRIC REG LINEAR 3.3V 80MA 5TSOP |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 3.3V | - | 0.053V @ 1mA | 80mA | 3.6 µA | - | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | 5-TSOP |
|
MIC5319-1.85YD5-TRIC REG LIN 1.85V 500MA TSOT23-5 |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.85V | - | - | 500mA | 150 µA | - | 70dB ~ 60dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
|
MIC5319-2.8YD5-TRIC REG LIN 2.8V 500MA TSOT23-5 |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.4V @ 500mA | 500mA | 150 µA | - | 70dB ~ 60dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
|
MIC5319-2.7YD5-TRIC REG LIN 2.7V 500MA TSOT23-5 |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.4V @ 500mA | 500mA | 150 µA | - | 70dB ~ 60dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
|
MIC5319-5.0YD5-TRIC REG LINEAR 5V 500MA TSOT23-5 |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 5V | - | 0.4V @ 500mA | 500mA | 150 µA | - | 70dB ~ 60dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
LP2992AIM5X-1.8/NOPBIC REG LINEAR 1.8V 250MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 1.8V | - | 0.85V @ 250mA | 250mA | 95 µA | 4 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
LM1117LDX-1.8IC REG LINEAR 1.8V 800MA 8WSON |
0 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 15V | 1.8V | - | 1.2V @ 800mA | 800mA | 5 mA | 10 mA | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 8-WSON (4x4) |
|
NCP715MX15TBGIC REG LINEAR 1.5V 50MA 6XDFN |
0 |
|
Datasheet | - | 6-XFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 1.5V | - | - | 50mA | 4.2 µA | 5.8 µA | 56dB (100kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-XDFN (1.5x1.5) |
|

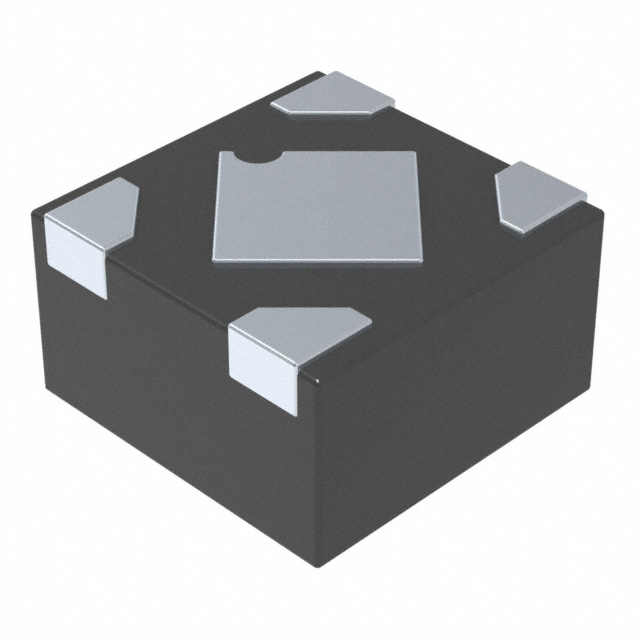

MCP1811AT-012/HCAIC REG LINEAR 1.2V 150MA 4UDFN |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.6V @ 150mA | 150mA | 500 nA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1811AT-018/HCAIC REG LINEAR 1.8V 150MA 4UDFN |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.6V @ 150mA | 150mA | 500 nA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1811AT-025/HCAIC REG LINEAR 2.5V 150MA 4UDFN |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.6V @ 150mA | 150mA | 500 nA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1811AT-028/HCAIC REG LINEAR 2.8V 150MA 4UDFN |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.6V @ 150mA | 150mA | 500 nA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1811AT-033/HCAIC REG LINEAR 3.3V 150MA 4UDFN |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.6V @ 150mA | 150mA | 500 nA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
|
MCP1811BT-025/HCAIC REG LINEAR 2.5V 150MA 4UDFN |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.6V @ 150mA | 150mA | 500 nA | 110 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-UDFN (1x1) |
|
TPS73601DRBTG4IC REG LINEAR POS ADJ 400MA 8SON |
0 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable | 1 | 5.5V | 1.2V | 5.5V | 0.2V @ 400mA | 400mA | 550 µA | 1 mA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SON (3x3) |
