Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP3874EMPX-5.0IC REG LINEAR 5V 800MA SOT223-5 |
0 |
|
Datasheet | - | TO-261-5, TO-261AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 5V | - | 0.35V @ 800mA | 800mA | 9 mA | 15 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|

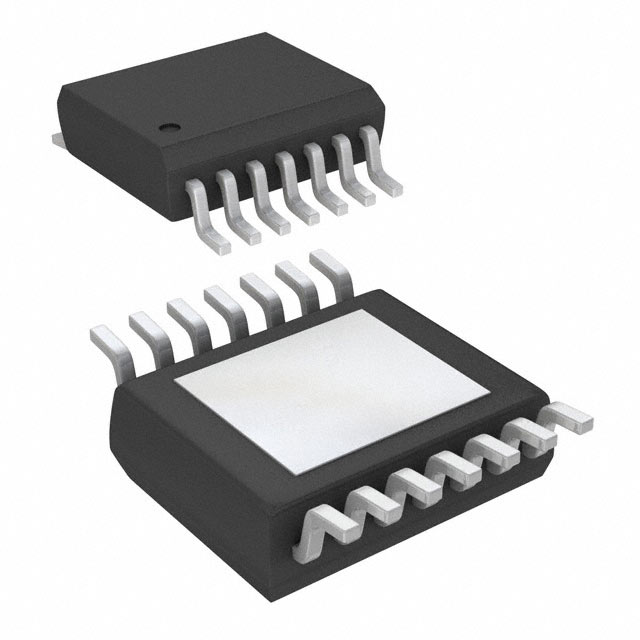

EY1603TI-ADJIC REG LIN POS ADJ 14HTSSOP |
0 |
|
Datasheet | Enpirion® | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 40V | 1.223V | 12V | 0.46V @ 150mA | 150mA | 24 µA | 125 µA | 66dB (100Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 14-HTSSOP |
|
REG1117-3.3G4IC REG LIN 3.3V 800MA SOT223-4 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Discontinued at Digi-Key | Positive | Fixed | 1 | 15V | 3.3V | - | 1.2V @ 800mA | 800mA | 10 mA | - | 62dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
LMS1587IT-1.5IC REG LINEAR 1.5V 3A TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 13V | 1.5V | - | 1.3V @ 3A | 3A | 7 mA | 13 mA | 60 ~ 72 dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
LP2992ILD-1.8/NOPBIC REG LINEAR 1.8V 250MA 6WSON |
5 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 1.8V | - | 0.85V @ 250mA | 250mA | 95 µA | 4 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2.92x3.29) |
|
|
LP2992ILD-2.5/NOPBIC REG LINEAR 2.5V 250MA 6WSON |
0 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 2.5V | - | 0.85V @ 250mA | 250mA | 95 µA | 4 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2.92x3.29) |
|
|
LP3961EMPX-1.8/NOPBIC REG LIN 1.8V 800MA SOT223-5 |
0 |
|
Datasheet | - | TO-261-5, TO-261AB | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 7V | 1.8V | - | 0.35V @ 800mA | 800mA | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
REG102UA-2.5/2K5IC REG LINEAR 2.5V 250MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 2.5V | - | 0.27V @ 250mA | 250mA | 500 µA | 800 µA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
REG102UA-2.8/2K5IC REG LINEAR 2.8V 250MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 2.8V | - | 0.27V @ 250mA | 250mA | 500 µA | 800 µA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
REG102UA-3/2K5IC REG LINEAR 3V 250MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 3V | - | 0.27V @ 250mA | 250mA | 500 µA | 800 µA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
TPS77725DRG4IC REG LINEAR 2.5V 750MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 2.5V | - | - | 750mA | 125 µA | - | 60dB (1kHz) | Enable, Power Good, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
REG102UA-3/2K5G4IC REG LINEAR 3V 250MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 3V | - | 0.27V @ 250mA | 250mA | 500 µA | 800 µA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
LM2931CD2TIC REG LIN POS ADJ 100MA D2PAK-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Adjustable | 1 | 26V | 2.7V | 29.5V | 0.6V @ 100mA | 100mA | 1 mA | 6 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | D2PAK-5 |
|
L4947LIC REG LIN 5V 500MA 5PENTAWATT |
0 |
|
Datasheet | - | Pentawatt-5 (Vertical, Bent and Staggered Leads) | Tube | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.75V @ 500mA | 500mA | 13 mA | 180 mA | 60dB (120Hz) | Reset | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | 5-PENTAWATT |
|
NCV8506D2TADJR4IC REG LIN POS ADJ 400MA D2PAK-7 |
0 |
|
Datasheet | - | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 45V | 1.3V | 44.4V | 0.6V @ 400mA | 400mA | 150 µA | 45 mA | - | Reset | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-7 |
|
TPS77925DGKG4IC REG LINEAR 2.5V 250MA 8VSSOP |
0 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Discontinued at Digi-Key | Positive | Fixed | 1 | 10V | 2.5V | - | - | 250mA | 125 µA | - | 55dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
NCV8668ABD150R2GIC REG LINEAR 5V 150MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 150mA | 150mA | 43 µA | 44 µA | 60dB (100Hz) | Enable, Reset, Watchdog | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
TPS76615DRIC REG LINEAR 1.5V 250MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 1.5V | - | - | 250mA | 50 µA | - | 63dB (1kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
LD29300D2M50RIC REG LINEAR 5V 3A D2PAK/A |
0 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14V | 5V | - | 0.7V @ 3A | 3A | 50 mA | 100 mA | 64dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
IFX25401TEVATMA1IC REG LIN POS ADJ 400MA TO252-5 |
0 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 40V | 2.5V | 20V | 0.5V @ 250mA | 400mA | 220 µA | 25 mA | 54dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | PG-TO252-5 |
