Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC5330-MFYML-TRIC REG LINEAR 1.5V/2.8V 8MLF |
0 |
|
Datasheet | - | 8-VFDFN Exposed Pad, 8-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 1.5V, 2.8V | - | 0.2V @ 300mA, 0.2V @ 300mA | 300mA, 300mA | 120 µA | 200 µA | 70dB ~ 65dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MLF® (2x2) |
|
|
MIC5330-PPYML-TRIC REG LINEAR 3V/3V 8MLF |
0 |
|
Datasheet | - | 8-VFDFN Exposed Pad, 8-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 3V, 3V | - | 0.2V @ 300mA, 0.2V @ 300mA | 300mA, 300mA | 120 µA | 200 µA | 70dB ~ 65dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MLF® (2x2) |
|
|
MIC5330-SGYML-TRIC REG LINEAR 1.8V/3.3V 8MLF |
0 |
|
Datasheet | - | 8-VFDFN Exposed Pad, 8-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 1.8V, 3.3V | - | 0.2V @ 300mA, 0.2V @ 300mA | 300mA, 300mA | 120 µA | 200 µA | 70dB ~ 65dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MLF® (2x2) |
|
|
MIC5330-SRYML-TRIC REG LINEAR 3.2V/3.3V 8MLF |
0 |
|
Datasheet | - | 8-VFDFN Exposed Pad, 8-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 3.2V, 3.3V | - | 0.2V @ 300mA, 0.2V @ 300mA | 300mA, 300mA | 120 µA | 200 µA | 70dB ~ 65dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MLF® (2x2) |
|
LD39300PT18-RIC REG LINEAR 1.8V 3A PPAK |
0 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | 0.4V @ 3A | 3A | 5 µA | 2.5 mA | 65dB ~ 55dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | PPAK |
|
SM72238TD-5.0/NOPBIC REG LINEAR 5V 100MA TO252-3 |
0 |
|
Datasheet | SolarMagic™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Positive | Fixed | 1 | 30V | 5V | - | 0.6V @ 100mA | 100mA | 140 µA | 14 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
TPS7201QPWG4IC REG LIN POS ADJ 250MA 8TSSOP |
0 |
|
Datasheet | - | 8-TSSOP (0.173", 4.40mm Width) | Tube | Discontinued at Digi-Key | Positive | Adjustable | 1 | 10V | 1.2V | 9.75V | 0.2V @ 350mA | 250mA | 80 µA | - | 85dB ~ 50dB (10Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-TSSOP |
|
TPS7233QDG4IC REG LINEAR 3.3V 250MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Discontinued at Digi-Key | Positive | Fixed | 1 | 10V | 3.3V | - | 1.1V @ 250mA | 250mA | 225 µA | 325 µA | 60dB ~ 50dB (120Hz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
LP2951ACDIC REG LIN POS ADJ 100MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Adjustable (Fixed) | 1 | 30V | 1.235V (5V) | 30V | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
LP2951ACD-3.3IC REG LINEAR 3.3V 100MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 30V | 3.3V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
LP2988IMMX-5.0IC REG LINEAR 5V 200MA 8VSSOP |
0 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 5V | - | 0.35V @ 200mA | 200mA | 120 µA | 3.7 mA | 65dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
BA00BC0WT-V5IC REG LINEAR POS ADJ 1A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Full Pack | Tube | Not For New Designs | Positive | Adjustable | 1 | 16V | 1.5V | 12V | - | 1A | 0.5 mA | 900 µA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C | - | - | Through Hole | TO-220FP-5 |
|
BA50BC0WT-V5IC REG LINEAR 5V 1A TO220FP-5 |
0 |
|
Datasheet | - | TO-220-5 Formed Leads | Bulk | Not For New Designs | Positive | Fixed | 1 | 16V | 5V | - | - | 1A | 0.5 mA | 900 µA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C | - | - | Through Hole | TO220FP-5(V5) |
.jpg)
|
BA15BC0WT-V5IC REG LINEAR 1.5V 1A TO220FP-5 |
0 |
|
- |
- | TO-220-5 Full Pack (Formed Leads) | Bulk | Obsolete | Positive | Fixed | 1 | 16V | 1.5V | - | - | 1A | 0.5 mA | 900 µA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C | - | - | Through Hole | TO-220FP-5 |
|

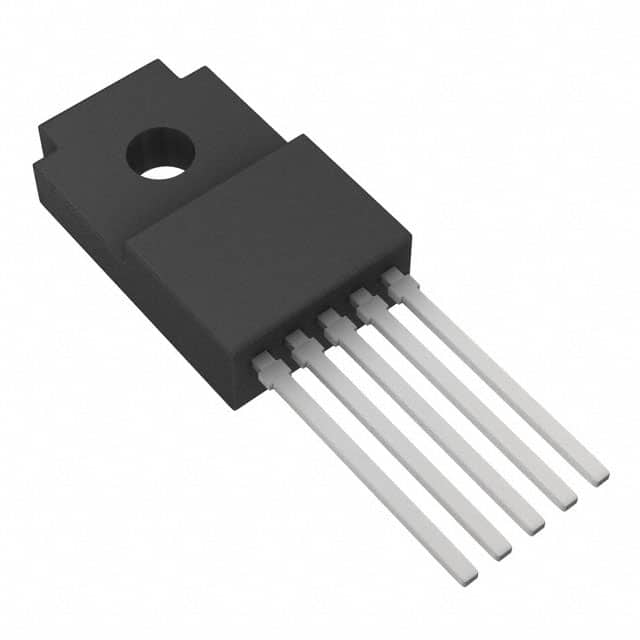

BA25BC0WT-V5IC REG LINEAR 2.5V 1A TO220FP-5 |
0 |
|
Datasheet | - | TO-220-5 Full Pack | Tube | Not For New Designs | Positive | Fixed | 1 | 16V | 2.5V | - | - | 1A | 0.5 mA | 900 µA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C | - | - | Through Hole | TO-220FP-5 |
|
|
BA90BC0WT-V5IC REG LINEAR 9V 1A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Full Pack | Tube | Not For New Designs | Positive | Fixed | 1 | 16V | 9V | - | - | 1A | 0.5 mA | 900 µA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C | - | - | Through Hole | TO-220FP-5 |
|
MIC2920A-4.8BUIC REG LIN 4.85V 400MA TO263-3 |
0 |
|
- |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 26V | 4.85V | - | 0.75V @ 400mA | 400mA | 300 µA | 12 mA | - | - | Load Dump, Over Current, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TO-263-3 |
|
|
BA15BC0WTIC REG LINEAR 1.5V 1A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 16V | 1.5V | - | - | 1A | 0.5 mA | 900 µA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C | - | - | Through Hole | TO-220FP-5 |
|
|
BA25BC0WTIC REG LINEAR 2.5V 1A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 16V | 2.5V | - | - | 1A | 0.5 mA | 900 µA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C | - | - | Through Hole | TO-220FP-5 |
|
|
BA30BC0WTIC REG LINEAR 3V 1A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 16V | 3V | - | - | 1A | 0.5 mA | 900 µA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C | - | - | Through Hole | TO-220FP-5 |
