Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC78M12ABTIC REG LINEAR 12V 500MA TO220AB |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | - | 500mA | - | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
|
MC78M15ABTIC REG LINEAR 15V 500MA TO220AB |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 15V | - | - | 500mA | - | - | 70dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
L4949EDTRWTRIC REG LINEAR 5V 100MA 8SO |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 28V | 5V | - | 0.5V @ 100mA | 100mA | 300 µA | 5 mA | - | Reset Output | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
LP3995ITL-1.9/NOPBIC REG LINEAR 1.9V 150MA 5DSBGA |
0 |
|
Datasheet | - | 5-WFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.9V | - | 0.1V @ 150mA | 150mA | 150 µA | 200 µA | 60dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 5-DSBGA (1.41x1.08) |
|
LM337KTPRIC REG LIN NEG ADJ 1.5A TO252-3 |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Negative | Adjustable | 1 | -40V | -1.2V | -37V | - | 1.5A | - | - | 77dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
MIC5203-4.7YM4-TRIC REG LINEAR 4.7V 80MA SOT143 |
0 |
|
Datasheet | - | TO-253-4, TO-253AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 4.7V | - | 0.6V @ 80mA | 80mA | 750 µA | 3 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-143 |
|
LP5990TM-3.3/NOPBIC REG LINEAR 3.3V 200MA 4DSBGA |
0 |
|
Datasheet | - | 4-WFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.25V @ 200mA | 200mA | 75 µA | - | 55dB (10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 4-DSBGA |
|
LP5900XR-1.8/NOPBIC REG LINEAR 1.8V 150MA 4DSBGA |
0 |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.15V @ 150mA | 150mA | 50 µA | 230 µA | 85dB ~ 40dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 4-DSBGA |
|
IRU1010-18CPIC REG LIN 1.8V 1A 2ULTRA THINPK |
0 |
|
Datasheet | - | 2-Ultra Thin-Pak™ | Tube | Obsolete | Positive | Fixed | 1 | 7V | 1.8V | - | 1.3V @ 1A | 1A | - | - | 70dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 2-Ultra Thin-Pak |
|
LF50ACPIC REG LINEAR 5V 500MA TO220FP |
0 |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 16V | 5V | - | 0.7V @ 500mA | 500mA | 1 mA | 12 mA | 76dB ~ 60dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220FP |
|

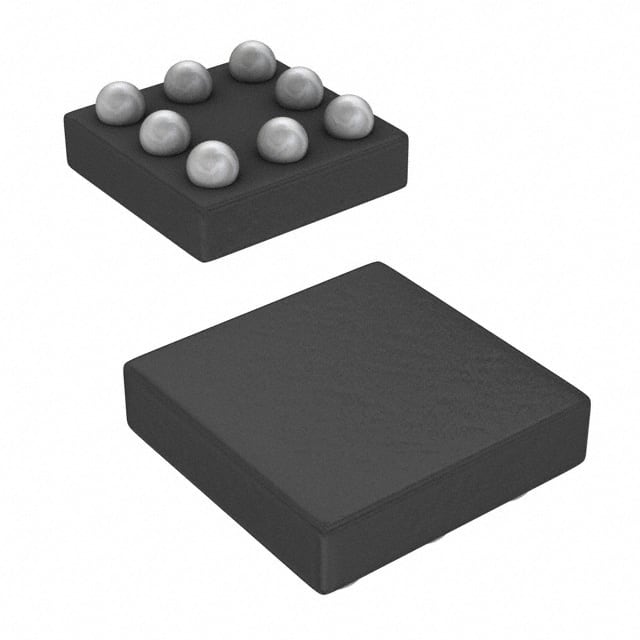

LP3986BL-2528IC REG LIN 2.5V/2.8V 150MA 8USMD |
0 |
|
Datasheet | - | 8-TFBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6V | 2.5V, 2.8V | - | 0.1V @ 150mA | 150mA | 130 µA | 320 µA | 60dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-µSMD (1.57x1.57) |
|
L4949EPIC REG LINEAR 5V 100MA 20SO |
0 |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 28V | 5V | - | 0.5V @ 100mA | 100mA | 300 µA | 5 mA | - | Reset Output | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 20-SO |
|
IRU1010-25CPIC REG LIN 2.5V 1A 2ULTRA THINPK |
0 |
|
Datasheet | - | 2-Ultra Thin-Pak™ | Tube | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 1.3V @ 1A | 1A | - | - | 70dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 2-Ultra Thin-Pak |
|
IRU1010-33CPIC REG LIN 3.3V 1A 2ULTRA THINPK |
0 |
|
Datasheet | - | 2-Ultra Thin-Pak™ | Tube | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 1.3V @ 1A | 1A | - | - | 70dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 2-Ultra Thin-Pak |
|
IRU1117-18CPIC REG LIN 1.8V 800MA 2-UTHINPAK |
0 |
|
Datasheet | - | 2-Ultra Thin-Pak™ | Tube | Obsolete | Positive | Fixed | 1 | 7V | 1.8V | - | 1.3V @ 1A | 800mA | - | - | 70dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 2-Ultra Thin-Pak |
__2.jpg)
|
LD1117DT33IC REG LINEAR 3.3V 800MA DPAK |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 15V | 3.3V | - | 1.2V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
LM79L05ACMIC REG LINEAR -5V 100MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Negative | Fixed | 1 | -35V | -5V | - | - | 100mA | 6 mA | - | 50dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 70°C | - | - | Surface Mount | 8-SOIC |
|
MC33375D-2.5IC REG LINEAR 2.5V 300MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 13V | 2.5V | - | 0.5V @ 300mA | 300mA | 200 µA | - | 75dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
MC33375D-3.0IC REG LINEAR 3V 300MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 13V | 3V | - | 0.5V @ 300mA | 300mA | 200 µA | - | 75dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
MC33375D-3.3IC REG LINEAR 3.3V 300MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 13V | 3.3V | - | 0.5V @ 300mA | 300mA | 200 µA | - | 75dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
