Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP5951MG-2.0IC REG LINEAR 2V 150MA SC70-5 |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2V | - | 0.35V @ 150mA | 150mA | 55 µA | 70 µA | 60dB ~ 50dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
|
LP5951MG-3.0IC REG LINEAR 3V 150MA SC70-5 |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.35V @ 150mA | 150mA | 55 µA | 70 µA | 60dB ~ 50dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
TPS78236DRVRIC REG LINEAR 3.6V 150MA 6WSON |
0 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.6V | - | 0.25V @ 150mA | 150mA | 1.3 µA | 8 µA | 40dB ~ 15dB (10Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
MIC5355-SGYMME-TRIC REG LINEAR 1.8V/3.3V 8MSOP |
0 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 3.3V | - | 0.8V @ 500mA, 0.8V @ 500mA | 500mA, 500mA | 0.53 µA | 200 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP-EP |
|
|
TPS70630DRVRIC REG LINEAR 3V 150MA 6WSON |
0 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3V | - | 1.54V @ 150mA | 150mA | 2.55 µA | 350 µA | 80dB ~ 52dB (10Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS70615DRVRIC REG LINEAR 1.5V 150MA 6WSON |
0 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 1.5V | - | - | 150mA | 2.55 µA | 350 µA | 80dB ~ 52dB (10Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|

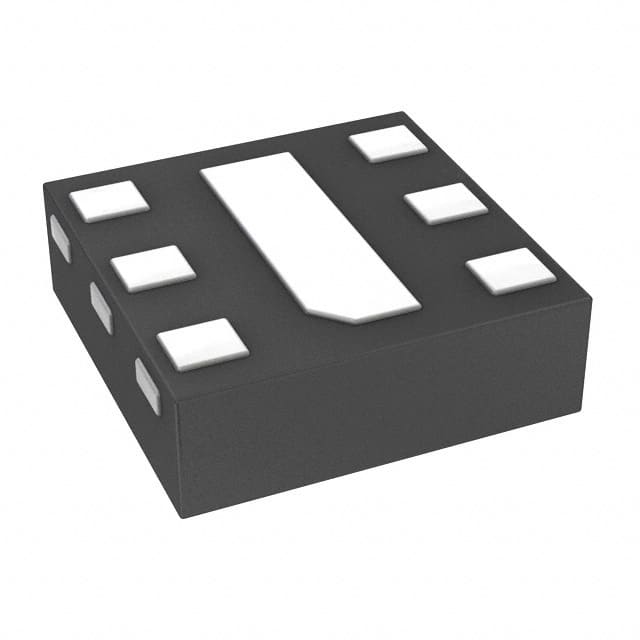

AP7346D-3318FS6-7IC REG LIN 1.8V/3.3V X2DFN1212-6 |
0 |
|
Datasheet | - | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.25V | 1.8V, 3.3V | - | 0.39V @ 120mA, 0.29V @ 120mA | 130mA, 130mA | 100 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | X2-DFN1212-6 |
|
LDL112PU10RIC REG LINEAR 1V 1.2A 6DFN |
0 |
|
Datasheet | - | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | 0.6V @ 1.2A | 1.2A | 70 µA | 400 µA | 57dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DFN (2x2) |
|
AP1122EG-UIC REG LINEAR 1.2V 1A SOT223-3 |
0 |
|
- |
- | TO-261-4, TO-261AA | Tube | Obsolete | Positive | Fixed | 1 | 12V | 1.2V | - | 1.3V @ 1A | 1A | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
MIC5238-1.0YD5IC REG LINEAR 1V 150MA TSOT23-5 |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Obsolete | Positive | Fixed | 1 | 6V | 1V | - | 0.5V @ 150mA | 150mA | 20 µA | 2.5 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
|
MIC5238-1.1YD5IC REG LIN 1.1V 150MA TSOT23-5 |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Obsolete | Positive | Fixed | 1 | 6V | 1.1V | - | 0.5V @ 150mA | 150mA | 20 µA | 2.5 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
MIC5238-1.3YD5IC REG LIN 1.3V 150MA TSOT23-5 |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Obsolete | Positive | Fixed | 1 | 6V | 1.3V | - | 0.5V @ 150mA | 150mA | 20 µA | 2.5 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
|
TPS71727DCKTG4IC REG LINEAR 2.7V 150MA SC70-5 |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6.5V | 2.7V | - | 0.3V @ 150mA | 150mA | 80 µA | 100 µA | 70dB ~ 45dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
TPS71709DSETG4IC REG LINEAR 0.9V 150MA 6WSON |
0 |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6.5V | 0.9V | - | 0.3V @ 150mA | 150mA | 80 µA | 100 µA | 70dB ~ 45dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (1.5x1.5) |
|
|
TPS71728DSETG4IC REG LINEAR 2.8V 150MA 6WSON |
0 |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6.5V | 2.8V | - | 0.3V @ 150mA | 150mA | 80 µA | 100 µA | 70dB ~ 45dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (1.5x1.5) |
|
L4931ABPT25IC REG LINEAR 2.5V 250MA PPAK |
0 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tube | Obsolete | Positive | Fixed | 1 | 20V | 2.5V | - | 0.8V @ 250mA | 250mA | 1 mA | 6 mA | 75dB ~ 55dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | PPAK |
|
|
L4931ABPT33IC REG LINEAR 3.3V 250MA PPAK |
0 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tube | Obsolete | Positive | Fixed | 1 | 20V | 3.3V | - | 0.8V @ 250mA | 250mA | 1 mA | 6 mA | 73dB ~ 55dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | PPAK |
|
|
L4931ABPT50IC REG LINEAR 5V 250MA PPAK |
0 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tube | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 0.8V @ 250mA | 250mA | 1 mA | 6 mA | 70dB ~ 55dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | PPAK |
|
|
LF18ABPTIC REG LINEAR 1.8V 500MA PPAK |
0 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tube | Obsolete | Positive | Fixed | 1 | 16V | 1.8V | - | 0.7V @ 200mA (Typ) | 500mA | 1 mA | 12 mA | 82dB ~ 60dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | PPAK |
|
LM1117DT-2.85/NOPBIC REG LIN 2.85V 800MA TO252-3 |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 15V | 2.85V | - | 1.2V @ 800mA | 800mA | 5 mA | 10 mA | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
