Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC5305-1.8YML-TRIC REG LINEAR 1.8V 150MA 6MLF |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 150mA | 150 µA | - | 85dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
MCP1703AT-2502E/MBIC REG LINEAR 2.5V 250MA SOT89-3 |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 2.5V | - | 1.1V @ 250mA | 250mA | 5 µA | - | 35dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
MCP1703AT-2802E/MBIC REG LINEAR 2.8V 250MA SOT89-3 |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 2.8V | - | 0.975V @ 250mA | 250mA | 5 µA | - | 35dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
MCP1703AT-4002E/MBIC REG LINEAR 4V 250MA SOT89-3 |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 4V | - | 0.725V @ 250mA | 250mA | 5 µA | - | 35dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
PAM3112DAB120IC REG LINEAR 1.2V 300MA TSOT25 |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.3V @ 300mA (Typ) | 300mA | 90 µA | - | 70dB ~ 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | TSOT-25 |
|
|
MIC5323-2.8YMT-TRIC REG LINEAR 2.8V 300MA 6DFN |
0 |
|
Datasheet | - | 6-TDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.22V @ 300mA | 300mA | 150 µA | - | 80dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
FAN25800AUC28XIC REG LINEAR 2.8V 250MA 4WLCSP |
0 |
|
Datasheet | - | 4-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.13V @ 250mA | 250mA | 25 µA | - | - | Enable | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 4-WLCSP (0.65x0.65) |
|
|
FAN25800AUC33XIC REG LINEAR 3.3V 500MA 4WLCSP |
0 |
|
Datasheet | - | 4-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.13V @ 250mA | 500mA | 25 µA | - | 85dB ~ 68dB (100Hz ~ 50Hz) | Enable | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 4-WLCSP (0.65x0.65) |
|
FAN25800AUCF27XIC REG LINEAR 2.7V 500MA 4WLCSP |
0 |
|
Datasheet | - | 4-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.13V @ 250mA | 500mA | 25 µA | - | - | Enable | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 4-WLCSP (0.65x0.65) |
|

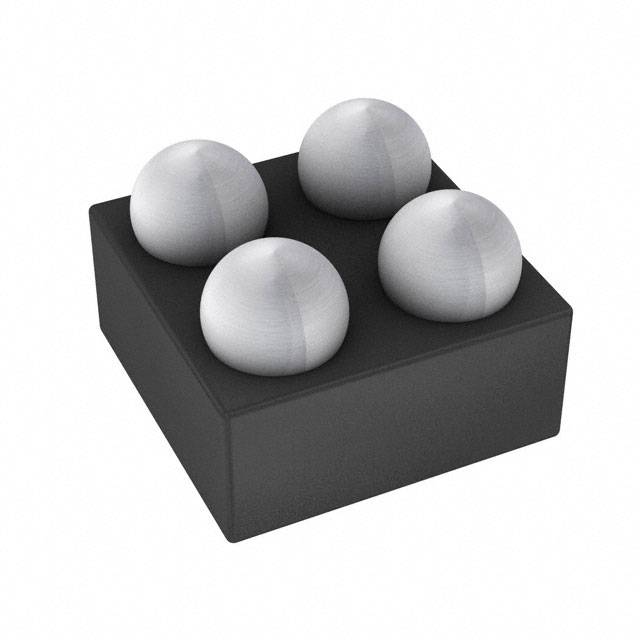

LD39030SJ33RIC REG LIN 3.3V 300MA 4FLIPCHIP |
0 |
|
Datasheet | - | 4-UFBGA, FCBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.3V @ 300mA | 300mA | 50 µA | 85 µA | 62dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C | - | - | Surface Mount | 4-Flipchip (0.79x0.79) |
|
|
LD39030SJ15RIC REG LIN 1.5V 300MA 4FLIPCHIP |
0 |
|
Datasheet | - | 4-UFBGA, FCBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.3V @ 300mA | 300mA | 50 µA | 85 µA | 62dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C | - | - | Surface Mount | 4-Flipchip (0.79x0.79) |
|
|
LD39030SJ18RIC REG LIN 1.8V 300MA 4FLIPCHIP |
0 |
|
Datasheet | - | 4-UFBGA, FCBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.3V @ 300mA | 300mA | 50 µA | 85 µA | 62dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C | - | - | Surface Mount | 4-Flipchip (0.79x0.79) |
|
NCP161AFCT450T2GIC REG LINEAR 4.5V 450MA 4WLCSP |
0 |
|
Datasheet | - | 4-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 4.5V | - | 0.21V @ 450mA | 450mA | 23 µA | - | 91dB ~ 48dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.64x0.64) |
|
FAN1582D12XIC REG LINEAR 1.2V 3A TO252-4L |
0 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 1.2V | - | 1.18V @ 3A | 3A | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | -65°C ~ 150°C | - | - | Surface Mount | TO-252 (DPAK) |
|
TC1108-2.8VDBTRIC REG LIN 2.8V 300MA SOT223-3 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.48V @ 300mA | 300mA | 90 µA | - | 60dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
TC1108-3.0VDBTRIC REG LINEAR 3V 300MA SOT223-3 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.48V @ 300mA | 300mA | 90 µA | - | 60dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
TC1108-2.5VDBTRIC REG LIN 2.5V 300MA SOT223-3 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.48V @ 300mA | 300mA | 90 µA | - | 60dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
MCP1702T-2102E/CBIC REG LIN 2.1V 200MA SOT23A-3 |
0 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 13.2V | 2.1V | - | - | 200mA | 5 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23A-3 |
|
|
MCP1702T-2202E/CBIC REG LIN 2.2V 200MA SOT23A-3 |
0 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 13.2V | 2.2V | - | - | 200mA | 5 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23A-3 |
|
|
MCP1702T-2302E/CBIC REG LIN 2.3V 200MA SOT23A-3 |
0 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 13.2V | 2.3V | - | - | 200mA | 5 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23A-3 |
