Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT3471EDD#TRIC REG BST CUK ADJ 1.3A DL 10DFN |
0 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Up, Step-Up/Step-Down | Positive and Negative (Dual Rail) | Boost, Cuk, Flyback, SEPIC | Adjustable | 2 | 2.1V | 16V | ±1V | ±40V | 1.3A | 1.2MHz | No | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
LT3494EDDB#TRMIC REG BOOST ADJ 115MA 8DFN |
0 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Up | Positive | Boost | Adjustable | 1 | 2.3V | 16V | 2.3V | 40V (Switch) | 115mA (Switch) | - | No | -40°C ~ 85°C | - | - | Surface Mount | 8-DFN (3x2) |
|
|
LT3471EDDIC REG BST CUK ADJ 1.3A DL 10DFN |
0 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tube | Obsolete | Step-Up, Step-Up/Step-Down | Positive and Negative (Dual Rail) | Boost, Cuk, Flyback, SEPIC | Adjustable | 2 | 2.1V | 16V | ±1V | ±40V | 1.3A | 1.2MHz | No | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
LT3479EDEIC REG BOOST ADJ 3A 14DFN |
0 |
|
Datasheet | - | 14-WFDFN Exposed Pad | Tube | Obsolete | Step-Up | Positive or Negative | Boost | Adjustable | 1 | 2.3V | 24V | 1.235V | 42V (Switch) | 3A (Switch) | 200kHz ~ 3.5MHz | No | -40°C ~ 85°C | - | - | Surface Mount | 14-DFN (4x3) |
|
LT3580IDDIC REG BOOST CUK ADJ 2A 8DFN |
0 |
|
- |
- | 8-WFDFN Exposed Pad | Tube | Obsolete | Step-Up, Step-Up/Step-Down | Positive or Negative | Boost, Cuk, SEPIC | Adjustable | 1 | 2.5V | 32V | 5V | 42V (Switch) | 2A (Switch) | 200kHz ~ 2MHz | No | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (3x3) |
|
|
LTC3388IDD-3IC REG BUCK PROG 50MA 10DFN |
0 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Programmable | 1 | 2.7V | 20V | 2.8V, 3V, 3.3V, 5V | - | 50mA | - | Yes | -40°C ~ 125°C | - | - | Surface Mount | 10-DFN (3x3) |
|
LTC3412EUFIC REG BUCK ADJ 2.5A 16QFN |
0 |
|
Datasheet | - | 16-WQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 2.625V | 5.5V | 0.8V | 5V | 2.5A | 300kHz ~ 4MHz | Yes | -40°C ~ 125°C | - | - | Surface Mount | 16-QFN (4x4) |
|
LTC3418EUHFIC REG BUCK ADJ 8A 38QFN |
0 |
|
- |
- | 38-WFQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 2.25V | 5.5V | 0.8V | 5V | 8A | 1MHz | Yes | -40°C ~ 85°C | - | - | Surface Mount | 38-QFN (5x7) |
|
|
LTC3561EDDIC REG BUCK ADJ 1A 8DFN |
0 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 2.625V | 5.5V | 0.8V | 5V | 1A | 1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-DFN (3x3) |
|
LTC3605IUFIC REG BUCK ADJ 5A 24QFN |
0 |
|
- |
- | 24-WFQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 15V | 0.6V | 19.8V | 5A | 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 24-QFN (4x4) |
|

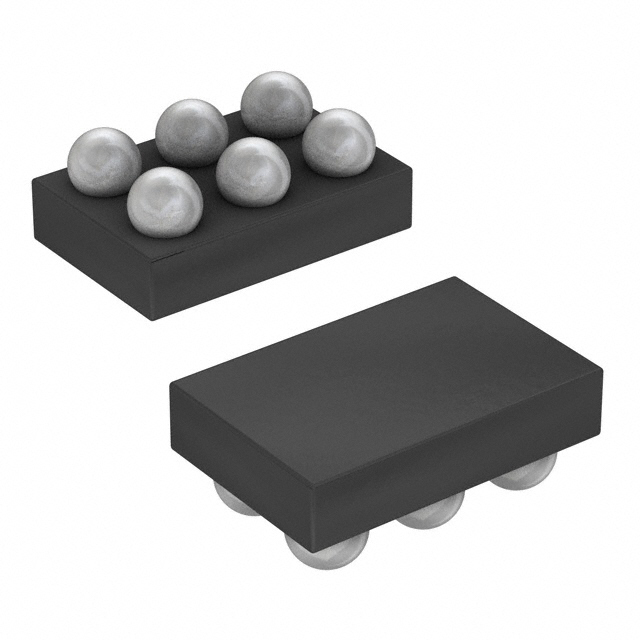

FAN4868UC33XIC REG BOOST 3.3V 300MA 6WLCSP |
0 |
|
Datasheet | TinyBoost® | 6-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Step-Up | Positive | Boost | Fixed | 1 | 2.3V | 3.2V | 3.3V | - | 300mA | 3MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WLCSP (0.88x1.23) |
|
IR3826MTRPBFAUMA1IC REG BUCK ADJ 23A 22IQFN |
0 |
|
Datasheet | SupIRBuck® | 22-PowerVQFN | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 1V | 17V | 0.6V | 14.62V | 23A | 1.5MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PG-IQFN-22 |
|
IRPS5401MXI04TRPAUMA1IC REG ADJ 50A 5OUT 56QFN |
0 |
|
Datasheet | - | 56-PowerVFQFN | Tape & Reel (TR) | Active | - | Negative | - | Adjustable | 5 | 5.5V | 12V | 0.5V | 3.6V | 50A | 200kHz ~ 1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 56-QFN (7x7) |
|
BA6161F-BZE2IC REG BOOST ADJ 3MA 8SOP |
0 |
|
- |
- | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 3V | 16V | 30V | 35V | 3mA | 100kHz | No | -20°C ~ 75°C (TA) | - | - | Surface Mount | 8-SOP |
|
TC1220ECH718IC REG CHARGE PUMP INV SOT23-6 |
0 |
|
- |
- | SOT-23-6 | Bulk | Obsolete | Ratiometric | Positive or Negative | Charge Pump | Fixed | 1 | 2.5V | 5.5V | -Vin, 2Vin | - | 25mA | 35kHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|

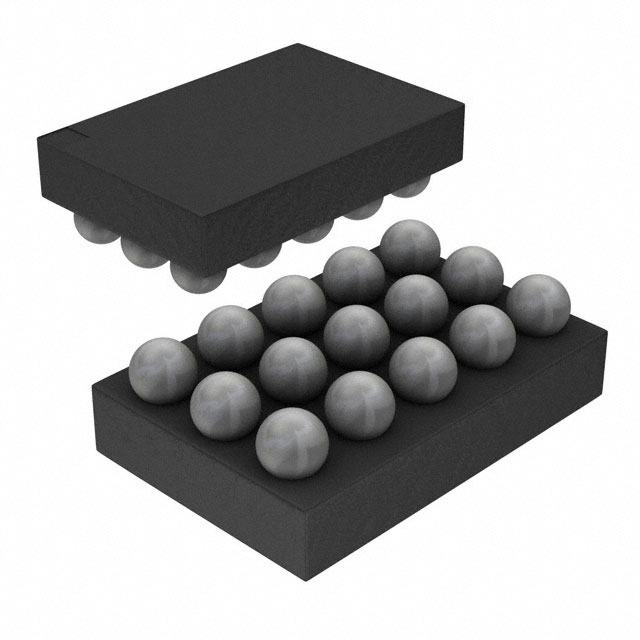

NCP6343MFCCT1GIC REG BUCK PROG 3A 15WLCSP |
0 |
|
- |
- | 15-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Programmable | 1 | 2.3V | 5.5V | 0.6V | 1.4V | 3A | 3MHz | Yes | - | - | - | Surface Mount | 15-WLCSP (1.34x1.99) |
|
ISL8560MREPIC REG BUCK ADJ 2A 20QFN |
0 |
|
Datasheet | - | 20-VQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 9V | 60V | 1.21V | 55V | 2A | 100kHz ~ 600kHz | Yes | -55°C ~ 125°C | - | - | Surface Mount | 20-QFN (6x6) |
|
|
SN1402065RVERIC REGULATOR SMD |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SN1602018RVFRIC REGULATOR SMD |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TPS544A20RVFRIC REGULATOR SMD |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
