Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC3546IFEIC REG BCK ADJ 1A/2A DL 28TSSOP |
0 |
|
Datasheet | - | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 2 | 2.3V | 5.5V | 0.6V | 5V | 1A, 2A | 2.25MHz, 750kHz ~ 4MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 28-TSSOP-EP |
|

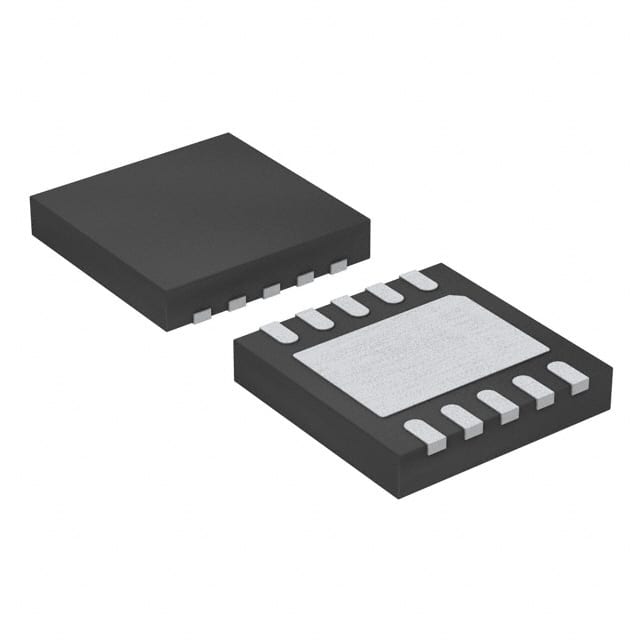

LTC3548EKD-1IC REG BUCK 1.575V/1.8V 10UTDFN |
0 |
|
- |
- | 10-UFDFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Fixed | 2 | 2.5V | 5.5V | 1.575V, 1.8V | - | 700mA, 1.2A | 2.25MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTDFN (3x3) |
|
LTC3601EUDIC REG BUCK ADJ 1.5A 16QFN |
0 |
|
- |
- | 16-WFQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 15V | 0.6V | 14.52V | 1.5A | 2MHz ~ 4MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-QFN (3x3) |
|
|
LTC3601IUDIC REG BUCK ADJ 1.5A 16QFN |
0 |
|
- |
- | 16-WFQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 15V | 0.6V | 14.52V | 1.5A | 2MHz ~ 4MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-QFN (3x3) |
|
|
LTC3604EUDIC REG BUCK ADJ 2.5A 16QFN |
0 |
|
- |
- | 16-WFQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 15V | 0.6V | 14.52V | 2.5A | 2MHz ~ 4MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-QFN (3x3) |
|
|
LTC3604IUDIC REG BUCK ADJ 2.5A 16QFN |
0 |
|
- |
- | 16-WFQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 15V | 0.6V | 14.52V | 2.5A | 2MHz ~ 4MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-QFN (3x3) |
|

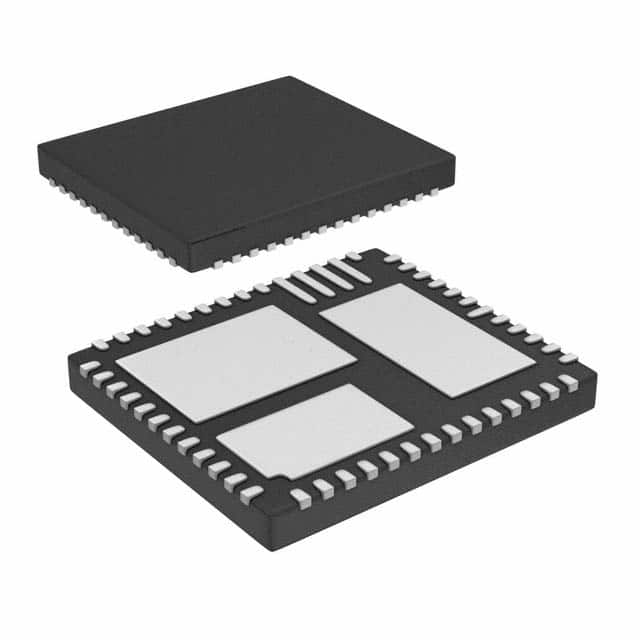

LTC3608EWKGIC REG BUCK ADJ 8A 52QFN |
0 |
|
- |
- | 52-VFQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 18V | 0.6V | 17.82V | 8A | - | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 52-QFN-Multipad (7x8) |
|
|
LTC3608IWKGIC REG BUCK ADJ 8A 52QFN |
0 |
|
- |
- | 52-VFQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 18V | 0.6V | 17.82V | 8A | - | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 52-QFN-Multipad (7x8) |
|
|
LTC3609EWKGIC REG BUCK ADJ 6A 52QFN |
0 |
|
- |
- | 52-VFQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 32V | 0.6V | 32V | 6A | - | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 52-QFN-Multipad (7x8) |
|
|
LTC3609IWKGIC REG BUCK ADJ 6A 52QFN |
0 |
|
- |
- | 52-VFQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 32V | 0.6V | 32V | 6A | - | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 52-QFN-Multipad (7x8) |
|

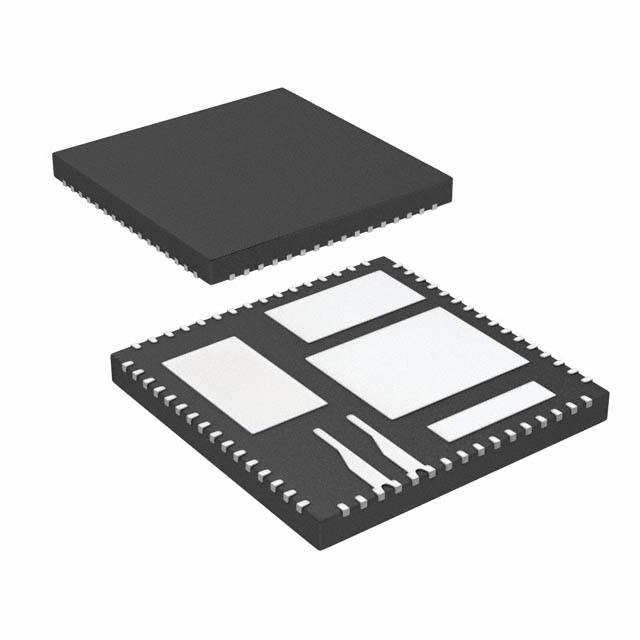

LTC3610EWPIC REG BUCK ADJ 12A 64QFN |
0 |
|
Datasheet | - | 64-PowerVFQFN | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 24V | 0.6V | 24V | 12A | - | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 64-QFN (9x9) |
|
|
LTC3610IWPIC REG BUCK ADJ 12A 64QFN |
0 |
|
Datasheet | - | 64-PowerVFQFN | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 24V | 0.6V | 24V | 12A | - | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 64-QFN (9x9) |
|
|
LTC3611EWPIC REG BUCK ADJ 10A 64QFN |
0 |
|
Datasheet | - | 64-PowerVFQFN | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 32V | 0.6V | 32V | 10A | 1MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 64-QFN (9x9) |
|
|
LTC3611IWPIC REG BUCK ADJ 10A 64QFN |
0 |
|
Datasheet | - | 64-PowerVFQFN | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 32V | 0.6V | 32V | 10A | 1MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 64-QFN (9x9) |
|
LTC3612EUDCIC REG BUCK ADJ 3A 20QFN |
0 |
|
- |
- | 20-WFQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 2.25V | 5.5V | 0.6V | 5.5V | 3A | 300kHz ~ 4MHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 20-QFN (3x3) |
|
|
LTC3612HUDCIC REG BUCK ADJ 3A 20QFN |
0 |
|
- |
- | 20-WFQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 2.25V | 5.5V | 0.6V | 5.5V | 3A | 300kHz ~ 4MHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 20-QFN (3x3) |
|
|
LTC3612IUDCIC REG BUCK ADJ 3A 20QFN |
0 |
|
Datasheet | - | 20-WFQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 2.25V | 5.5V | 0.6V | 5.5V | 3A | 300kHz ~ 4MHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 20-QFN (3x3) |
|
|
LTC3612MPUDCIC REG BUCK ADJ 3A 20QFN |
0 |
|
- |
- | 20-WFQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 2.25V | 5.5V | 0.6V | 5.5V | 3A | 300kHz ~ 4MHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 20-QFN (3x3) |
|

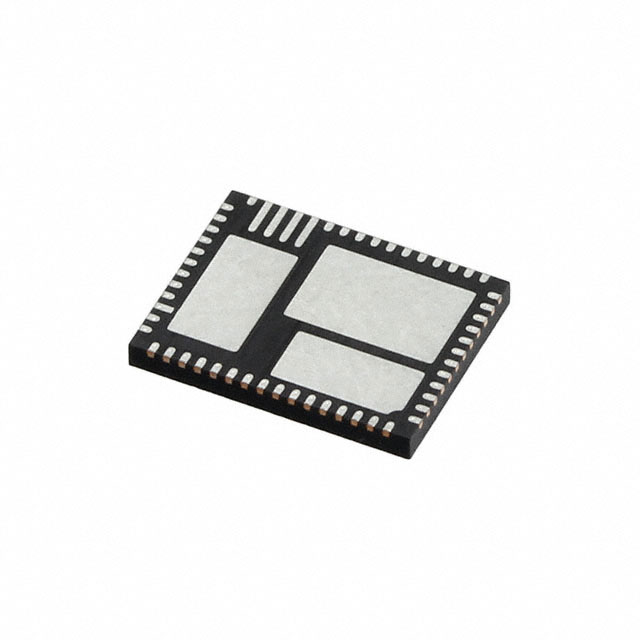

LTC3613EWKHIC REG BUCK ADJ 15A 56QFN |
0 |
|
- |
- | 56-VFQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 24V | 0.6V | 5.5V | 15A | 200kHz ~ 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 56-QFN Multipad (7x9) |
|
|
LTC3613IWKHIC REG BUCK ADJ 15A 56QFN |
0 |
|
- |
- | 56-VFQFN Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 24V | 0.6V | 5.5V | 15A | 200kHz ~ 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 56-QFN Multipad (7x9) |
