Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM2770SDX-1215/NOPBIC REG CHG PUMP PROG 250MA 10SON |
0 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Charge Pump | Programmable | 1 | 2.7V | 5.5V | 1.2V, 1.5V | - | 250mA | 700kHz | No | -30°C ~ 85°C (TA) | - | - | Surface Mount | 10-SON (3x3) |
|
LM2787TPX/NOPBIC REG CHRG PUMP ADJ 10MA 8DSBGA |
0 |
|
Datasheet | - | 8-UFBGA | Tape & Reel (TR) | Obsolete | Step-Down | Negative | Charge Pump | Adjustable | 1 | 2.7V | 5.5V | -1.5V | -5.2V | 10mA | 260kHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-DSBGA |
|
LM3354MMX-5.0/NOPBIC REG CHRG PUMP 5V 90MA 10VSSOP |
0 |
|
- |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Step-Up/Step-Down | Positive | Charge Pump | Fixed | 1 | 2.5V | 5.5V | 5V | - | 90mA | 1MHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-VSSOP |
|
LM34917TLX/NOPBIC REG BUCK 1.25A 12DSBGA |
0 |
|
- |
- | 12-WFBGA | Tape & Reel (TR) | Obsolete | Step-Down | - | Buck | - | 1 | 8V | 33V | - | - | 1.25A | - | - | - | - | - | Surface Mount | 12-DSBGA |
|
LM3670MFX-3.3/NOPBIC REG BUCK 3.3V 350MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 2.5V | 5.5V | 3.3V | - | 350mA | 1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
ISL8540IVEZIC REG BUCK ADJ 2A 20HTSSOP |
0 |
|
- |
- | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 9V | 40V | 1.21V | 35V | 2A | 100kHz ~ 600kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-HTSSOP |
|
FAN5355UC00XIC REG BUCK PROG 800MA 12WLCSP |
0 |
|
Datasheet | - | 12-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Programmable | 1 | 2.7V | 5.5V | 0.75V | 1.54V | 800mA | 3MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-WLCSP (2.23x1.46) |
|
UC2577TDKTTT-ADJG3IC REG BST FLYBACK ADJ 3A TO263 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter | Adjustable | 1 | 3V | 40V | 5V | 60V | 3A (Switch) | 52kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-5) |
 TinyBuck.jpg)
|
FAN2106EMPXIC REG BUCK ADJ 6A 25MLP |
0 |
|
Datasheet | TinyBuck® | 25-WQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 24V | 0.8V | 19.2V | 6A | 200kHz ~ 600kHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 25-MLP (6x5) |
|
FAN5350UCXIC REG BUCK 1.82V 600MA 5WLCSP |
0 |
|
Datasheet | - | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 2.7V | 5.5V | 1.82V | - | 600mA | 3MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-WLCSP (0.96x1.33) |
|

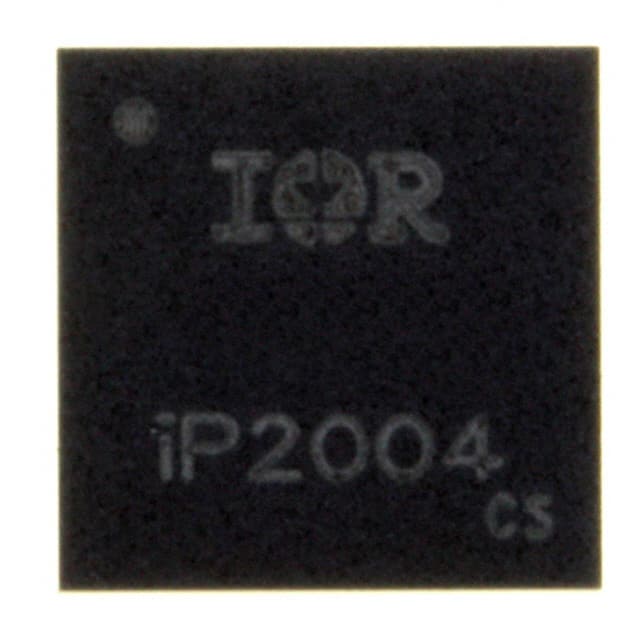

IP2004TRIC REG BUCK ADJ 40A LGA |
0 |
|
Datasheet | iPOWIR™ | Power Block (LGA) | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 13.2V | 0.8V | 8V | 40A | 250kHz ~ 1.5MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | LGA (7.7x7.7) |
|
IR3820MTRPBFIC REG BUCK ADJ 12A PQFN |
0 |
|
Datasheet | SupIRBuck® | 15-PowerVQFN | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 2.5V | 21V | 0.6V | 12V | 12A | 600kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PQFN (5x6) |
|
IR3821MTRPBFIC REG BUCK ADJ 7A PQFN |
0 |
|
Datasheet | SupIRBuck® | 15-PowerVQFN | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 2.5V | 21V | 0.6V | 12V | 7A | 600kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PQFN (5x6) |
|
|
IR3821AMTRPBFIC REG BUCK ADJ 9A PQFN |
0 |
|
Datasheet | SupIRBuck® | 15-PowerVQFN | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 2.5V | 21V | 0.6V | 12V | 9A | 300kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PQFN (5x6) |
|
|
IR3812MTRPBFIC REG BUCK ADJ 4A PQFN |
0 |
|
Datasheet | SupIRBuck® | 15-PowerVQFN | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 2.5V | 21V | 0.6V | 12V | 4A | 600kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PQFN (5x6) |
|
|
IR3822MTRPBFIC REG BUCK ADJ 4A PQFN |
0 |
|
Datasheet | SupIRBuck® | 15-PowerVQFN | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 2.5V | 21V | 0.6V | 12V | 4A | 600kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PQFN (5x6) |
|
21-0067IC REG BUCK ADJ 40A LGA |
0 |
|
Datasheet | iPOWIR™ | Power Block (LGA) | Tray | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 13.2V | 0.8V | 8V | 40A | 250kHz ~ 1.5MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | LGA (7.7x7.7) |
|
AP1538SG-13IC REG BUCK ADJ 3A 8SOP |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 18V | 0.8V | 18V | 3A | 300kHz | No | -20°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOP |
|
|
AP5004SG-13IC REG BUCK ADJ 2.5A 8SOP |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 10V | 32V | 0.8V | 6V | 2.5A | 300kHz | No | -10°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOP |
|
|
FAN5355UC02XIC REG BUCK PROG 800MA 12WLCSP |
0 |
|
Datasheet | - | 12-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Programmable | 1 | 2.7V | 5.5V | 0.75V | 1.44V | 800mA | 3MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-WLCSP (2.23x1.46) |
