Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP1501-12T5L-UIC REG BUCK 12V 3A TO220-5L |
0 |
|
Datasheet | * | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
AP1501A-50T5L-UIC REG BUCK 5V 5A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 40V | 5V | - | 5A | 150kHz | No | -20°C ~ 85°C (TA) | - | - | Through Hole | TO-220-5 |
|
|
AP1501A-T5L-UIC REG BUCK ADJ 5A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 40V | 1.23V | 37V | 5A | 150kHz | No | -20°C ~ 85°C (TA) | - | - | Through Hole | TO-220-5 |
|
AP1507-50D5L-13IC REG BUCK 5V 3A TO252-5 |
0 |
|
Datasheet | - | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Discontinued at Digi-Key | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 22V | 5V | - | 3A | 150kHz | No | -20°C ~ 85°C (TA) | - | - | Surface Mount | TO-252-5 |
|
AP1520SL-13IC REG BUCK ADJ 2A 8SOP |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 23V | 0.8V | 23V | 2A | 300kHz | No | -25°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOP |
|
AP1603WL-7IC REG BOOST ADJ 200MA SOT26 |
0 |
|
- |
- | SOT-23-6 | Tape & Reel (TR) | Obsolete | Step-Up | Positive | Boost | Adjustable (Programmable) | 1 | 1.1V | 5.5V | 2V (3.3V, 5V) | 5.8V (Switch) | 200mA (Switch) | 150kHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-26 |
|
|
AP1506-50T5RL-UIC REG BUCK 5V 3A TO220-5R |
0 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Discontinued at Digi-Key | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 22V | 5V | - | 3A | 150kHz | No | -20°C ~ 85°C (TA) | - | - | Through Hole | TO-220-5R |
|
FAN2013MPXIC REG BUCK ADJ 2A 6MLP |
0 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 5.5V | 0.8V | 4.5V | 2A | 1.3MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-MLP (3x3) |
|
NCP3163BPWGIC REG BUCK BST ADJ 3.4A 16SOIC |
0 |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) Exposed Pad | Tube | Obsolete | Step-Up, Step-Down | Positive or Negative | Buck, Boost | Adjustable | 1 | 2.5V | 40V | 1.25V | 40V (Switch) | 3.4A (Switch) | 50kHz ~ 300kHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
CS51413GD8IC REG BUCK ADJ 1.5A 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 40V | 1.27V | 38V | 1.5A | 520kHz | No | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
LM2574DW-ADJIC REG BUCK BST ADJ 500MA 16SOIC |
0 |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Step-Up, Step-Down, Step-Up/Step-Down | Positive or Negative | Buck, Boost, Buck-Boost | Adjustable | 1 | 4.75V | 40V | 1.23V | 37V | 500mA | 52kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
LM2574N-005GIC REG BUCK BOOST 5V 500MA 8PDIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Step-Up, Step-Down, Step-Up/Step-Down | Positive or Negative | Buck, Boost, Buck-Boost | Fixed | 1 | 4.75V | 40V | 5V | - | 500mA | 52kHz | No | -40°C ~ 125°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
LM2574N-015GIC REG BUCK BST 15V 500MA 8PDIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Step-Up, Step-Down, Step-Up/Step-Down | Positive or Negative | Buck, Boost, Buck-Boost | Fixed | 1 | 4.75V | 40V | 15V | - | 500mA | 52kHz | No | -40°C ~ 125°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
LM2574N-3.3GIC REG BUCK BST 3.3V 500MA 8PDIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Step-Up, Step-Down, Step-Up/Step-Down | Positive or Negative | Buck, Boost, Buck-Boost | Fixed | 1 | 4.75V | 40V | 3.3V | - | 500mA | 52kHz | No | -40°C ~ 125°C (TJ) | - | - | Through Hole | 8-PDIP |
|
LM2575T-12GIC REG BUCK 12V 1A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 4.75V | 40V | 12V | - | 1A | 52kHz | No | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-5 |
|
LM2575TV-005GIC REG BUCK 5V 1A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 4.75V | 40V | 5V | - | 1A | 52kHz | No | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-5 |
|
|
LM2575TV-5GIC REG BUCK 5V 1A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 4.75V | 40V | 5V | - | 1A | 52kHz | No | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-5 |
|
LM2576D2T-012GIC REG BUCK 12V 3A D2PAK-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Step-Down | Positive or Negative | Buck | Fixed | 1 | 7V | 40V | 12V | - | 3A | 52kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | D2PAK-5 |
|

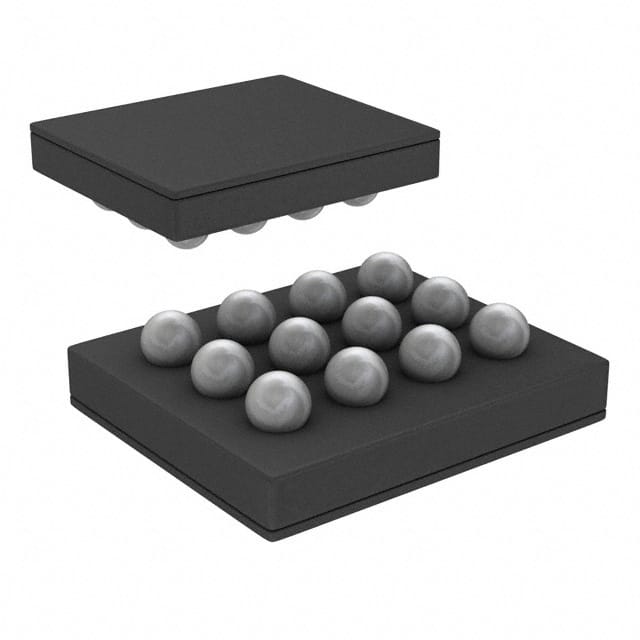

LM34917TL/NOPBIC BUCK 1.25A 12USMD |
0 |
|
- |
* | - | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LTC3548EDD-1#PBFIC REG BUCK 1.575V/1.8V DL 10DFN |
0 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Fixed | 2 | 2.5V | 5.5V | 1.575V, 1.8V | - | 700mA, 1.2A | 2.25MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (3x3) |
