Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC3118MPFE#TRPBFIC REG BUCK BOOST ADJ 2A 28TSSOP |
0 |
|
Datasheet | - | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.2V | 18V | 2V | 18V | 2A | 1.2MHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 28-TSSOP-EP |
|
LTC3119MPFE#TRPBFIC REG BUCK BOOST ADJ 5A 28TSSOP |
0 |
|
Datasheet | - | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.5V | 18V | 0.8V | 18V | 5A | 400kHz ~ 2MHz | Yes | -55°C ~ 150°C (TA) | - | - | Surface Mount | 28-TSSOP-EP |
|
TC7662AIJAIC REG CHG PUMP INV 40MA 8CERDIP |
0 |
|
Datasheet | - | 8-CDIP (0.300", 7.62mm) | Tube | Active | Ratiometric | Positive or Negative | Charge Pump | Fixed | 1 | 3V | 18V | -Vin, 2Vin | - | 40mA | 12kHz | No | -25°C ~ 85°C (TA) | - | - | Through Hole | 8-CERDIP |
|
LM2825N-12IC REG BUCK 12V 1A 24PDIP |
0 |
|
Datasheet | - | 24-DIP (0.600", 15.24mm) | Tube | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 15V | 40V | 12V | - | 1A | 150kHz | No | -40°C ~ 85°C (TA) | - | - | Through Hole | 24-PDIP |
|
LT1172MJ8#PBFIC REG BCK BST ADJ 1.25A 8CERDIP |
0 |
|
Datasheet | - | 8-CDIP (0.300", 7.62mm) | Tube | Obsolete | Step-Up, Step-Down, Step-Up/Step-Down | Positive or Negative | Buck, Boost, Cuk, Flyback, Forward Converter | Adjustable | 1 | 3V | 40V | 1.244V | 65V (Switch) | 1.25A (Switch) | 100kHz | No | -55°C ~ 125°C (TJ) | - | - | Through Hole | 8-CERDIP |
|
ER2120QIIC REG BUCK ADJ 2A 24QFN |
0 |
|
Datasheet | Enpirion® | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 5.5V | 14V | 0.6V | 12.32V | 2A | 500kHz ~ 1.2MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-QFN (4x4) |
|

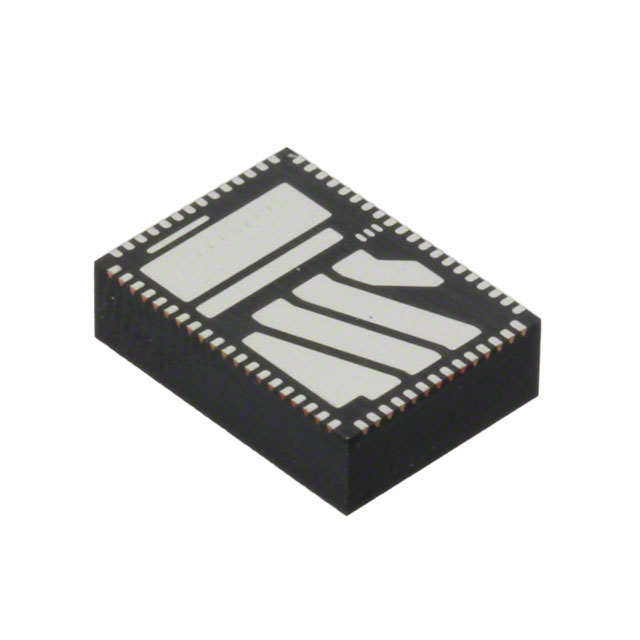

EN2342QIIC REG BUCK ADJ 4A 68QFN |
0 |
|
Datasheet | Enpirion® | 68-PowerBFQFN | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 14V | 0.75V | 5V | 4A | 1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 68-QFN (8x11) |
|
TPS62000SKGD1IC REG BUCK ADJ 300MA 0XCEPT |
0 |
|
Datasheet | - | 19-UltraCSP™ (Xcept) | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2V | 5.5V | 0.8V | 5.5V | 300mA | 750kHz | Yes | -55°C ~ 210°C (TA) | - | - | Surface Mount | 0-XCEPT |
|
LT8610AXMSE#TRPBFIC REG BUCK ADJ 3.5A 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.7V | 42V | 0.97V | 39.7V | 3.5A | 200kHz ~ 2.2MHz | Yes | -40°C ~ 175°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
JANS1N6316DUS/TRVOLTAGE REGULATOR _ B-BODY SQ. M |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SN0030HLBSYNCHRONOUS BUCK CONVERTER |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 14V | 0.6V | 14V | 12A | 100kHz ~ 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | - |
|

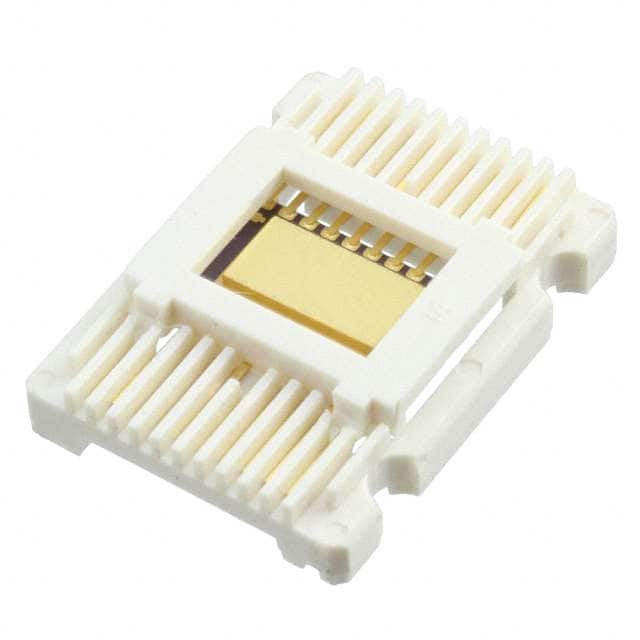

TPS50601HKH/EMIC REG BUCK ADJ 6A 20CFP |
0 |
|
Datasheet | SWIFT™ | 20-CDFF | Tube | Discontinued at Digi-Key | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 6.3V | 0.795V | 5.5V | 6A | 500kHz | Yes | 25°C (TA) | - | - | Surface Mount | 20-CFP |
|
TPS50601MHKHVIC REG BUCK ADJ 6A 20CFP |
0 |
|
Datasheet | SWIFT™ | 20-CDFF | Tube | Discontinued at Digi-Key | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 6.3V | 0.795V | 5.5V | 6A | 500kHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 20-CFP |
|
|
MHP8565ASCIC REG BUCK ADJ 3A 5SIP |
0 |
|
- |
- | 5-SIP | Bulk | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 12V | 0.5V | 4V | 3A | 500kHz | No | -55°C ~ 125°C | - | - | Through Hole | 5-SIP |
|
LM2588T-12/NOPBIC REG BST FLYBCK 12V 5A TO220-7 |
0 |
|
Datasheet | SIMPLE SWITCHER® | TO-220-7 Formed Leads | Tube | Obsolete | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter | Fixed | 1 | 4V | 40V | 12V | - | 5A (Switch) | 100kHz ~ 200kHz | No | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-7 |
|
ICL7660SCPAIC REG CHARG PUMP INV 45MA 8PDIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Ratiometric | Positive or Negative | Charge Pump | Fixed | 1 | 1.5V | 12V | -Vin, 2Vin | - | 45mA | 10kHz ~ 35kHz | No | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
ICL7662CPAIC REG CHARGE PUMP INV 8PDIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Ratiometric | Positive or Negative | Charge Pump | Fixed | 1 | 4.5V | 20V | -Vin, 2Vin | - | - | 10kHz | No | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
LM2575HVM-5.0/NOPBIC REG BUCK 5V 1A 24SOIC |
0 |
|
Datasheet | SIMPLE SWITCHER® | 24-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 4V | 60V | 5V | - | 1A | 52kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 24-SOIC |
|
|
LM2575HVM-ADJ/NOPBIC REG BUCK ADJ 1A 24SOIC |
0 |
|
Datasheet | SIMPLE SWITCHER® | 24-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 60V | 1.23V | 57V | 1A | 52kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 24-SOIC |
|
LM2575HVN-12/NOPBIC REG BUCK 12V 1A 16PDIP |
0 |
|
Datasheet | SIMPLE SWITCHER® | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 4V | 60V | 12V | - | 1A | 52kHz | No | -40°C ~ 125°C (TJ) | - | - | Through Hole | 16-PDIP |
