Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC3112MPFE#TRPBFIC REG BUCK BST ADJ 2.5A 20TSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.7V | 15V | 2.5V | 14V | 2.5A | 750kHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 20-TSSOP-EP |
|

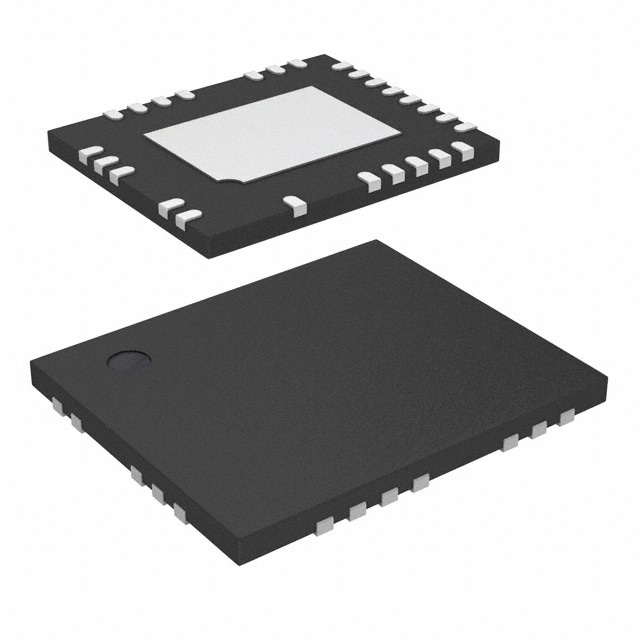

LT7101MPUHE#TRPBFIC REG BUCK ADJ 1A 36QFN |
0 |
|
Datasheet | - | 36-WFQFN, 26 Leads, Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.4V | 105V | 1V | 105V | 1A | 200kHz ~ 2MHz | Yes | -55°C ~ 150°C (TA) | - | - | Surface Mount | 36-QFN (5x6) |
|
LTC3615MPUF#TRPBFIC REG BUCK ADJ 3A DL 24QFN |
0 |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 2 | 2.25V | 5.5V | 0.6V | 5.5V | 3A | 400kHz ~ 4MHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 24-QFN (4x4) |
|
|
LTC3615MPUF-1#PBFIC REG BUCK ADJ 3A DL 24QFN |
0 |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 2 | 2.25V | 5.5V | 0.6V | 5.5V | 3A | 400kHz ~ 4MHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 24-QFN (4x4) |
|
|
LTC3615MPUF-1#TRPBFIC REG BUCK ADJ 3A DL 24QFN |
0 |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 2 | 2.25V | 5.5V | 0.6V | 5.5V | 3A | 400kHz ~ 4MHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 24-QFN (4x4) |
|
LTC3615MPFE#TRPBFIC REG BUCK ADJ 3A DL 24TSSOP |
0 |
|
Datasheet | - | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 2 | 2.25V | 5.5V | 0.6V | 5.5V | 3A | 400kHz ~ 4MHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 24-TSSOP |
|
|
LTC3615MPFE-1#TRPBFIC REG BUCK ADJ 3A DL 24TSSOP |
0 |
|
Datasheet | - | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 2 | 2.25V | 5.5V | 0.6V | 5.5V | 3A | 400kHz ~ 4MHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 24-TSSOP |
|
78ST235HCIC REG BCK 3.45V 2A SIP MODULE-3 |
0 |
|
Datasheet | - | 3-SIP Module | Bulk | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 7V | 20V | 3.45V | - | 2A | 1MHz | - | -40°C ~ 85°C (TA) | - | - | Through Hole, Right Angle | SIP Module-3 |
|

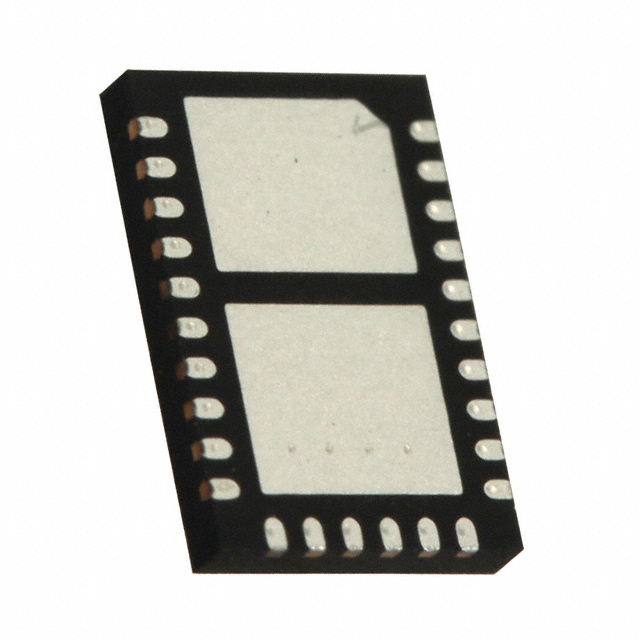

LT3690MPUFE#TRPBFIC REG BUCK ADJ 4A 26QFN |
0 |
|
Datasheet | - | 26-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.9V | 36V | 0.8V | 20V | 4A | 138kHz ~ 1.5MHz | No | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 26-QFN (4x6) |
|
LT3580MPMS8E#TRPBFIC REG BOOST CUK ADJ 2A 8MSOP |
0 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Up, Step-Up/Step-Down | Positive or Negative | Boost, Cuk, SEPIC | Adjustable | 1 | 2.5V | 32V | 5V | 42V (Switch) | 2A (Switch) | 200kHz ~ 2MHz | No | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
|
LTC3610EWP#TRPBFIC REG BUCK ADJ 12A 64QFN |
0 |
|
Datasheet | - | 64-PowerVFQFN | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 24V | 0.6V | 24V | 12A | - | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 64-QFN (9x9) |
|
|
LTC3115MPFE-1#TRPBFIC REG BUCK BOOST ADJ 20TSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.2V | 40V | 2.7V | 40V | 1A, 2A | 100kHz ~ 2MHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 20-TSSOP-EP |
|
|
LTC3115MPFE-2#TRPBFIC REG BUCK BOOST ADJ 20TSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.2V | 40V | 2.7V | 40V | 800mA, 2A | 100kHz ~ 2MHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 20-TSSOP-EP |
|
EN6310QIIC REG BUCK ADJ 1A 30QFN |
0 |
|
Datasheet | Enpirion® | 30-FQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 2.7V | 5.5V | 0.6V | 3.3V | 1A | 2.2MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 30-QFN (4x5) |
|
TPS57140MDRCREPIC REG BUCK ADJ 1.5A 10VSON |
0 |
|
Datasheet | SWIFT™ | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.5V | 42V | 0.8V | 39V | 1.5A | 100kHz ~ 2.5MHz | No | -55°C ~ 125°C (TA) | - | - | Surface Mount | 10-VSON (3x3) |
|
LT1070MKIC MULTI CONFIG ADJ 5A TO3-4 |
0 |
|
Datasheet | * | TO-3-4 | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | TO-3 |
|
LTC3118MPUFD#PBFIC REG BUCK BOOST ADJ 2A 24QFN |
0 |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tube | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.2V | 18V | 2V | 18V | 2A | 1.2MHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 24-QFN (4x5) |
|
|
LTC3118MPUFD#TRPBFIC REG BUCK BOOST ADJ 2A 24QFN |
0 |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.2V | 18V | 2V | 18V | 2A | 1.2MHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 24-QFN (4x5) |
|
|
LTC3611EWP#TRPBFIC REG BUCK ADJ 10A 64QFN |
0 |
|
Datasheet | - | 64-PowerVFQFN | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 32V | 0.6V | 32V | 10A | 1MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 64-QFN (9x9) |
|
LTC3118MPFE#PBFIC REG BUCK BOOST ADJ 2A 28TSSOP |
0 |
|
Datasheet | - | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.2V | 18V | 2V | 18V | 2A | 1.2MHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 28-TSSOP-EP |
