Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC3261MPMSE#TRPBFIC REG CHARGE PUMP 100MA 12MSOP |
0 |
|
Datasheet | - | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Ratiometric | Positive or Negative | Charge Pump | Fixed | 1 | 4.5V | 32V | -Vin, Vin/2 | - | 100mA | 500kHz | No | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 12-MSOP-EP |
|
LT1070IKIC REG 5A TO3 |
0 |
|
Datasheet | * | TO-3-4 | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | TO-3 |
|
LT1107CS8-5#TRPBFIC REG BUCK BOOST 5V 1.5A 8SO |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Step-Up, Step-Down | Positive or Negative | Buck, Boost | Fixed | 1 | 2V | 30V | 5V | - | 1.5A (Switch) | 63kHz | No | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
|
|
LT1070HVCKIC REG 5A TO3 |
0 |
|
Datasheet | * | TO-3-4 | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | TO-3 |
|
L4975AIC REG BUCK ADJ 5A 15MULTIWATT |
0 |
|
Datasheet | - | Multiwatt-15 (Vertical, Bent and Staggered Leads) | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 15V | 50V | 5.1V | 40V | 5A | 200kHz ~ 500kHz | No | -40°C ~ 150°C (TJ) | - | - | Through Hole | 15-Multiwatt |
|
LT3509IMSE#TRPBFIC REG BUCK ADJ 700MA DL 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 2 | 3.6V | 36V | 0.8V | 34.2V | 700mA | 260kHz ~ 2.15MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LTC3637IMSE#TRPBFIC REG BUCK ADJ 1A 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 76V | 0.8V | 76V | 1A | - | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
|
LTC3630AHMSE#TRPBFIC REG BUCK ADJ 500MA 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive or Negative | Buck | Adjustable (Programmable) | 1 | 4V | 76V | 0.8V (1.8V, 3.3V, 5V) | 76V | 500mA | - | Yes | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LTC3119HFE#TRPBFIC REG BUCK BOOST ADJ 5A 28TSSOP |
0 |
|
Datasheet | - | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.5V | 18V | 0.8V | 18V | 5A | 400kHz ~ 2MHz | Yes | -40°C ~ 150°C (TA) | - | - | Surface Mount | 28-TSSOP-EP |
|
|
LTC3604IMSE#TRPBFIC REG BUCK ADJ 2.5A 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 15V | 0.6V | 14.52V | 2.5A | 2MHz ~ 4MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LT3684IMSE#TRPBFIC REG BUCK ADJ 2A 10MSOP |
0 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 34V | 1.265V | 20V | 2A | 300kHz ~ 3MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
IP2002IC REG BUCK ADJ 30A 133BGA |
0 |
|
Datasheet | iPOWIR™ | 133-BFBGA Power Module | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 13.2V | 0.9V | 3.3V | 30A | 150kHz ~ 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 133-BGA Power Block (11x11) |
|
LTC3417AEFE#TRPBFIC REG BUCK ADJ 1A/1.5A 20TSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 2 | 2.25V | 5.5V | 0.8V | 5V | 1A, 1.5A | 1.5MHz, 600kHz ~ 4MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TSSOP-EP |
|

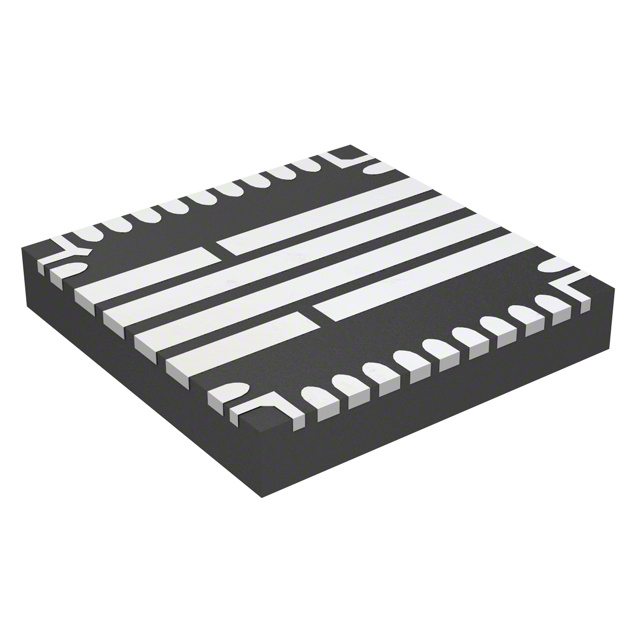

UCD7242MRSJREPIC REG BUCK 10A DL 32VQFN |
0 |
|
Datasheet | - | 32-PowerVFQFN | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | - | 2 | 4.75V | 18V | - | - | 10A | 300kHz ~ 2MHz | Yes | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 32-VQFN-HR (6x6) |
|
UC2577TDTR-ADJG3IC REG BST FLYBACK ADJ 3A TO263 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter | Adjustable | 1 | 3V | 40V | 5V | 60V | 3A (Switch) | 52kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
MIC7400YFL-TRIC REG BUCK BST PROG HEX 36FQFN |
0 |
|
Datasheet | HyperLight Load® | 36-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up, Step-Down | Positive | Buck, Boost | Programmable | 6 | 2.4V | 5.5V | 1.05V, 1.1V, 1.25V, 1.8V, 12V | - | 200mA, 3A | 2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 36-FQFN (4.5x4.5) |
|
LTC3622EDE-2#TRPBFIC REG BUCK ADJ 1A DL 14DFN |
0 |
|
Datasheet | - | 14-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 2 | 2.7V | 17V | 0.6V | 17V | 1A | 2.25MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 14-DFN (4x3) |
|
|
LT3509HMSE#TRPBFIC REG BUCK ADJ 700MA DL 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 2 | 3.6V | 36V | 0.8V | 34.2V | 700mA | 260kHz ~ 2.15MHz | No | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
|
IP2003IC REG BUCK ADJ 40A LGA |
0 |
|
Datasheet | iPOWIR™ | Power Block (LGA) | Tray | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 13.2V | 0.8V | 3.3V | 40A | 300kHz ~ 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | LGA (11x11) |
|
|
IP2003AIC REG BUCK ADJ 40A LGA |
0 |
|
Datasheet | iPOWIR™ | Power Block (LGA) | Tray | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 13.2V | 0.8V | 3.3V | 40A | 300kHz ~ 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | LGA (11x11) |
