Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS54311MPWPREPIC REG BUCK 0.9V 3A 20HTSSOP |
0 |
|
Datasheet | SWIFT™ | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 3V | 6V | 0.9V | - | 3A | 350kHz, 550kHz | Yes | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 20-HTSSOP |
|
|
TPS54315MPWPREPIC REG BUCK 2.5V 3A 20HTSSOP |
0 |
|
Datasheet | SWIFT™ | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 3V | 6V | 2.5V | - | 3A | 350kHz, 550kHz | Yes | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 20-HTSSOP |
|
LT1767EMS8-3.3#TRPBFIC REG BCK SEPIC 3.3V 1.5A 8MSOP |
0 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck, SEPIC | Fixed | 1 | 3V | 25V | 3.3V | - | 1.5A | 1.25MHz | No | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 8-MSOP |
|
LT1171HVCQ#TRPBFIC REG BUCK BST ADJ 2.5A DDPAK-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Step-Up, Step-Down, Step-Up/Step-Down | Positive or Negative | Buck, Boost, Cuk, Flyback, Forward Converter | Adjustable | 1 | 3V | 60V | 1.244V | 75V (Switch) | 2.5A (Switch) | 100kHz | No | 0°C ~ 100°C (TJ) | - | - | Surface Mount | DDPAK-5 |
|
LT7171RV#TRPBFIC REG BUCK PROG 20A 30LQFN |
0 |
|
Datasheet | Silent Switcher® | 30-PowerTFQFN | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Programmable | 1 | 1.5V, 2.9V | 16V | 0.4V | 5.5V | 20A | 400kHz ~ 4MHz | Yes | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 30-LQFN (3.5x4) |
|
|
LT7171RV-1#TRPBFIC REG BUCK PROG 20A 30LQFN |
0 |
|
Datasheet | Silent Switcher® | 30-PowerTFQFN | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Programmable | 1 | 1.5V, 2.9V | 16V | 0.4V | 5.5V | 20A | 400kHz ~ 4MHz | Yes | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 30-LQFN (3.5x4) |
|
LT3973IMSE-3.3#TRPBFIC REG BUCK 3.3V 750MA 10MSOP |
0 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 4.2V | 42V | 3.3V | - | 750mA | 195kHz ~ 2.15MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
|
LT3973IMSE-5#TRPBFIC REG BUCK 5V 750MA 10MSOP |
0 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 4.2V | 42V | 5V | - | 750mA | 195kHz ~ 2.15MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
LTC3245IDE#TRPBFIC REG CHRG PUMP ADJ 250MA 12DFN |
0 |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive | Charge Pump | Adjustable (Programmable) | 1 | 2.7V | 38V | 2.5V (3.3V, 5V) | 5V | 250mA | 450kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-DFN (4x3) |
|
|
IP2003TRIC REG BUCK ADJ 40A LGA |
0 |
|
Datasheet | iPOWIR™ | Power Block (LGA) | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 13.2V | 0.8V | 3.3V | 40A | 300kHz ~ 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | LGA (11x11) |
|

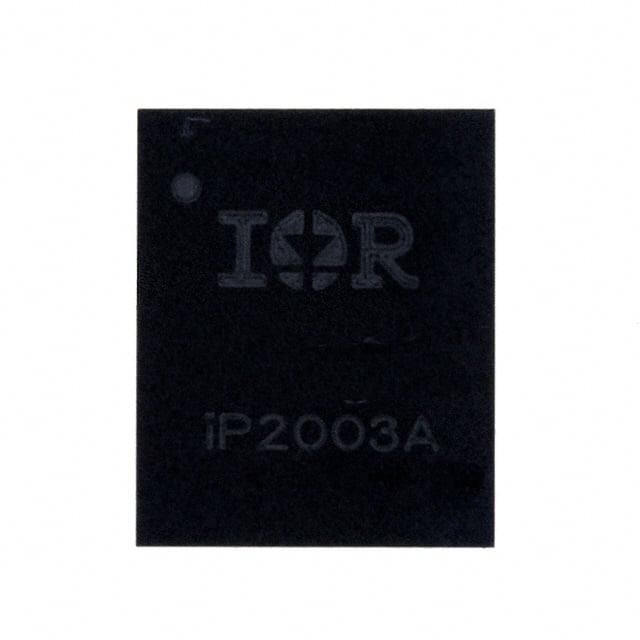

IP2003ATRIC REG BUCK ADJ 40A LGA |
0 |
|
Datasheet | iPOWIR™ | Power Block (LGA) | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 13.2V | 0.8V | 3.3V | 40A | 300kHz ~ 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | LGA (11x11) |
|
|
IP2003ATRPBFIC REG BUCK ADJ 40A LGA |
0 |
|
Datasheet | iPOWIR™ | Power Block (LGA) | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 13.2V | 0.8V | 3.3V | 40A | 300kHz ~ 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | LGA (11x11) |
|
LTC1504CS8IC REG BUCK ADJ 500MA 8SO |
1 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 10V | 1.265V | 9V | 500mA | 200kHz | Yes | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
|
TPS62112MRSAREPIC REG BUCK 5V 1.5A 16QFN |
0 |
|
Datasheet | - | 16-VQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 3.1V | 17V | 5V | - | 1.5A | 1MHz | Yes | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 16-QFN (4x4) |
|
LTC3119EFE#TRPBFIC REG BUCK BOOST ADJ 5A 28TSSOP |
0 |
|
Datasheet | - | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.5V | 18V | 0.8V | 18V | 5A | 400kHz ~ 2MHz | Yes | -40°C ~ 125°C (TA) | - | - | Surface Mount | 28-TSSOP-EP |
|
LT1371HVISW#TRPBFIC REG BUCK BOOST ADJ 3A 20SO |
0 |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Step-Up, Step-Down, Step-Up/Step-Down | Positive or Negative | Buck, Boost, Cuk, Flyback, Forward Converter, SEPIC | Adjustable | 1 | 2.7V | 30V | 1.245V | 42V (Switch) | 3A (Switch) | 500kHz | No | 0°C ~ 70°C (TA) | - | - | Surface Mount | 20-SO |
|
|
MIC7401YFL-TRIC REG BUCK BST PROG HEX 36FQFN |
0 |
|
Datasheet | HyperLight Load® | 36-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up, Step-Down | Positive | Buck, Boost | Programmable | 6 | 2.4V | 5.5V | 1.05V, 1.1V, 1.25V, 1.8V, 12V | - | 200mA, 3A | 2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 36-FQFN (4.5x4.5) |
|
21-0042IC REG BUCK ADJ 20A 133BGA |
0 |
|
Datasheet | iPOWIR™ | 133-BFBGA Power Module | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 12.6V | 0.9V | 3.3V | 20A | 150kHz ~ 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 133-BGA Power Block (11x11) |
|
LT3682IDD#TRPBFIC REG BUCK ADJ 1A 12DFN |
0 |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 36V | 0.8V | 20V | 1A | 250kHz ~ 2.2MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-DFN (3x3) |
|
LT3695EMSE#TRPBFIC REG BUCK ADJ 1A 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 36V | 0.8V | 20V | 1A | 250kHz ~ 2.2MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
