Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC3533EDE#TRPBFIC REG BUCK BOOST ADJ 2A 14DFN |
14,066 |
|
Datasheet | - | 14-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up, Step-Down | Positive | Buck, Boost | Adjustable | 1 | 1.8V | 5.5V | 1.8V | 5.25V | 2A | 300kHz ~ 2MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-DFN (4x3) |
|
LTC3630IMSE#TRPBFIC REG BUCK ADJ 500MA 16MSOP |
8,161 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive or Negative | Buck | Adjustable (Programmable) | 1 | 4V | 65V | 0.8V (1.8V, 3.3V, 5V) | 65V | 500mA | - | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LT8610EMSE#TRPBFIC REG BUCK ADJ 2.5A 16MSOP |
7,482 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.4V | 42V | 0.97V | 40V | 2.5A | 200kHz ~ 2.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LT3480EMSE#TRPBFIC REG BUCK ADJ 2A 10MSOP |
3,601 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 36V | 0.79V | 20V | 2A | 200kHz ~ 2.4MHz | No | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
|
LTC3533EDE#PBFIC REG BUCK BOOST ADJ 2A 14DFN |
2,456 |
|
Datasheet | - | 14-WFDFN Exposed Pad | Tube | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 1.8V | 5.5V | 1.8V | 5.25V | 2A | 300kHz ~ 2MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-DFN (4x3) |
|
|
LT3480EMSE#PBFIC REG BUCK ADJ 2A 10MSOP |
1,760 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 36V | 0.79V | 20V | 2A | 200kHz ~ 2.4MHz | No | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
|
LT8610EMSE#PBFIC REG BUCK ADJ 2.5A 16MSOP |
1,412 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.4V | 42V | 0.97V | 40V | 2.5A | 200kHz ~ 2.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
|
LT3980EMSE#TRPBFIC REG BUCK ADJ 2A 16MSOP |
1,285 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 58V | 0.79V | 57.42V | 2A | 225kHz ~ 2.25MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
|
LT3995EMSE#TRPBFIC REG BUCK ADJ 3A 16MSOP |
890 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.3V | 60V | 1.197V | 55.8V | 3A | 200kHz ~ 2.25MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LTC3311SIV#TRMPBFIC REG BUCK ADJ 12.5A 18LQFN |
577 |
|
Datasheet | Silent Switcher®2 | 18-TFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.25V | 5.5V | 0.5V | 5.5V | 12.5A | 2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 18-LQFN (3x3) |
|
LTC1144IS8#TRPBFIC REG CHARGE PUMP INV 50MA 8SO |
3,889 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Ratiometric | Positive or Negative | Charge Pump | Fixed | 1 | 2V | 18V | -Vin, 2Vin, Vin/2 | - | 50mA | 4kHz ~ 10kHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SO |
|
|
LTC1144IS8#PBFIC REG CHARGE PUMP INV 50MA 8SO |
318 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Ratiometric | Positive or Negative | Charge Pump | Fixed | 1 | 2V | 18V | -Vin, 2Vin, Vin/2 | - | 50mA | 4kHz ~ 10kHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SO |
|
LT8631EFE#TRPBFIC REG BUCK ADJ 1A 20TSSOP |
4,465 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 100V | 0.8V | 60V | 1A | 100kHz ~ 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-TSSOP-EP |
|
|
LT8631EFE#PBFIC REG BUCK ADJ 1A 20TSSOP |
766 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 100V | 0.8V | 60V | 1A | 100kHz ~ 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-TSSOP-EP |
|
|
LT1776IS8#PBFIC REG BUCK ADJ 550MA 8SO |
6,068 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 7.4V | 40V | 1.24V | 34V | 550mA (Switch) | 200kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
LT1776IS8#TRPBFIC REG BUCK ADJ 550MA 8SO |
4,987 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 7.4V | 40V | 1.24V | 34V | 550mA (Switch) | 200kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
LTC3261HMSE#PBFIC REG CHARGE PUMP 100MA 12MSOP |
4 |
|
Datasheet | - | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Ratiometric | Positive or Negative | Charge Pump | Fixed | 1 | 4.5V | 32V | -Vin, Vin/2 | - | 100mA | 500kHz | No | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 12-MSOP-EP |
|

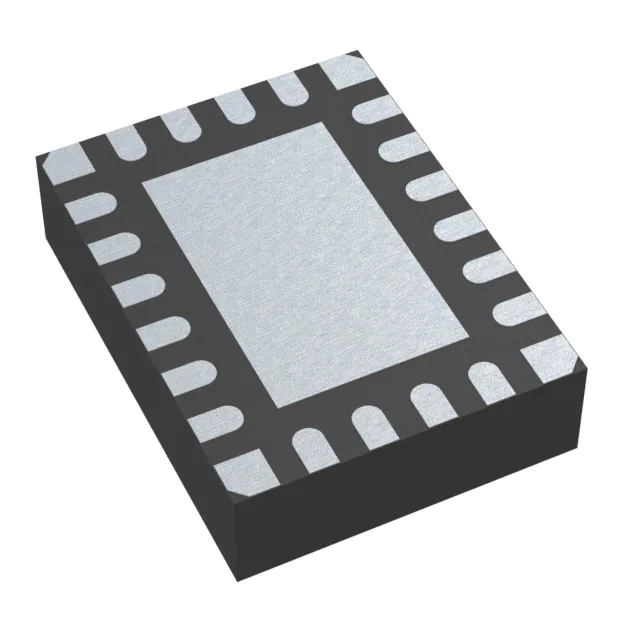

LT8636EV#PBFIC REG BUCK ADJ 5A 20LQFN |
518 |
|
Datasheet | - | 20-TFQFN Exposed Pad | Tray | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.4V | 42V | 0.97V | 42V | 5A | 200kHz ~ 3MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-LQFN (4x3) |
|
|
LT8637EV#PBFIC REG BUCK ADJ 5A 20LQFN |
494 |
|
Datasheet | - | 20-TFQFN Exposed Pad | Tray | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.4V | 42V | 0.97V | 42V | 5A | 200kHz ~ 3MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-LQFN (4x3) |
|
LT1766EGN#PBFIC REG BUCK ADJ 1.5A 16SSOP |
7,633 |
|
Datasheet | - | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 5.5V | 60V | 1.2V | 57.6V | 1.5A | 200kHz | No | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 16-SSOP |
