Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC3261IMSE#PBFIC REG CHARGE PUMP 100MA 12MSOP |
1,415 |
|
Datasheet | - | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Ratiometric | Positive or Negative | Charge Pump | Fixed | 1 | 4.5V | 32V | -Vin, Vin/2 | - | 100mA | 500kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-MSOP-EP |
|
LTC3310SEV#PBFIC REG BUCK ADJ 10A 18LQFN |
2,829 |
|
Datasheet | Silent Switcher®2 | 18-TFQFN Exposed Pad | Tray | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.25V | 5.5V | 0.5V | 5.5V | 10A | 2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 18-LQFN (3x3) |
|
LT8300IS5#TRMPBFIC REG FLYBACK 260MA TSOT23-5 |
5,254 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive or Negative, Isolation Capable | Flyback | - | 1 | 6V | 100V | - | - | 260mA | 7.5kHz ~ 750kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-5 |
|
|
LT8303IS5#TRMPBFIC REG FLYBCK ADJ 450MA TSOT23-5 |
3,130 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive, Isolation Capable | Flyback | Adjustable | 1 | 5.5V | 100V | - | - | 450mA | 7kHz ~ 350kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-5 |
|
LT3508EUF#TRPBFIC REG BUCK ADJ 1.4A DL 24QFN |
7,072 |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 2 | 3.7V | 36V | 0.8V | 35.28V | 1.4A | 920kHz ~ 1.06MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 24-QFN (4x4) |
|
LTC3130EMSE#TRPBFIC REG BUCK BST ADJ 600MA 16MSOP |
4,485 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.4V | 25V | 1V | 25V | 600mA | 1.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
|
LTC3130EMSE-1#PBFIC REG BCK BST PROG 600MA 16MSOP |
2,866 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Step-Up/Step-Down | Positive | Buck-Boost | Programmable | 1 | 2.4V | 25V | 1.8V, 3.3V, 5V, 12V | - | 600mA | 1.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LTC3130EUDC#TRPBFIC REG BUCK BST ADJ 600MA 20QFN |
707 |
|
Datasheet | - | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.4V | 25V | 1V | 25V | 600mA | 1.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-QFN (3x4) |
|
TPS544C25RVFTIC REG BUCK ADJ 30A 40LQFN |
11,628 |
|
Datasheet | SWIFT™ | 40-PowerLFQFN | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 18V | 0.5V | 5.5V | 30A | 200kHz ~ 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 40-LQFN-CLIP (7x5) |
|
LT3470HTS8#TRPBFIC REG BUCK ADJ 200MA TSOT23-8 |
8,092 |
|
Datasheet | - | SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 40V | 1.25V | 16V | 200mA | - | No | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TSOT-23-8 |
|
LT3479EDE#TRPBFIC REG BOOST ADJ 3A 14DFN |
2,972 |
|
Datasheet | - | 14-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up | Positive or Negative | Boost | Adjustable | 1 | 2.3V | 24V | 1.235V | 42V (Switch) | 3A (Switch) | 200kHz ~ 3.5MHz | No | -40°C ~ 85°C | - | - | Surface Mount | 14-DFN (4x3) |
|
|
LT3479EDE#PBFIC REG BOOST ADJ 3A 14DFN |
309 |
|
Datasheet | - | 14-WFDFN Exposed Pad | Tube | Active | Step-Up | Positive or Negative | Boost | Adjustable | 1 | 2.3V | 24V | 1.235V | 42V (Switch) | 3A (Switch) | 200kHz ~ 3.5MHz | No | -40°C ~ 85°C | - | - | Surface Mount | 14-DFN (4x3) |
|
LTC3313EV#PBFIC REG BUCK ADJ 15A 18LQFN |
1,238 |
|
Datasheet | - | 18-PowerTFQFN | Tray | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.25V | 5.5V | 0.5V | 5.5V | 15A | 500kHz ~ 5MHz | Yes | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 18-LQFN (3x3) |
|
LTC3112IFE#PBFIC REG BUCK BST ADJ 2.5A 20TSSOP |
623 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.7V | 15V | 2.5V | 14V | 2.5A | 750kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-TSSOP-EP |
|
LTC3631IMS8E#PBFIC REG BUCK ADJ 100MA 8MSOP |
3,096 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Step-Down | Positive or Negative | Buck | Adjustable | 1 | 4.5V | 45V | 0.8V | 45V | 100mA | - | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
|

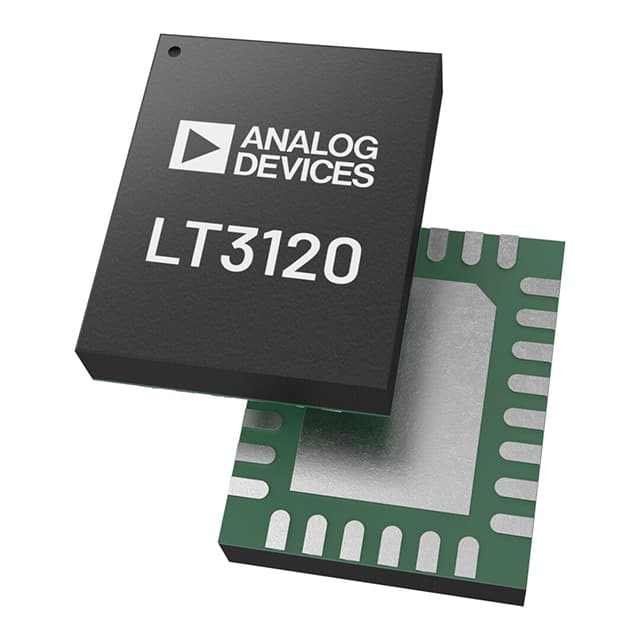

LT3120JV#PBFIC REG BUCK BOOST ADJ 9A 28LQFN |
303 |
|
Datasheet | - | 28-VFQFN Exposed Pad | Tray | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.5V | 26V | 0.8V | 24V | 9A | 400kHz ~ 2MHz | No | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-LQFN (5x4) |
|
LTC3631IDD#PBFIC REG BUCK ADJ 100MA 8DFN |
173 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tube | Active | Step-Down | Positive or Negative | Buck | Adjustable | 1 | 4.5V | 45V | 0.8V | 45V | 100mA | - | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (3x3) |
|
LTC3412AEUF#TRPBFIC REG BUCK ADJ 3A 16QFN |
5,028 |
|
Datasheet | - | 16-WQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.25V | 5.5V | 0.8V | 5V | 3A | 300kHz ~ 4MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-QFN (4x4) |
|
LT3480EDD#TRPBFIC REG BUCK ADJ 2A 10DFN |
4,972 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 36V | 0.79V | 20V | 2A | 200kHz ~ 2.4MHz | No | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (3x3) |
|
LTC3614EUDD#TRPBFIC REG BUCK ADJ 4A 24QFN |
3,839 |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.25V | 5.5V | 0.6V | 5.5V | 4A | 300kHz ~ 4MHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 24-QFN (3x5) |
