AC DC Converters, Offline Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching | Power (Watts) | Fault Protection | Control Features | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RAA2230214GSP#HA1IC OFFLINE SWITCH BUCK 7SOIC |
1,410 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Non-Isolated | Yes | 700V | Buck | 5.9 V | 6.5V | - | 43kHz | 1 W | Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 85°C (TA) | - | - | 7-SOIC | Surface Mount |
|
VIPER53SPTR-EIC OFFLINE SW FLBACK 10POWERSO |
9,742 |
|
Datasheet | VIPER™ | PowerSO-10 Exposed Bottom Pad | Tape & Reel (TR) | Active | Isolated | Yes | 620V | Flyback | 11.5 V | 8.4V ~ 19V | - | Up to 300kHz | 65 W | Current Limiting, Over Load, Over Temperature, Short Circuit | EN, Frequency Control, Soft Start | -40°C ~ 150°C (TC) | - | - | 10-PowerSO | Surface Mount |
|
|
VIPER53SP-EIC OFFLINE SW FLBACK 10POWERSO |
276 |
|
Datasheet | VIPER™ | PowerSO-10 Exposed Bottom Pad | Tube | Active | Isolated | Yes | 620V | Flyback | 11.5 V | 8.4V ~ 19V | - | Up to 300kHz | 65 W | Current Limiting, Over Load, Over Temperature, Short Circuit | EN, Frequency Control, Soft Start | -40°C ~ 150°C (TC) | - | - | 10-PowerSO | Surface Mount |
|
VIPERGAN50TRHV CONVERTER EMBEDDING ADVANCED |
162 |
|
Datasheet | - | 15-VQFN Exposed Pad | Tape & Reel (TR) | Active | Isolated | Yes | 650V | Flyback | - | 9V ~ 23V | 50% | 240kHz | 50 W | Current Limiting, Over Load, Over Temperature, Over Voltage | Soft Start | -40°C ~ 150°C (TJ) | - | - | 15-QFN (5x6) | Surface Mount |
|
|
VIPER53ESPTR-EIC OFFLINE SW FLBACK 10POWERSO |
1,303 |
|
Datasheet | VIPER™ | PowerSO-10 Exposed Bottom Pad | Tape & Reel (TR) | Active | Isolated | Yes | 620V | Flyback | 11.5 V | 8.4V ~ 19V | - | Up to 300kHz | 65 W | Current Limiting, Over Load, Over Temperature, Short Circuit | EN, Frequency Control, Soft Start | -40°C ~ 150°C (TC) | - | - | 10-PowerSO | Surface Mount |
|
UCC2810DWIC OFFLINE SW MULT TOP 16SOIC |
585 |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Isolated | No | - | Boost, Flyback, Forward | 11.3 V | 8.3V ~ 11V | 49% | 1MHz | - | - | Frequency Control, Sync | 0°C ~ 70°C (TA) | - | - | 16-SOIC | Surface Mount |
|
LT3798EMSE#TRPBFIC OFFLINE SWITCH FLYBACK 16MSOP |
10,910 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | - | 10V ~ 38V | - | 500Hz ~ 150KHz | - | - | - | -40°C ~ 125°C | - | - | 16-MSOP-EP | Surface Mount |
|
UCC35701DIC OFFLINE SW MULT TOP 14SOIC |
4 |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | Isolated | No | - | Boost, Buck, Flyback, Forward | 13 V | 9V ~ 15V | 99% | 700kHz | - | Current Limiting | Soft Start, Sync | -55°C ~ 150°C (TJ) | - | - | 14-SOIC | Surface Mount |
|
LT1244IS8#PBFIC OFFLINE SWITCH BUCK 8SOIC |
1,551 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Isolated | No | - | Buck | 16 V | 10V ~ 25V | 48% | Up to 500kHz | - | - | Frequency Control | -40°C ~ 100°C (TJ) | - | - | 8-SO | Surface Mount |
|
LT1738EG#PBFIC OFFLINE SW MULT TOP 20SSOP |
758 |
|
Datasheet | - | 20-SSOP (0.209", 5.30mm Width) | Tube | Active | Isolated | No | - | Boost, Cuk, Flyback | - | 2.55V ~ 20V | 93.5% | 20kHz ~ 250kHz | - | - | EN, Frequency Control, Soft Start, Sync | -40°C ~ 125°C (TJ) | - | - | 20-SSOP | Surface Mount |
|
|
LT3798MPMSE#PBFIC OFFLINE SWITCH FLYBACK 16MSOP |
64 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Isolated | No | - | Flyback | - | 10V ~ 38V | - | 500Hz ~ 150KHz | - | - | - | -55°C ~ 150°C | - | - | 16-MSOP-EP | Surface Mount |
|
UCC28722DBVRIC OFFLINE SW FLYBACK SOT23-6 |
10,775 |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 21 V | 9V ~ 35V | - | 650Hz ~ 80kHz | - | Current Limiting, Over Voltage | - | -40°C ~ 125°C (TJ) | - | - | SOT-23-6 | Surface Mount |
|
|
AL17051V5W5-7LED HV INT SWITCH SOT25 T&R 3K |
2,344 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Non-Isolated | Yes | 700V | Buck | 3.05 V | 2.7V ~ 6.5V | - | - | - | Current Limiting, Over Load, Over Temperature, Over Voltage, UVLO | Soft Start | -40°C ~ 105°C (TA) | - | - | SOT-25 | Surface Mount |
|
NCP1253BSN65T1GIC PWM CTLR OCP AUTO |
1,405 |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 18 V | 8.8V ~ 28V | 80% | 65kHz | - | Current Limiting, Open Loop, Over Voltage, Short Circuit | Frequency Control, Soft Start | 150°C (TJ) | - | - | 6-TSOP | Surface Mount |
|
VIPER06XSIC OFFLINE SWITCH MULT TOP 10SSO |
5,737 |
|
Datasheet | VIPer™ plus | 10-SOP (0.154", 3.90mm Width) | Tube | Active | Either | Yes | 800V | Buck, Flyback | 13 V | 11.5V ~ 23.5V | 70% | 30kHz | 8 W | Current Limiting, Open Loop, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | 10-SSOP | Surface Mount |
|
|
VIPER06LSIC OFFLINE SWITCH MULT TOP 10SSO |
3,545 |
|
Datasheet | VIPer™ plus | 10-SOP (0.154", 3.90mm Width) | Tube | Active | Either | Yes | 800V | Buck, Flyback | 13 V | 11.5V ~ 23.5V | 70% | 60kHz | 8 W | Current Limiting, Open Loop, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | 10-SSOP | Surface Mount |
|
AL17050WT-7IC OFFLINE SW STEP-DOWN SOT25 |
11,624 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Non-Isolated | Yes | 500V | Step-Down (Buck) | 2.4 V | 5.3V ~ 5.6V | - | - | - | Over Load, Open Loop, Short Circuit, Thermal Shutdown | - | -40°C ~ 105°C (TA) | - | - | SOT-25 | Surface Mount |
|
|
VIPER06HSIC OFFLINE SWITCH MULT TOP 10SSO |
5,591 |
|
Datasheet | VIPer™ plus | 10-SOP (0.154", 3.90mm Width) | Tube | Active | Either | Yes | 800V | Buck, Flyback | 13 V | 11.5V ~ 23.5V | 70% | 115kHz | 8 W | Current Limiting, Open Loop, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | 10-SSOP | Surface Mount |
|

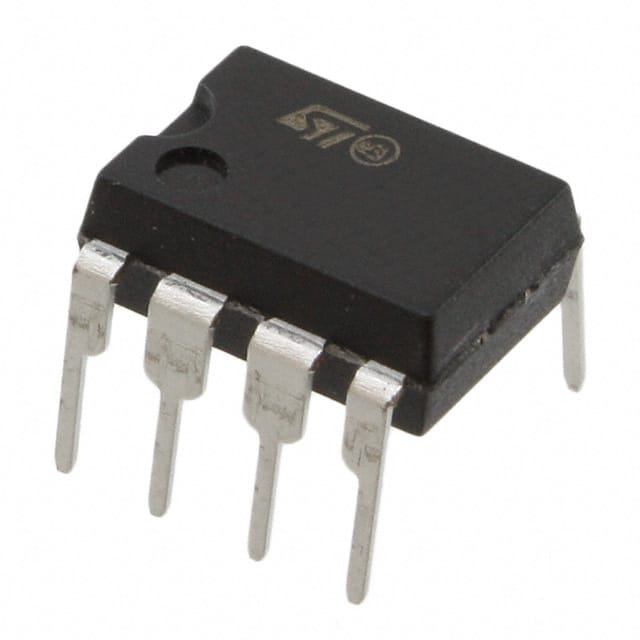

VIPER06LNIC OFFLINE SWITCH MULT TOP 7DIP |
2,000 |
|
Datasheet | VIPer™ plus | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Either | Yes | 800V | Buck, Flyback | 13 V | 11.5V ~ 23.5V | 70% | 60kHz | 8 W | Current Limiting, Open Loop, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | 7-DIP | Through Hole |
|
VIPER06HNIC OFFLINE SWITCH MULT TOP 7DIP |
1,469 |
|
Datasheet | VIPer™ plus | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Either | Yes | 800V | Buck, Flyback | 13 V | 11.5V ~ 23.5V | 70% | 115kHz | 8 W | Current Limiting, Open Loop, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | 7-DIP | Through Hole |
