AC DC Converters, Offline Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching | Power (Watts) | Fault Protection | Control Features | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCP1234BD65R2GIC OFFLINE SWITCH FLYBACK 7SOIC |
281 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 12 V | 9.5V ~ 28V | 80% | 65kHz | - | Current Limiting, Over Load, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | 7-SOIC | Surface Mount |
|
NCP1342ANACCED1R2GHIGH FREQUENCY QUASI-RESONANT FL |
2,536 |
|
Datasheet | - | 10-SOP (0.154", 3.90mm Width), 9 Leads | Tape & Reel (TR) | Active | Isolated | No | 700V | Flyback | 17 V | 9V ~ 28V | - | 500kHz | - | Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit | Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | 9-SOIC | Surface Mount |
|
|
NCP1342AMDCDAD1R2GIC OFFLINE SWITCH SOIC9NB |
1,109 |
|
Datasheet | - | 10-SOP (0.154", 3.90mm Width), 9 Leads | Tape & Reel (TR) | Active | Isolated | No | 700V | Flyback | 17 V | 9V ~ 28V | - | 500kHz | - | Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit | Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | 9-SOIC | Surface Mount |
|
ICE2QR2280ZXKLA1IC OFFLINE SWITCH FLYBACK 7DIP |
1,094 |
|
Datasheet | CoolMOS™, CoolSET™-Q1 | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 800V | Flyback | 18 V | 10.5V ~ 27V | 50% | 52kHz | 54 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | PG-DIP-7-4 | Through Hole |
|
UCC3804DTRIC OFFLINE SWITCH MULT TOP 8SOIC |
4,320 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | - | No | - | Boost, Buck, Flyback, Forward | 12.5 V | 8.3V ~ 12V | 49% | Up to 1MHz | - | Current Limiting | Frequency Control | -40°C ~ 85°C (TA) | - | - | 8-SOIC | Surface Mount |
|

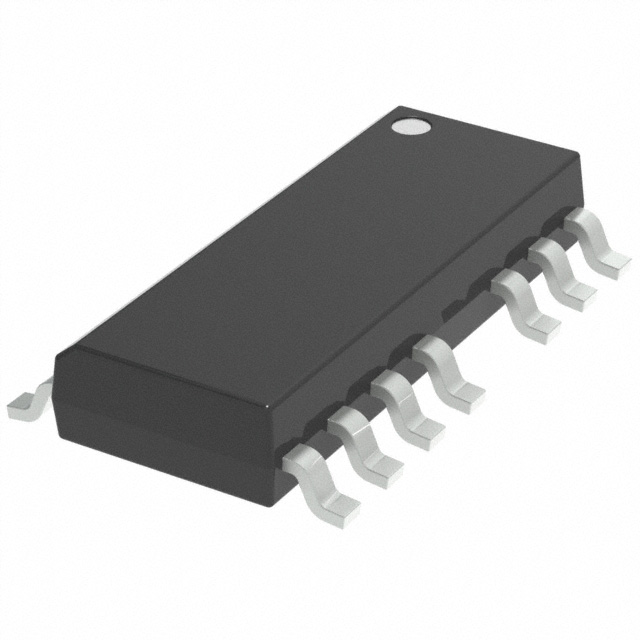

NCP1397ADR2GIC OFFLINE SW HALF-BRDG 16SOIC |
6,130 |
|
Datasheet | - | 16-SOIC (0.154", 3.90mm Width), 15 Leads | Tape & Reel (TR) | Active | Isolated | No | - | Half-Bridge | 10.5 V | 9.5V ~ 20V | 50% | 60kHz ~ 500kHz | - | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Frequency Control | -40°C ~ 125°C (TJ) | - | - | 16-SOIC | Surface Mount |
|
BM1P061FJ-E2IC OFFLINE SWITCH FLYBACK 8SOPJ |
4,249 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Either | No | - | Flyback | 13.5 V | 8.9V ~ 26V | 75% | 65kHz | - | Current Limiting, Over Voltage | - | -40°C ~ 85°C (TA) | - | - | 8-SOP-J | Surface Mount |
|
ICE3BR0665JXKLA1IC OFFLINE SWITCH FLYBACK 8DIP |
1,846 |
|
Datasheet | CoolMOS™, CoolSET™F3R | 8-DIP (0.300", 7.62mm) | Tube | Active | Isolated | Yes | 650V | Flyback | 18 V | 10.5V ~ 25V | 75% | 65kHz | 74 W | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | PG-DIP-8 | Through Hole |
|
L6699DTRIC OFFLINE SW HALF-BRIDGE 16SO |
11,963 |
|
Datasheet | - | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Half-Bridge | 10.7 V | 8.85V ~ 16V | 50% | 60kHz ~ 235kHz | - | Current Limiting | Soft Start | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
|
ICE3BR1765JXKLA1IC OFFLINE SWITCH FLYBACK 8DIP |
11,188 |
|
Datasheet | CoolMOS™, CoolSET™F3R | 8-DIP (0.300", 7.62mm) | Tube | Active | Isolated | Yes | 650V | Flyback | 18 V | 10.5V ~ 25V | 75% | 65kHz | 46 W | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 130°C (TJ) | - | - | PG-DIP-8 | Through Hole |
|
|
ICE3AR2280JZXKLA1IC OFFLINE SWITCH FLYBACK 7DIP |
1,462 |
|
Datasheet | CoolMOS™, CoolSET™F3R | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 800V | Flyback | 17 V | 10.5V ~ 27V | 75% | 100kHz | 43 W | Over Load, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | PG-DIP-7-1 | Through Hole |
|
AP3928S-13ACDC PSR SWITCHER SO-8 T&R 4K |
10,524 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Non-Isolated | Yes | 700V | Buck | 7.9 V | 7.9V ~ 19V | - | - | 10 W | Current Limiting, Open Loop, Over Load, Over Temperature, Short Circuit | Soft Start | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | 8-SO | Surface Mount |
|
TEA1751T/N1,518IC OFFLINE SWITCH FLYBACK 16SO |
3,993 |
|
Datasheet | GreenChip™ III | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | 650V | Flyback | 22 V | 15V ~ 38V | - | 100kHz ~ 150kHz | 250 W | Current Limiting, Open Loop, Over Power, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|

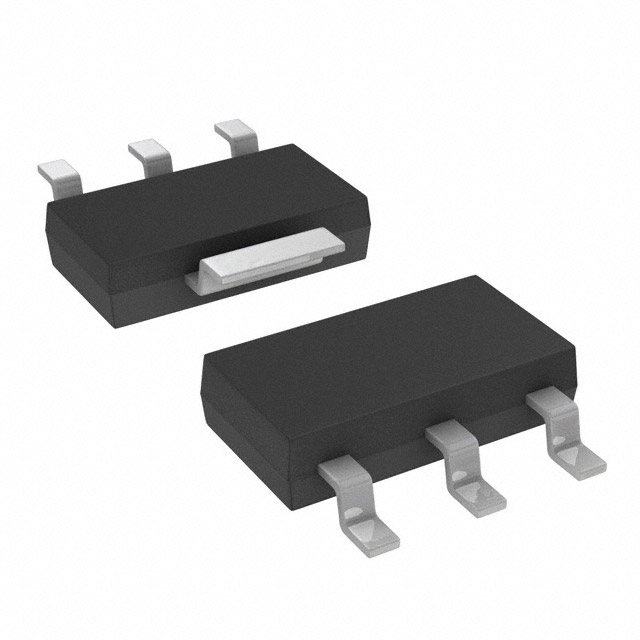

NCP1072STAT3GIC OFFLINE SWITCH SOT223-4 |
4,000 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Isolated | Yes | 700V | Flyback | 8.2 V | 6.3V ~ 10V | 69% | 65kHz | 19 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Soft Start | 150°C (TJ) | - | - | SOT-223 (TO-261) | Surface Mount |
|
|
L6598D013TRIC OFFLINE SW HALF-BRIDGE 16SO |
4,342 |
|
Datasheet | - | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Half-Bridge | 10.7 V | 8V ~ 16.6V | 50% | 400kHz | - | - | EN | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
|
L6598DIC OFFLINE SW HALF-BRIDGE 16SO |
1,674 |
|
Datasheet | - | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Isolated | No | - | Half-Bridge | 10.7 V | 8V ~ 16.6V | 50% | 400kHz | - | - | EN | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
|
UCC3808DTR-1IC OFFLINE SW PUSH-PULL 8SOIC |
1,550 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Push-Pull | 12.5 V | 8.3V ~ 14V | 50% | 1MHz | - | - | Frequency Control | -55°C ~ 150°C (TJ) | - | - | 8-SOIC | Surface Mount |
|
|
UCC2808DTR-1IC OFFLINE SW PUSH-PULL 8SOIC |
929 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Push-Pull | 12.5 V | 8.3V ~ 14V | 50% | 1MHz | - | - | Frequency Control | -55°C ~ 150°C (TJ) | - | - | 8-SOIC | Surface Mount |
|

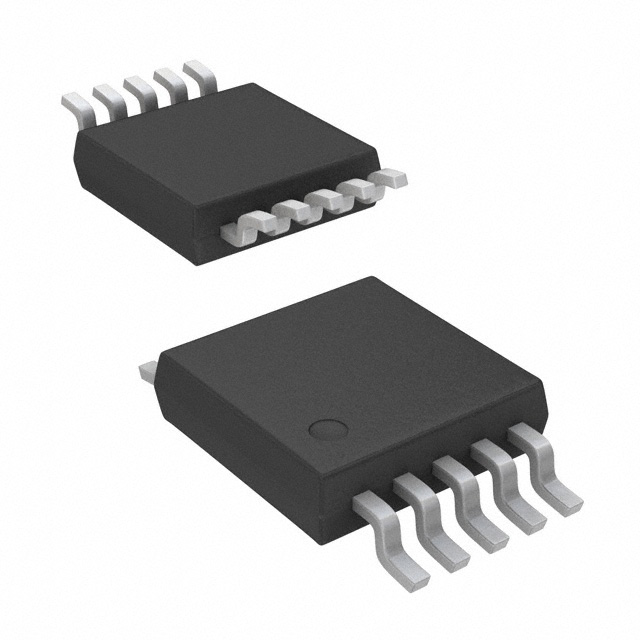

NCP12700BDNR2GIC OFFLINE SWITCH FLYBACK 10MSOP |
5,675 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | - | 9V ~ 20V | 80% | 100kHz ~ 1MHz | - | Current Limiting, Open Loop, Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit | EN, Frequency Control, Soft Start, Sync | -40°C ~ 125°C (TJ) | - | - | 10-MSOP | Surface Mount |
|
VIPER53EDIP-EIC OFFLINE SWITCH FLYBACK 8DIP |
207 |
|
Datasheet | VIPER™ | 8-DIP (0.300", 7.62mm) | Tube | Active | Isolated | Yes | 620V | Flyback | 11.5 V | 8.4V ~ 19V | - | Up to 300kHz | 50 W | Current Limiting, Over Load, Over Temperature, Short Circuit | EN, Frequency Control, Soft Start | -40°C ~ 150°C (TC) | - | - | 8-DIP | Through Hole |
