Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FLEX-14-10-15SWITCH REED SPST-NO 350MA 140V |
12,943 |
|
Datasheet | FLEX-14 | Box | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.55 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
59165-1-S-00-DSWITCH REED SPST-NO 350MA 140V |
562 |
|
Datasheet | 59165 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Surface Mount | Gull Wing | 0.795" (20.19mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | 0.099" (2.52mm) | -40°C ~ 105°C | 0.3 pF | 800mA (DC) |
|
MDSR-7-10-20SWITCH REED SPST-NO 350MA 140V |
24,346 |
|
Datasheet | MDSR-7 | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) | - | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
MDSR-7-10-25SWITCH REED SPST-NO 350MA 140V |
16,974 |
|
Datasheet | MDSR-7 | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) | - | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
MDSM-4R-12-18SWITCH REED SPST-NO 350MA 140V |
69,114 |
|
Datasheet | MDSM-4 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 12 ~ 18AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
59170-1-S-00-DSWITCH REED SPST-NO 350MA 140V |
27,196 |
|
Datasheet | 59170 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 0.5 ms | Surface Mount | Gull Wing | 0.640" (16.26mm) | 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm) | 0.095" (2.41mm) | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
59170-1-U-00-DSWITCH REED SPST-NO 350MA 140V |
3,944 |
|
Datasheet | 59170 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 0.5 ms | Surface Mount | Gull Wing | 0.640" (16.26mm) | 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm) | 0.095" (2.41mm) | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
MDSM-10R-20-25SWITCH REED SPST-NO 350MA 140V |
48,682 |
|
Datasheet | MDSM-10 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.615" (15.62mm) | 0.071" Dia x 0.400" L (1.80mm x 10.16mm) | 0.079" (2.00mm) | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
59165-1-S-00-ASWITCH REED SPST-NO 350MA 140V |
3,246 |
|
Datasheet | 59165 | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | - | -40°C ~ 105°C | 0.3 pF | 800mA (DC) |
|
59050-010SWITCH REED SPST-NO 350MA 140V |
4,400 |
|
Datasheet | 59050 | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Through Hole | PC Pin | 0.900" (22.86mm) | 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm) | 0.180" (4.57mm) | -40°C ~ 105°C | 0.3 pF | 1A (DC) |
|
MISM-7R-6-10SWITCH REED SPST-NO 180MA 120V |
5,594 |
|
Datasheet | MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 6 ~ 10AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|

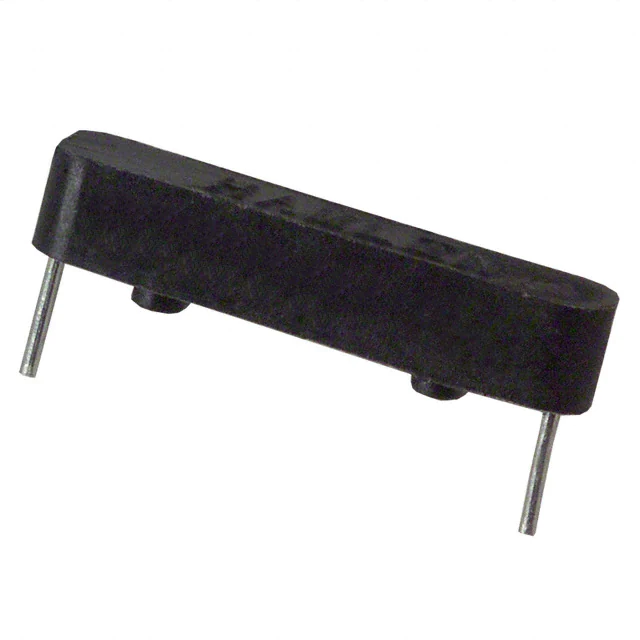

59045-010SWITCH REED SPST-NO 350MA 140V |
5,191 |
|
Datasheet | 59045 | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Through Hole | PC Pin | 0.700" (17.78mm) | 0.700" L x 0.130" W x 0.170" H (17.78mm x 3.30mm x 4.32mm) | 0.170" (4.33mm) | -40°C ~ 105°C | 0.3 pF | 1A (DC) |
|
MRPR-20-17-23SWITCH REED SPST-NO 1.1A 265V |
4,361 |
|
Datasheet | MRPR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 17 ~ 23AT | - | 1.1A (AC), 1.5A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 3A (DC) |
|
MDRR-DT-15-20-FSWITCH REED SPDT 180MA 120V |
3,797 |
|
Datasheet | MDRR-DT | Bulk | Active | Glass Body Reed | SPDT | 15 ~ 20AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.034" (51.66mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
MDRR-DT-30-35-USWITCH REED SPDT 180MA 120V |
1,186 |
|
Datasheet | MDRR-DT | Bulk | Active | Glass Body Reed | SPDT | 30 ~ 35AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.066" (52.48mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
MDRR-DT-15-25-FSWITCH REED SPDT 180MA 120V |
1,329 |
|
Datasheet | MDRR-DT | Bulk | Active | Glass Body Reed | SPDT | 15 ~ 25AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.034" (51.66mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
MDSM-DTR-20-25SWITCH REED SPDT 180MA 120V |
7,141 |
|
Datasheet | MDSM-DT | Tape & Reel (TR) | Active | Glass Body Reed | SPDT | 20 ~ 25AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Surface Mount | Gull Wing | 1.000" (25.40mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | 0.101" (2.56mm) | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
DRS-DTH-75-80SWITCH REED SPDT 350MA 350V |
875 |
|
Datasheet | DRS-DTH | Bulk | Active | Glass Body Reed | SPDT | 75 ~ 80AT | - | 350mA (AC), 500mA (DC) | 350 V | 500 V | 30W | 4.5 ms | 7 ms | Through Hole | Axial | 3.375" (85.73mm) | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) | - | -20°C ~ 125°C | 2 pF | 3A (DC) |
|
|
FLEX-14-20-25SWITCH REED SPST-NO 350MA 140V |
34,134 |
|
Datasheet | FLEX-14 | Box | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.55 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
MDCG-4-17-23SWITCH REED SPST-NO 350MA 140V |
936 |
|
Datasheet | MDCG-4 | Bulk | Active | Glass Body Reed | SPST-NO | 17 ~ 23AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
