LED Indication - Discrete
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Configuration | Lens Color | Lens Transparency | Millicandela Rating | Lens Style | Lens Size | Voltage - Forward (Vf) (Typ) | Current - Test | Viewing Angle | Mounting Type | Wavelength - Dominant | Wavelength - Peak | Features | Grade | Qualification | Supplier Device Package | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HLMT-QH00-T0021LED RED CLEAR DOME LENS TYPE SMD |
0 |
|
Datasheet | SunPower | 2-SMD, Yoke Bend | Tape & Reel (TR) | Active | Red | Standard | Colorless | Clear | 500mcd | Round with Domed Top | 1.78mm Dia | 2V | 20mA | 15° | Surface Mount | 615nm | 621nm | - | - | - | Dome Lens Type | 1.99mm L x 2.21mm W |
|
SML512BC5TT86LED BLUE CLEAR 0603 SMD |
0 |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Blue | Standard | Colorless | Clear | 16mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 2.9V | 5mA | - | Surface Mount | 470nm | - | - | - | - | 1608 (0603) | 1.60mm L x 0.80mm W |
|
HLMP-HG64-VY0DDLED RED DIFFUSED 5MM OVAL T/H |
0 |
|
Datasheet | - | Radial | Cut Tape (CT) | Active | Red | Standard | Red | Diffused | 1775mcd | Oval with Domed Top | 5.20mm x 3.80mm | 2.1V | 20mA | 100°, 40° | Through Hole | 626nm | 634nm | - | - | - | 5mm Oval | - |
|
HLMP-HG65-VY0DDLED RED DIFFUSED 5MM OVAL T/H |
0 |
|
Datasheet | - | Radial | Cut Tape (CT) | Active | Red | Standard | Red | Diffused | 1775mcd | Oval with Domed Top | 5.20mm x 3.80mm | 2.1V | 20mA | 100°, 40° | Through Hole | 626nm | 634nm | - | - | - | 5mm Oval | - |
|
|
MV8G03LED BLUE CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Bulk | Obsolete | Blue | Standard | Colorless | Clear | 3500mcd | Round with Domed Top | 5mm, T-1 3/4 | 3.6V | 20mA | 20° | Through Hole | 505nm | 502nm | - | - | - | T-1 3/4 | - |
|
|
MV8R01LED GREEN CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Bulk | Obsolete | Green | Standard | Colorless | Clear | 1900mcd | Round with Domed Top | 5mm, T-1 3/4 | 3.6V | 20mA | 20° | Through Hole | 525nm | 520nm | - | - | - | T-1 3/4 | - |
|
|
MV8R03LED GREEN CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Bulk | Obsolete | Green | Standard | Colorless | Clear | 3500mcd | Round with Domed Top | 5mm, T-1 3/4 | 3.6V | 20mA | 20° | Through Hole | 525nm | 520nm | - | - | - | T-1 3/4 | - |
|
|
MV8U01LED BLUE CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Bulk | Obsolete | Blue | Standard | Colorless | Clear | 340mcd | Round with Domed Top | 5mm, T-1 3/4 | 3.6V | 20mA | 20° | Through Hole | 470nm | 465nm | - | - | - | T-1 3/4 | - |
|
|
MV8U03LED BLUE CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Bulk | Obsolete | Blue | Standard | Colorless | Clear | 650mcd | Round with Domed Top | 5mm, T-1 3/4 | 3.6V | 20mA | 20° | Through Hole | 470nm | 465nm | - | - | - | T-1 3/4 | - |
|

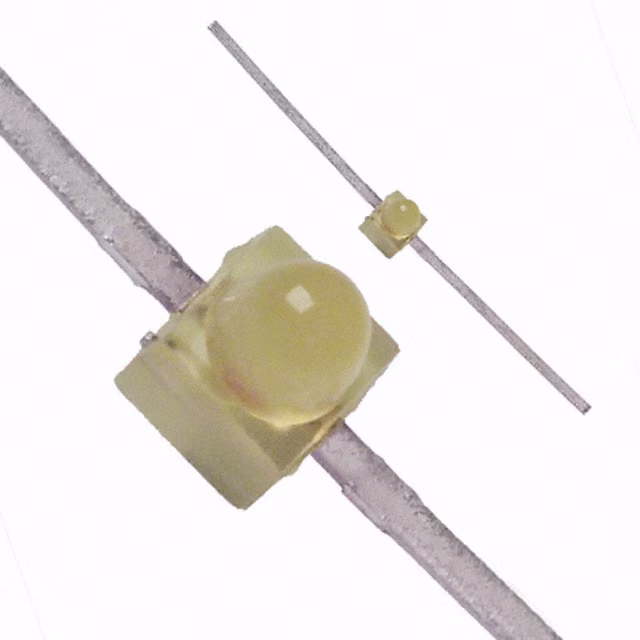

HLMP-7019LED YL DIFFUSED AXIAL T/H AXIAL |
0 |
|
Datasheet | HLMP-70xx | Axial, Flat Leads | Bulk | Active | Yellow | Standard | Yellow | Diffused | 0.6mcd | Round with Domed Top | 1.91mm Dia | 2V | 2mA | 90° | Through Hole, Axial | 585nm | 583nm | - | - | - | Axial | 2.08mm L x 2.21mm W |
|
|
SML522BUWT86LED BLUE/RED DIFFUSED SMD |
0 |
|
Datasheet | SML-52 | 0605 (1613 Metric) | Tape & Reel (TR) | Obsolete | Blue, Red | Independent | White | Diffused | 22mcd Blue, 21mcd Red | Rectangle with Flat Top | 1.10mm x 1.30mm | 2.9V Blue, 1.9V Red | 5mA Blue, 5mA Red | - | Surface Mount | 470nm Blue, 624nm Red | - | - | - | - | - | 1.50mm L x 1.30mm W |
|
ASMB-BTE1-0B332LED RGB DIFFUSED 4PLCC SMD |
0 |
|
Datasheet | - | 4-PLCC | Tape & Reel (TR) | Obsolete | Red, Green, Blue (RGB) | Common Anode | White | Diffused | 630mcd Red, 1500mcd Green, 350mcd Blue | Round with Flat Top | 2.40mm Dia | 2.1V Red, 3.1V Green, 3.1V Blue | 20mA Red, 20mA Green, 20mA Blue | 110° | Surface Mount | 622nm Red, 529nm Green, 469nm Blue | 629nm Red, 521nm Green, 464nm Blue | - | - | - | 4-PLCC | 3.20mm L x 2.80mm W |
|
HLMP-EL15-VY0DDLED AMBER CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Cut Tape (CT) | Active | Amber | Standard | Colorless | Clear | 8100mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.02V | 20mA | 15° | Through Hole | 590nm | 592nm | - | - | - | T-1 3/4 | - |
|
HLMP-EL1B-Z1KDDLED AMBER CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Cut Tape (CT) | Active | Amber | Standard | Colorless | Clear | 16500mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | 20mA | 15° | Through Hole | 590nm | 594nm | - | - | - | T-1 3/4 (5mm) | - |
|
|
HLMP-EL1B-Z1LDDLED AMBER CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Cut Tape (CT) | Active | Amber | Standard | Colorless | Clear | 16500mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | 20mA | 15° | Through Hole | 590nm | 594nm | - | - | - | T-1 3/4 | - |
|
|
AREQ-90C0-00000LED PLCC-4 3528 SMD |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HLMP-6820-F0012LED GREEN DIFFUSED GULL WING SMD |
0 |
|
Datasheet | HLMP-6xxx | 2-SMD, Gull Wing | Bulk | Active | Green | Standard | - | Diffused | 2mcd | Round with Domed Top | 1.78mm Dia | 5V | 10mA | 90° | Surface Mount | 569nm | 565nm | - | - | - | Gull Wing | 2.08mm L x 2.21mm W |
|
|
HLMP-6620-F001SLED RED DIFFUSED AXIAL T/H |
0 |
|
Datasheet | HLMP-6xxx | Axial, Right Angle Bend (2.54mm Center) | Bulk | Active | Red | Standard | - | Diffused | 2mcd | Round with Domed Top | 1.78mm Dia | 5V | 10mA | 90° | Through Hole | 626nm | 635nm | - | - | - | Axial | 2.08mm L x 2.21mm W |
|
ALMD-CB3D-RT002LAMP 5MM INGAN BLUE 30DEG SMD |
0 |
|
Datasheet | - | 4-SMD, Gull Wing | Cut Tape (CT) | Obsolete | Blue | - | - | - | 2350mcd | Round with Domed Top | 4.20mm Dia | 3.2V | 20mA | 30° | Surface Mount | 470nm | 464nm | - | - | - | 4-SMD | 4.20mm L x 4.20mm W |
|

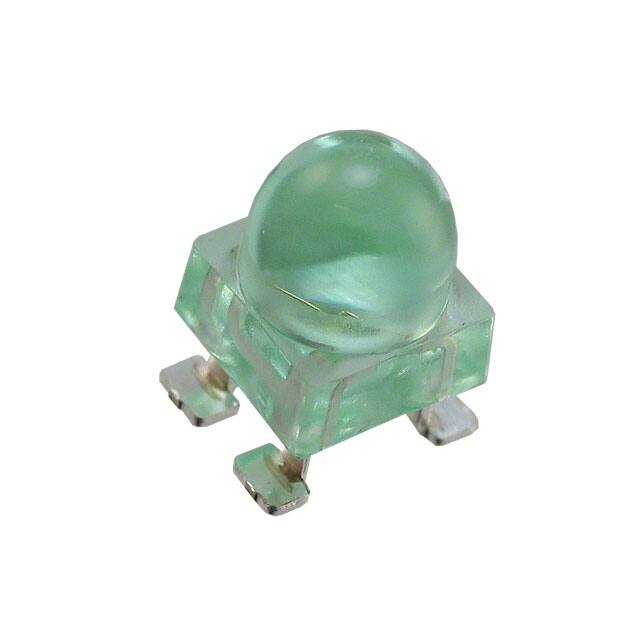

ALMD-CM3D-WY002LED GREEN CLEAR 4SMD |
0 |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Green | Standard | Green | Clear | 15150mcd | Round with Domed Top | - | 3.2V | 20mA | 30° | Surface Mount | 525nm | 516nm | - | - | - | 4-SMD | 4.20mm L x 4.20mm W |
